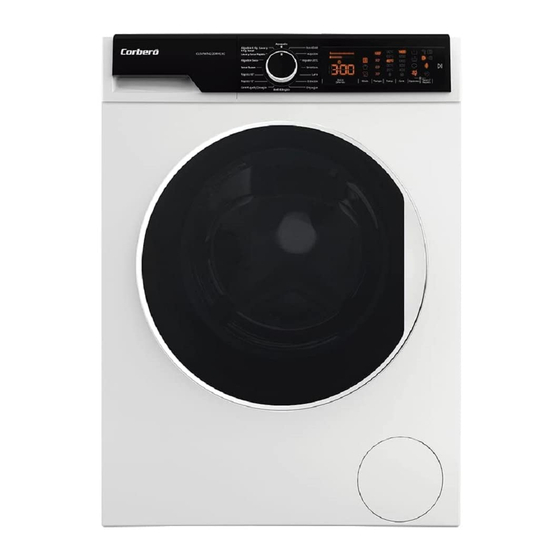

CORBERO CLSV961422DRYEXC User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Washer Dryer / User Manual
CLSV961422DRYEXC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLSV961422DRYEXC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CORBERO CLSV961422DRYEXC

Summary of Contents for CORBERO CLSV961422DRYEXC

  • Page 1 Washer Dryer / User Manual CLSV961422DRYEXC...
  • Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1 General Safety Warnings ....................2 1.2 During Use ........................8 1.3 Packaging and Environment...................9 1.4 Savings Information ......................9 2. TECHNICAL SPECIFICATIONS ..................11 3. OVERVIEW OF YOUR MACHINE ................. .12 3.1 General Appearance.....................12 4. INSTALLATION .......................12 4.1 Removing the Transit Bolts...................12 4.2 Adjusting the Feet / Adjusting Adjustable Stays............13 4.3 Electrical Connection ....................13...

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS Operating voltage / frequency (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0. 1Mpa Total power (W) 2200 Maximum washing capacity (dry laundry) (kg) Maximum drying capacity (kg) • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.

  • Page 5: General Safety Warnings

    • Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision. NOTE: For a softcopy of this user manual, please contact the following address: “washingmachine@standardtest.info”. In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door.
  • Page 6 • The necessary ambient temperature for operation of your Washer Dryer is 15-25 °C. • Where the temperature is below 0 °C, hoses may split or the electronic card may not operate correctly. • Please ensure that garments loaded into your Washer Dryer are free from foreign objects such as nails, needles, lighters and coins.
  • Page 7 or drying programme you have chosen. • In the event of a fault, unplug your Washer Dryer and switch off the water supply. Do not attempt to repair your Washer Dryer yourself. Repairs should only be undertaken by an approved service agent.
  • Page 8 injuries. RISK OF BURNS • Do not touch the door, drain hose or any discharged water while your Washer Dryer in running. The high temperatures involved pose a burn risk. • Open the door fully after the drying process. Do not touch the door glass. It will reach high temperatures and pose a burn risk.
  • Page 9 Fire Risk • Do not keep flammable or explosive liquids near your machine. • Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
  • Page 10 • Please ensure that garments loaded into your Washer Dryer are free from foreign objects such as nails, needles, lighters, matches and coins. Fall and Injury Risk • Do not climb on your Washer Dryer. • Make sure hoses and cables do not cause a trip hazard.

  • Page 11: During Use

    contact with skin or eyes. Keep cleaning materials out of reach of children. 1.2 During Use • Do not allow pets near the machine. • Please ensure that you have removed all of the packaging materials and protective tape from the outside of your Washer Dryer, inside the drum and inside the detergent drawer before using.

  • Page 12: Packaging And Environment

    NOTE: Specifications for the machine may vary depending on the product purchased. 1.3 Packaging and Environment DISPOSE OF PACKAGING AND YOUR OLD MACHINE RESPONSIBLY Removal of packaging materials Packaging materials protect your machine from any damage that may occur during transportation. Please recycle the packaging materials.
  • Page 13 1.5 TwinjeT sysTem Detergent water in your machine will be circulated with 2 water injection mechanisms and a mixing system via twinjet system. Circulated detergent water will be injected over your laundries, which allows a better washing performance. Twinjet system will help you wash higher amount of laundries in a shorter time with a better washing performance, guaranteeing less energy and water consumption.

  • Page 14: Technical Specifications

    2. TECHNICAL SPECIFICATIONS Maximum washing capacity (dry laundry) (kg) * Maximum drying capacity (kg) 1400 Spin speed (rpm) Number of programmes Operation voltage / Frequency (v/hz) 220-240 / 50 Maximum: 1 Water pressure (mpa) Minimum: 0.1 Dimensions (HxWxD) (mm) 845x597x582 * You should not put dry laundry in your machine for drying.

  • Page 15: Overview Of Your Machine

    3. OVERVIEW OF 7. Power Cord YOUR MACHINE 8. Drain Hose 9. Transport Screws 10. Adjustable Feet 11. Plastic Drain Hose Holder: (Do not remove the holder; the operation of the machine will be affected). Start/ Pause Time Save+/ Delay Temp.

  • Page 16: Adjusting The Feet / Adjusting Adjustable Stays

    4.2 Adjusting the Feet / • The mains cord of your washing Adjusting Adjustable Stays machine is equipped with an earthed plug. This plug should always be inserted to an earthed socket of 10 amps. • If you do not have a suitable socket and fuse conforming with this, please ensure the work is carried out by a qualified electrician.

  • Page 17: Water Discharge Connection

    the red water inlet valve (if applicable). • Never attempt to extend the water drain hose. • Hand tighten the connections. If in any doubt, consult a qualified plumber. • Do not put the water drain hose from your machine into a container, bucket or •...

  • Page 18: Detergent Drawer (*)

    5.1 Detergent Drawer (*) 5.2 Sections Main wash detergent compartment: This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside your machine. (*) Fabric conditioner, starch, detergent compartment: This compartment is for softeners, conditioners or starch.

  • Page 19: Program Dial

    6. USING YOUR 5.3 Program Dial WASHING MACHINE 6.1 Preparing Your Laundry • To select the desired programme, turn the programme dial either clockwise or anti-clockwise until the marker on the programme dial points to the chosen programme. • Make sure that the programme dial is set exactly to the programme you want.

  • Page 20: Putting Laundry In The Machine

    curtains or place them in a washing net The following table shows approximate or bag. weights of typical laundry items: 6. Reverse textiles such as pants, LAUNDRY TYPE WEIGHT (gr) knitwear, t-shirts and sweat shirts. Towel 7. Wash socks, handkerchiefs and other small items in a washing net.

  • Page 21: Operating Your Machine

    6.7 Auxiliary Functions • Put softener in the middle compartment of the detergent drawer. Do not exceed the MAX level. • Thick softeners may cause clogging of the drawer and should be diluted. Start/ Pause • It is possible to use fluid detergents in Time Save+/ all programmes without a pre-wash.
  • Page 22 • Press the delay key until you reach the ” symbol is displayed. time after which you want the machine to start the washing cycle. • Hanger dry “ ”: 135 min. : Recommended for laundry that requires • If you have skipped the delay time you would like to set, you can keep pressing hanging.
  • Page 23 2.1 Drying option selection: SELECTABLE/ DRYING FACTORY PROGRAMME SELECTABLE OPTIONS PROFILE PRESET SELECTABLE Eco 40-60 Cotton Dry Option 1 Option 2 Option 3 Cotton Cotton Dry Option 1 Option 2 Option 3 Cotton 20°C Cotton Dry Option 1 Option 2 Synthetics Gentle Dry Option 1...
  • Page 24 3. Drying With Duration selection : the selected program’s maximum temperature will be displayed on the washing water temperature display. • You can press the washing water temperature setting key to decrease Start/ Pause the washing water temperature gradually between the maximum Time Save+/ Delay...
  • Page 25 6. Options 6.2 Extra rinse auxiliary function Start/ Pause Start/ Pause Time Save+/ Delay Temp. Spin Options Option Speed Time Save+/ Delay Temp. Spin Options Option Speed You can use auxiliary functions to make the best washing selection for your You can use this auxiliary function for laundry.
  • Page 26 6.4 Anti-allergy auxiliary function Quick Wash auxiliary function: If you select this auxiliary function, your machine will shorten the duration of the washing program. (It is recommended to load the machine with half or less than half of the capacity of the selected Start/ washing program.) To enable this Pause...

  • Page 27: Child Lock

    6.8 Child Lock • If you want to cancel a running program, turn the program knob to The Child Lock function allows you to “CANCEL” position. Your machine lock the buttons so that the wash cycle will stop washing process and the you have chosen cannot be changed program will be cancelled.

  • Page 28: Programme Table

    7. PROGRAMME TABLE Programme Eco 40-60 Cotton Cotton 20°C Selectable washing 40°*, 60° 60°*, 90°, 60°, 40° 20°*, (Cold water) temperatures (°C) Maximum washing/drying 9.0 / 6.0 9.0 / 6.0 4.5 / 4.5 capacity (kg) Selectable spin (No spin), 400, 600, 800, (No spin), 400, 600, 800, (No spin), 400, 600, 800, speed (rev /...
  • Page 29 Programme Rinse Allergy Safe Spin / Drain Selectable washing (Cold wash)* 60°*, 40°, 30°, (Cold wash) (Cold wash)* temperatures (°C) Maximum washing/drying 9.0 / 6.0 4.5 / 4.5 9.0 / 6.0 capacity (kg) Selectable spin (No spin), 400, 600, 800, (No spin),400, 600, 800, speed (rev / (No spin),400, 600, 800*...
  • Page 30 Programme Cotton Dry Quick Wash & Dry Cotton Wash & Dry Selectable washing 40°*, 90°, 60°, 40°, 30°, 30°*, (Cold wash) temperatures (Cold wash) (°C) Maximum 0.5 / 0.5 kg (3 shirts) washing/drying 6.0 / 6.0 capacity (kg) Selectable spin speed (rev / 800* 1400*...
  • Page 31 • For household washer-dryers; the wash and dry cycle is able to clean normally soiled cotton laundry declared to be washable at 40°C or 60°C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard, and that this programme is used to assess the compliance with the EU ecodesign legislation.
  • Page 32 Remaining Water max. Moisture Content Energy Consumption Programme Duration Consumption Temperature kWh/cycle Hours:Minutes Litres/Cycle °C 1400 Rpm 2,20 03:21 1,05 03:55 1,17 0,54 0,28 03:49 02:54 02:54 0,72 01:50 0,85 01:00 0,22 01:43 4,63 2,46 09:00 05:00 EN - 29...

  • Page 33: Important Informations

    7.1 Important Informations • Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage. • We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning please use Drum Clean programme.

  • Page 34: Cleaning And Maintenance

    8. CLEANING AND 8.2 Water Inlet Filters Water inlet filters prevent dirt and foreign MAINTENANCE materials from entering your machine. We recommend that these filters are cleaned when your machine is unable 8.1 Warning to receive sufficient water, although your water supply is on and the tap is open.

  • Page 35: Pump Filter

    8.3 Pump Filter that the mountings inside the cover meet the holes on the front panel side. 13. Close the filter cover. WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance.

  • Page 36: Body / Drum

    9. Body / Drum softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 1. Body Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth. 2.

  • Page 37: Troubleshooting

    10. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. •...
  • Page 38 FAULT POSSIBLE CAUSE TROUBLESHOOTING Your washing is too dirty for the Use the information in the programme tables to programme selected. select the most appropriate programme. Unsatisfactory washing Amount of detergent used Use the amount of detergent as instructed on the result.

  • Page 39: Automatic Fault Warnings And What To Do

    11. AUTOMATIC FAULT WARNINGS AND WHAT TO DO Your Washing Machine is equipped with a built-in fault detection system, indicated by a combination of flashing wash operation lights. The most common failure codes are shown below. TROUBLE CODE POSSIBLE FAULT WHAT TO DO Shut the door properly until you hear a click.
  • Page 40 The minimum period which must supply the spare parts for the household washer-dryer is 10 years. WWW.CORBERO.ES Servicruz SL Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona Telf. 911 08 08 08 servicruz.sat@servicruz.es The minimum period which must supply the spare parts for the household washing machine is 10 years.
  • Page 41 Sevicio Técnico O cial: Horario de atención Lunes a Viernes de 9h00 a 19h00. Teléfono de contacto_ 911 08 08 08 Mail de contacto_ info@corbero.es web_ www.corbero.es Dirección de Servicio técnico oficial_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona...
  • Page 42 Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is “RD 7/2021” 911 08 08 08 Official Technical Service: Hours of operation Monday to Friday from9h00 a 19h00. Telephone contact_ 911 08 08 08 Contact email_ info@corbero.es web_ www.corbero.es Official Technical Service Address_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona...
