ergochair ERGO-RS 5215988 Quick Start Manual

Ergo-RS™ Creeper
Copyright. Copyright © 2022 BendPak Inc. All rights reserved. You may make copies of this document if you agree that: you will
give full attribution to BendPak Inc., you will not make changes to the content, you do not gain any rights to this content, and you
will not use the copies for commercial purpose.
Trademarks. Ergochair and the Ergochair logo, BendPak and the BendPak logo are registered trademarks of BendPak Inc. All other
company, product, and service names are used for identification only. All trademarks and registered trademarks mentioned in
this Manual are the property of their respective owners.
Limitations. Every effort has been made to ensure complete and accurate instructions are included in this Guide. However,
product updates, revisions, and/or changes may have occurred since this Guide was published. BendPak reserves the right to
change any information in this Guide without incurring any obligation for equipment previously or subsequently sold. BendPak
is not responsible for typographical errors in this Guide. You can always find the latest version of the Quick Start Guide for your
product on the BendPak website.
Warranty. The BendPak warranty is more than a commitment to you: it is also a commitment to the value of your new product.
Contact your nearest BendPak dealer or visit www.bendpak.com/support/warranty for full warranty details.
Go to bendpak.com/support/register-your-product/ and fill out the online form to register your product (be sure to click Submit).
Safety. Your Ergo-RS Creeper was designed and manufactured with safety in mind. However, your safety also depends on proper
training and thoughtful operation. Do not install, operate, maintain, or repair the unit without reading and understanding this
Quick Start Guide and the labels on the unit; do not use the Ergo-RS Creeper unless you can do so safely!
Please read this entire guide prior to use. Failure to follow the instructions and safety precautions in this
guide can result in serious injury. Make sure all other operators also read this guide. By proceeding with setup
and operation, you agree that you fully understand the contents of this guide and assume full responsibility
for the use of this product.
California Proposition 65: This product can expose you to chemicals including styrene and vinyl chloride,
which are on the list of over 900 chemicals identified by the State of California to cause cancer, birth defects,
or other reproductive harm. Always use this product in accordance with BendPak Ergochair's instructions. For
more information, visit www.p65warnings.ca.gov.

Ergo-RS Product Description and Accessories

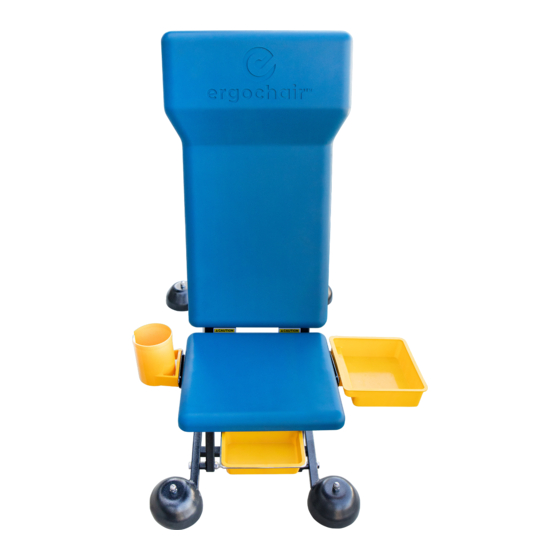

The Ergo-RS Creeper (5215988) provides increased mobility on a stable
platform as you work around and under Vehicles. Six Backrest/Seat locking
positions from 0° to 75° and four 360° swivel Casters allow freedom of
movement and comfort while working.
Included with the Ergo-RS Creeper:
• Magnetic Parts Tray (5701172)
• Side Parts Tray (5716066)
• Front Parts Tray(5716065)
• Cup Holder (5701777)
Ergo-RS Wall Hanger (Sold Separately)
An optional Wall Hanger (5701830) is available
for the Ergo-RS. Stow your Ergo-RS on the wall,
up and out of the way.
Copyright ©2022 BendPak Inc. All rights reserved.
Ergo-RS Components

Specifications:

• Max. Capacity: 350 lbs. / 159 kg.
• Max. Backrest Height: 49 in. / 1,245 mm
• Max. Seat Height: 21 in. / 533 mm
• Min. Height: 5.7 in. / 144.8 mm
• Collapsed length: 56 in. / 1,424 mm
• Overall width with Trays: 30 in. / 762 mm
• Overall Width without Trays: 28 in. / 711 mm
Ergo-RS Creeper Trays
1645 Lemonwood Drive
Santa Paula, CA 93060 USA
(800) 253-2363 bendpak.com
Quick Start Guide
P/N 5900272 - Rev. A - May 2022

Ergo-RS Range of Adjustment

• Ergo-RS Weight: 53 lbs. / 24 kg.
• Seat Locking Positions: Six positions 0° to 75°
• Casters: Four 360° Covered Swivel Casters, Ø75 mm x 25 mm, sleeve
bearings, oil resistant, non-marking rubber wheels
• Seat Materials: Padded Marine Vinyl Back Rest and Seat. Marine
Vinyl is abrasion, chemical and oil resistant
• Frame Materials: Full powder coated, welded tubular steel
