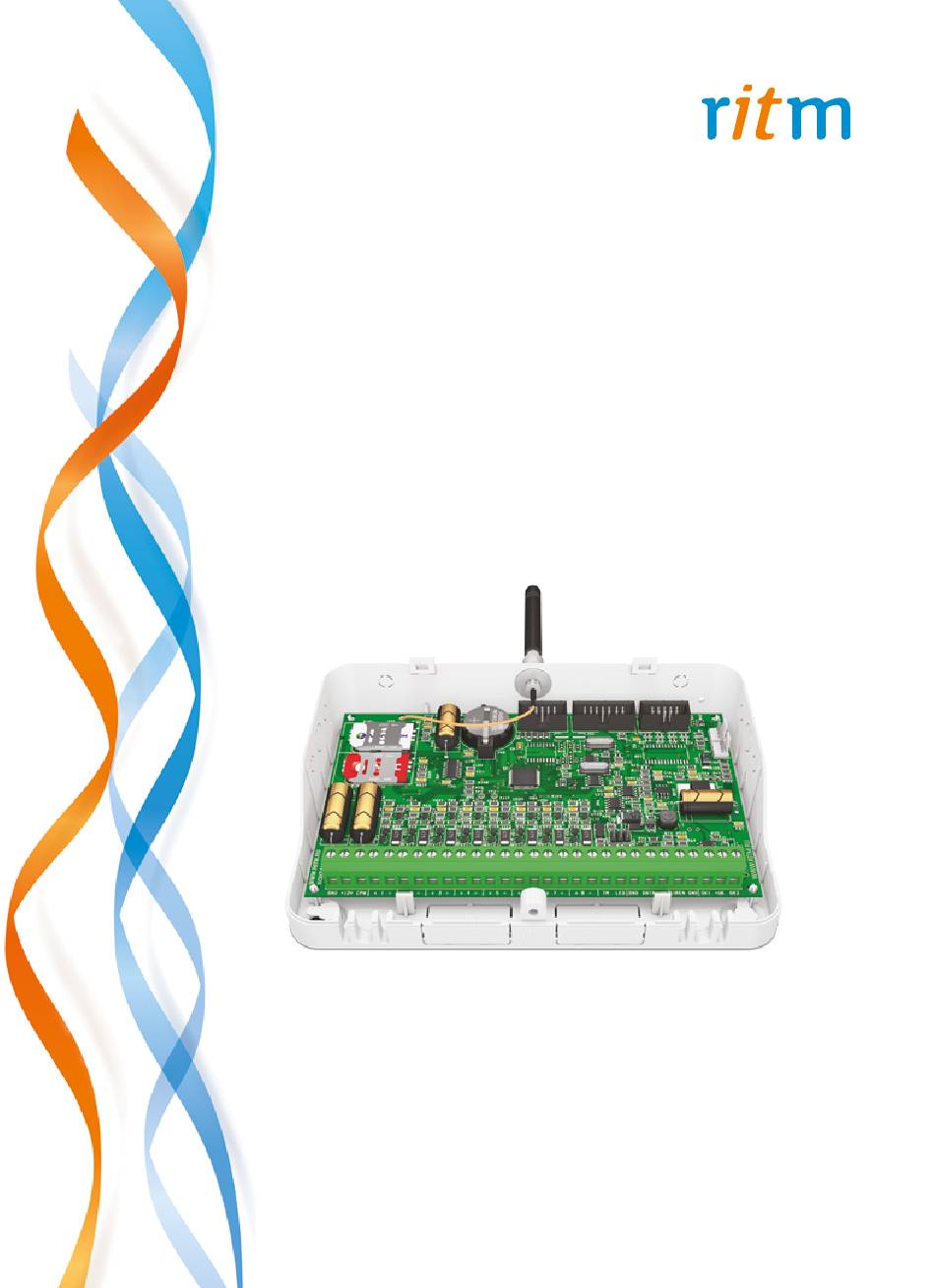

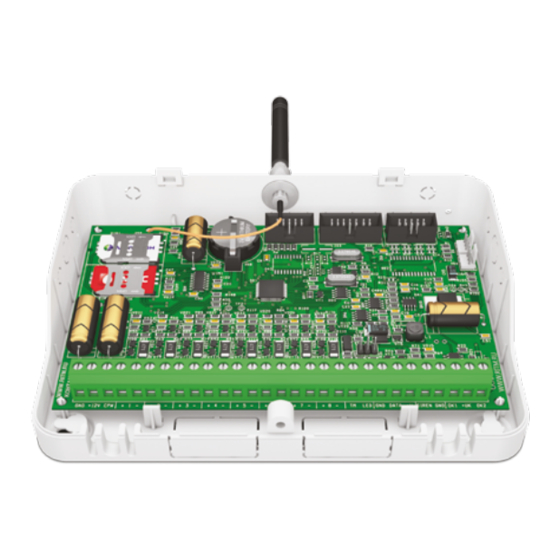

- Page 1 Contact GSM-5-2 Quick start guide Saint Petersburg, 2016...
- Page 2 • Insert your device into the Contact Box (7Ah or 1,2Ah). • Connect the wires from the power supply into the GND, +12V and CPW terminals of your device, according to the Data sheet of the Contact GSM-5-2. • Connect your device to power, using the regular power cabel.
- Page 3 Contact GSM-5-2. Quick start guide. Download the software • Go to our website www.ritm.ru, in the right top corner you can choose the english language. • Then go to “Downloads”. • Open the “Сommon software for the set-up of all of Ritm’s devices”,...
- Page 4 Contact GSM-5-2. Quick start guide. Install the software Unzip archive Drivers, and Install the downloaded Driver (Drivers\CP210x_VCP\CP210x_VCPInstaller_x64 or Drivers\ CP210x_VCP\CP210x_VCPInstaller_x32), depending on the version of your operating system: • Accept the agreement, click next. Also, you will need to install driver of virtual com port (from \ Drivers\ST_VCP\VCP_V1.3.1_setup, or \Drivers\ST_VCP\VCP_...
- Page 5 Check the connection of the device to your PC Open the PC manager. Click on the Device Manager and look at COM ports. Port for RITM USB is called “Silicon labs CP210x USB to UART Bridge (COM4)”. Please remember the number of your com port, it will be important in the future.
- Page 6 Contact GSM-5-2. Quick start guide. Open the configuration wizard Run the downloaded configuration program from the file, it will look like this: In the right bottom corner you can choose the language. After that, for the first time, it may be neccessary to download the latest version of the software.
- Page 7 If you have an item “Available update”(red color), you should click on it. Then click on “start updating”, you will see updating progress. Next step, you have to go to Global settings, where you can find common information about your Contact GSM-5-2. www.ritm.ru/en...
- Page 8 Contact GSM-5-2. Quick start guide. Here you should copy the IMEI of your Contact GSM-5-2, and check the registration in GSM network. If you have bad reception conditions of GSM, or SIM card doesn’t work, you will see, that SIM has “No registration in GSM network”.
- Page 9 Contact GSM-5-2. Quick start guide. To configure the second channel, type: • into the boxes of “Backup IP address, server port and password” address dev2.eu.ritm.ru • into the box “Server port 2” a port number 9426. • into the password – “TestTest”.
- Page 10 Contact GSM-5-2. Quick start guide. Now go to the Communication channels settings. Just click on “Turn on GPRS(TCP/IP) via SIM 1”, if you put your SIM card into slot # 1 or “Turn on GPRS(TCP/IP) via SIM 2”, if you put your SIM card into the slot # 2.
- Page 11 Contact GSM-5-2. Quick start guide. Configuration of keypads Go to the keypads section. Click “Add” to add a new keypad. Here you see the Keypad address and Object # keypad. Object # Keypad should be the same as the number of your object. Remember, you can see this number, or change it in the Global Settings page.
- Page 12 Contact GSM-5-2. Disconnect your Contact GSM-5-2 from your PC, and connect the LCD keypad to your PC via MicroUSB cabel. Like you previously did, open the same configuration programm, choose the COM port and click connect.
- Page 13 Now you will see the Main page of LCD Keypad configurator. Go to the Address section. Here you will see the address of your keypad. You can change the Address here, or in the keypad section of the contact GSM-5-2 configurator. Addresses should be the same. www.ritm.ru/en...
- Page 14 When the keypad configuration is done, close the keypad configuration programm, connect your USB 2 from RITM company to your Contact GSM-5-2 and open the configuration programm again. Go to Keypad codes page, where you can write codes to control your areas from the keypad.
- Page 15 Contact GSM-5-2. Quick start guide. GeoRitm Now you are ready to go and register on www.eu.ritm.ru. You can choose the language in the upper right corner. Click on registration button. Fill out the registration form www.ritm.ru/en...
- Page 16 Contact GSM-5-2. Quick start guide. After that you will get the e-mail for authorization, follow the link in that email and you will see this page. Click on the button “Open Monitoring interface”. You can select “Run Object Add Wizard automatically”, or open this wizard later.
- Page 17 Contact GSM-5-2. Quick start guide. Click on the plus button to add an object. Add an object and you will see this page. www.ritm.ru/en...
- Page 18 Contact GSM-5-2. Quick start guide. Click “Next”. Here you should put the IMEI, which you took from the settings of Contact GSM-5-2. Click “Next”. www.ritm.ru/en...
- Page 19 Contact GSM-5-2. Quick start guide. Click “Next” again If you see this page, the server now identified your Contact GSM-5-2. Click “Next”. www.ritm.ru/en...
- Page 20 Every object should be in one of the groups. You have 2 default groups: Vehicles and Real Estate, you should choose Real Estate. After that click “Next”. Your Contact GSM-5-2 is ready to work. You can give Coordinates, or Address to your device, and you will see it on the map.
- Page 21 Contact GSM-5-2. Quick start guide. You can click on the image of your Contact GSM-5-2 on the map and see the events, general report and object’s card. (You can open it from the left menu as well). www.ritm.ru/en...
- Page 22 “equipment” section and under the picture of Contact GSM-5-2 you will see the link “Setup a device”. It will open the same wizard of settings of your Contact GSM-5-2, but you can now configure it without USB connection with your PC.
