Patriot Titan II 22 HD

User Guide

User guide version: 3.1

English 11/2019

Table of Contents

Need help?

Do you have a question about the Patriot Titan II 22 HD and is the answer not in the manual?

Questions and answers

Summary of Contents for VISIO Patriot Titan II 22 HD

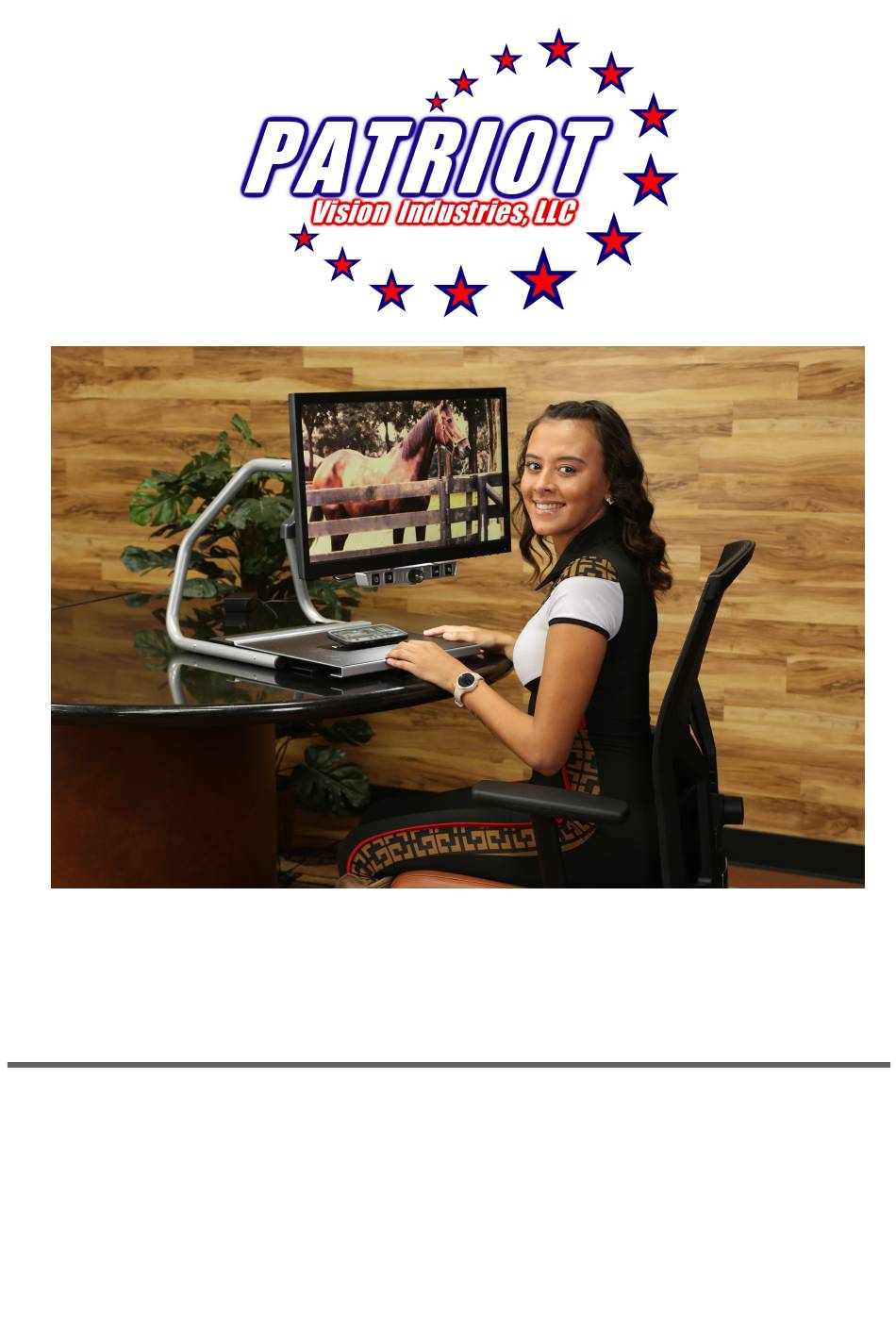

Page 1 Patriot Titan II 22 HD User Guide User guide version: 3.1 English 11/2019...
Page 3 Many people who suffer from macular degeneration, glaucoma, diabetic retinopathy, retinitis pigmentosa, inoperable cataracts or other eye diseases, experience great difficulty reading and performing many of life’s activities safely and effectively. These challenges can result in severe loss of independence. The good news is that we have a wide array of products and technology to enhance and assist in performing life’s activities.
Page 4: Table Of Contents
VERY FIRST TIME POWER ON AFTER INSTALLATION ..........8 Patriot Titan II 22 HD CONTROL PANEL ..............9 Patriot Titan II 22 HD CONTROL PANEL BUTTONS - QUICK REFERENCE ....9 GETTING FAMILIAR WITH YOUR NEW Patriot Titan II 22 HD........10 COMMON PROBLEMS AND SOLUTIONS ..............10 10 DEFECTS AND REPAIR ....................
Page 5: About This User Guide
1 About this user guide This manual addresses to end users of Patriot Titan II 22 HD. The device was assembled by your dealer or shipped to you as a completely assembled and tested device. In this manual you will find all information required to use your Patriot Titan II 22 HD.
Page 6: About Patriot Titan Ii 22 Hd
Patriot Titan II 22 HD provides most functionality you expect from a CCTV reader. Patriot Titan II 22 HD features full color autofocus and a choice of false colors. Reverse foreground and background color is also provided. Thanks to its image optimizer feature Patriot Titan II 22 HD will always provide an optimum image quality.
Page 7: Before You Start
4 How to position Patriot Titan II 22 HD on your desk Place Patriot Titan II 22 HD on your desk and set it so far back that when pulled out to the maximum position (nearest to your belly) the front edge of the XY-table is aligned to the front edge of your desk or even a little further back.
Page 8: Very First Time Power On After Installation
Display frame slowly to the left, until you feel the raised power button. After pressing this button, the red light will be lit. From now, Patriot Titan II 22 HD will switch on the Monitor automatically.
Page 9: Patriot Titan Ii 22 Hd Control Panel
6 Patriot Titan II 22 HD Control Panel 7 Patriot Titan II 22 HD Control Panel Buttons - Quick Reference Power Short press of about 1 second will power up the device (lights on). Long press will switch off. Image optimizer Selects one of five image quality optimizer settings for viewing critical documents with low contrast or bad print.
Page 10: Getting Familiar With Your New Patriot Titan Ii 22 Hd
Do not tilt too much; do not try to exceed the stopper position. Now, switch on Patriot Titan II 22 HD and use it for the first time. The control panel is mounted right below the screen. The power button is the leftmost one.
Page 11 Now, press the picture button. The picture button is located to the right of the zoom knob. Pressing this button will set Patriot Titan II 22 HD to real color or picture mode. This mode is ideal for viewing images and it also serves for reading bad print and for writing or filling in forms.
Page 12 Note: Patriot Titan II 22 HD remembers the color settings you made. So if you switch between Text mode and Picture mode and come back to Text mode, you find the previous colors there. Patriot Titan II 22 HD will even remember your last settings when you switch it off.
Page 13 Patriot Titan II 22 HD has an automatic auto-focus. That means, no matter how thick a book or how curved a page, Patriot Titan II 22 HD will always focus on the part displayed and thus always present a sharp image on the display.
Page 14: Common Problems And Solutions
Display and lights remain dark Please try to switch Patriot Titan II 22 HD on again. If this does not help, make sure power supply is connected to both the Patriot Titan II 22 HD and wall outlet and that wall outlet is live.
Page 15 XY-Table is not moving Move lever to leftmost position. Letters are fluttering Increase zoom by turning zoom knob clockwise. Try different settings of Image optimizer button. Common problems and solutions...
Page 16: Defects And Repair
10 Defects and Repair If Patriot Titan II 22 HD is broken – what to do?  Did you check all settings and connections according to the manual?  Did you remove the protective plastic film from the camera lens? ...
Page 17: Service Box
11 Service box For shipping Patriot Titan II 22 in the service box, proceed as follows: Switch off Patriot Titan II 22   Unplug from mains  Put display in upright position, fasten brake of XY-table  Remove white foam parts and corrugated card board cover from box.
Page 18: Compliances
12 Compliances CE Conformity This product conforms to the guidelines of the European Union and takes the CE- and ROHS Marking. FCC Conformity 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference’s that may cause...
Page 19: Environmentally Friendly Disposal
Environmentally friendly disposal according to EU-Directive 2012/19/EU The symbol (crossed garbage can), which is also attached to the device, states that this device and its accessories, once come to the end of its lifetime, should not be regarded as household waste. An environmentally friendly way of final disposal is compulsory.
Page 20 Declaration of Conformity VisioBraille GmbH Loebstedter-Straße 41 D – 07749 Jena Germany declare in our sole responsibility, that our desktop video magnifier system named Patriot Titan II complies with the essential requirements of 2014/35/EC Low Voltage Directive 2014/30/EC EMC Directive 2011/65/EC RoHS Directive and conforms to the following normative documents...
Page 21: Warranty
13 Warranty VisioBraille GmbH warrants the device, effective from the date of delivery, to be free of any defects in material and workmanship. Warranty is not transferable and does not apply to groups, multi users or agencies. This device has been designed for the individual purchaser to be used in home or office environments.
Page 22: For Your Safety
14 For your safety Important note: Failure to observe the following warnings may invalidate the guarantee and could cause damage of the device or serious injury. Please check contents of package before you use the device. If parts are damaged or missing, please do not hesitate to inform your dealer. Please keep the shipping box, so you can safely pack the device in case you have to ship it for service, etc.
Page 23 If you smell smoke or an door coming out of the device, turn off the power immediately. Do not try to repair the device yourself. Opening or removal of housing may cause damage or injury. Do not allow sand or dust to come into contact with the device as this may lead to serious damage and could make repair impossible.
Page 24 If you bring the device from cold places into a warm room, humidity may condensate. Wait until the device is dry and well-tempered to room temperature before use. Unplug from mains before cleaning. Wipe dust and dirt from the device with a soft cloth dampened with a diluted neutral detergent, then wipe dry with a cloth.
Page 25 the device with a soft cloth dampened with a diluted neutral detergent (stay clear from the Braille cells and Roll-bars!), then wipe dry with a cloth. Do not attempt to clean the Braille cells and/or Roll-bars yourself. Contact your dealer for intensive and professional cleaning of your device.
Page 26: Technical Data
Display diagonal 54,61 cm (22 in.) in 16:9 format  Monitor with LED Backlight  Maintenance-free LED reading lights  VISIO 22: Full color  4 False colors with enhanced contrast + Reverse image giving 8 combinations (black-white, black-yellow, black-green and blue- yellow). ...
Page 27 Manufacturer: VisioBraille GmbH Löbstedter-Straße 41 D - 07749 Jena Germany Sales and Support: Patriot Vision Industries, LLC. 2129 SW Highway 484 800-364-1610 Phone: Ocala, FL 34473 352-203-4617 Fax: Email: info@patriotvisionindustries.com Web: www.patriotvisionindustries.com Please be advised that this user guide may contain errors, and is therefore subject to being changed or updated without prior notice.
