Alpine Cielo Breez Plus Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

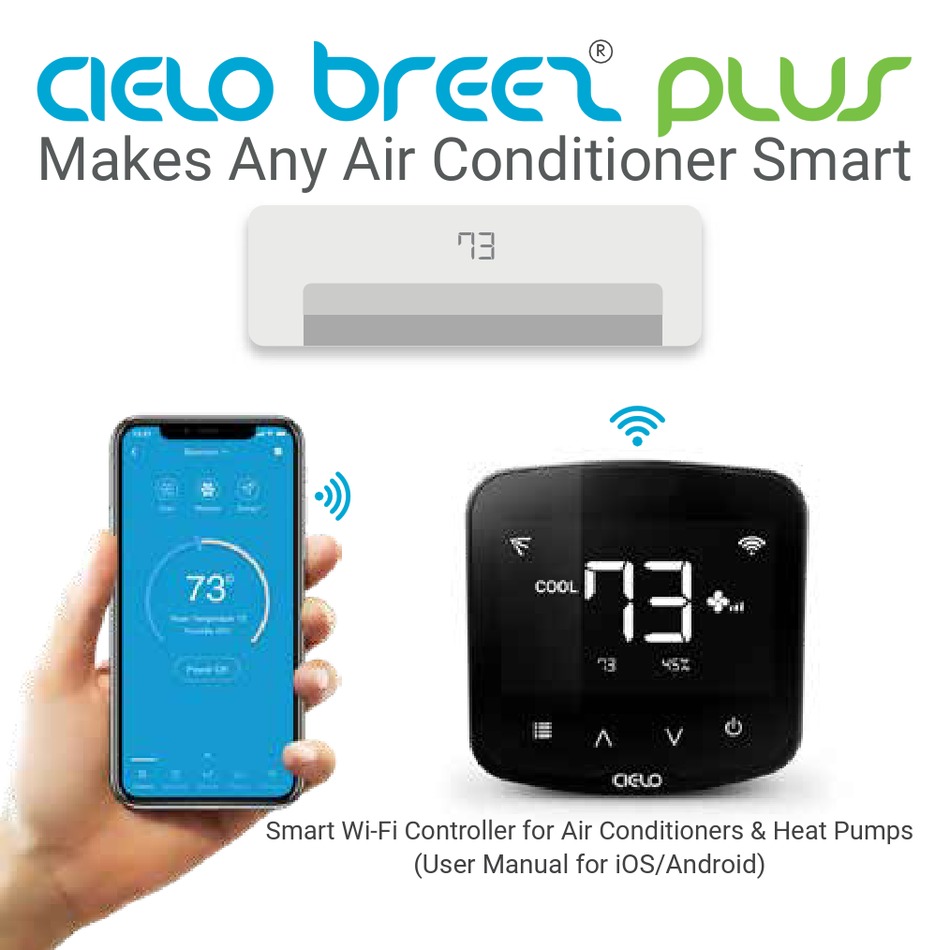

R
Makes Any Air Conditioner Smart
73
Smart Wi-Fi Controller for Air Conditioners & Heat Pumps
(User Manual for iOS/Android)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cielo Breez Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alpine Cielo Breez Plus

Summary of Contents for Alpine Cielo Breez Plus

  • Page 1 Makes Any Air Conditioner Smart Smart Wi-Fi Controller for Air Conditioners & Heat Pumps (User Manual for iOS/Android)

  • Page 2: Mounting & Placement

    1A. MOUNTING & PLACEMENT Cielo Breez Plus can be wall mounted using the wall mounting kit or placed on a table using the table stand (both included in the box). Before finalizing the placement, it is recommended to first power up, register and test the device to find the optimal location from where signals can easily reach the AC.

  • Page 3: Getting Help

    GETTING HELP No long queues, no bots, no delays. We answer 98% calls in less than 2 minutes and we guarantee that you will talk to a REAL person. Visit our website: www.cielowigle.com and select ‘Support’. Email us at: support@cielowigle.com Call us at : +1 (425) 529-5775 9:00AM - 9:00PM EST, Mon-Fri...
  • Page 4 1C. IR SIGNALS - CIELO BREEZ PLUS Breez Plus has three transmitters to send IR signals to the air conditioner. One towards the front, and one each on the top corners at 45 degrees. Important Please ensure that the IR signal reaches your air conditioner from either of these transmitters.
  • Page 5 2A. APP INSTALLATION - iOS / Android • Go to the App Store / Play Store. • In ‘search’ section type ‘Cielo Home’. • Once ‘Cielo Home’ App is displayed, tap the ‘GET’ button. • Open the App after installation is complete. ‘Cielo Home’...
  • Page 6 Note 2: Please turn off LTE/mobile data on your phone during the registration process to ensure seamless registration. You may enable it later. Note 3: Local Network Access permission is a requirement for iOS 14.0 onwards to successfully register the device. ii. Select 'Cielo Breez Plus' from the list of devices.
  • Page 7 3A. REGISTRATION - iOS USERS Step 1: Power-up the Cielo Device and press ‘Next’. Step 2: Go to the Wi-Fi settings of your phone. Step 3: Select the Cielo Device (Cielo_xxxx_xxxxxx) from the Wi-Fi list. Step 4: Come back to the Cielo Home App. Step 5: Your phone will show the list of available Wi-Fi networks.
  • Page 8 You may disable it later. Note 2: Please turn off LTE/mobile data on your phone during the registration process to ensure seamless registration. You may enable it later. ii. Select 'Cielo Breez Plus' from the list of devices.
  • Page 9 3B. REGISTRATION - ANDROID USERS Step 1: Power-up the Cielo Device and press ‘Next’. Step 2: Tap on the “Go to Wi-Fi Settings” button as highlighted in red. Step 3: Connect your phone to the Cielo Device Wi-Fi (Cielo_xxxx_xxxxxx). Step 4: Go back to the ‘Cielo Home’ App. Step 5: Your phone will show the list of available Wi-Fi networks.
  • Page 10 4. REGISTRATION - iOS / Android Step 1: Customize your device with a name of your choice (for example, Bedroom, Lounge, Office, etc.), and tap on ‘Done’. Step 2: Your device has been configured successfully. Tap on ‘Done’. Step 3: After successful configuration, your device will display on your home screen.
  • Page 11 4. REGISTRATION - iOS / Android Step 5: Get hold of your AC’s remote and tap ‘Next’. Step 6: Point your AC's remote at the Cielo Device and press the remote’s 'Power Button' once. It will start the processing & configuration process. Step 7: The configuration screen will display your detected remote control.

  • Page 12: Your Home Screen

    5. YOUR HOME SCREEN Your home screen shows the real time status of all your Cielo Devices. A registered Cielo Device can show either of the 3 status, outlined in circles: 1 - Green Device is online. You’re good to go! 2 - Red Device is offline, try the following options: - Ensure your phone is connected to a working internet connection.

  • Page 13: Troubleshooting

    Modes Swing Posi�on for more op�ons Fan Speed Temperature Control Set Point Room Temperature Room Humidity Power Cielo Breez Plus Works With Amazon Alexa, Control Timeline the Google Assistant, Siri Shortcuts & Samsung SmartThings eSaver Schedule History 7. TROUBLESHOOTING Our dedicated team of experts is here to help from 9 AM to 9 PM EST (Mon-Fri).
  • Page 14 8. CONFIGURING THE RIGHT REMOTE CONTROL FOR YOUR AC Screen A Screen B Cielo Device auto detects the relevant remote control for your AC during the registration process. If it is not working with your AC, please select your remote model manually or contact Cielo Support for help at: +1 (425) 529-5775 or visit our website:...
  • Page 15 9. BREEZ PLUS - LOCAL CONTROL OPTION Set Point Temperature Swing Positions Wi-Fi Status AC Modes Fan Speed Room Humidity Room Temperature Menu Button Power On/Off Button Temperature Up Button Temperature Down Button Adjusting the temperature of your AC: Use the up or down button to set the temperature of your choice. Changing the mode of your AC: Touch the menu button once.
  • Page 16 10. BREEZ PLUS - LOCAL CONTROL OPTION (CONT’D) Set Point Temperature Swing Positions Wi-Fi Status AC Modes Fan Speed Room Humidity Room Temperature Menu Button Power On/Off Button Temperature Up Button Temperature Down Button Turning the display of Breez Plus On: Press the Temperature Down button for six seconds and release.
  • Page 17 11. INSTRUCTIONS FOR BREEZ PLUS WIRED CONNECTIONS (24V OR 12V) Step 1: Switch off power by using the master switch or mains circuit breaker. This is very important for your safety. BREAKER BOX SWITCH Step 2: Find a point where 24V or 12V is available (e.g. the point where thermostat wiring is available).
  • Page 18 11. INSTRUCTIONS FOR BREEZ PLUS WIRED CONNECTIONS (24V OR 12V) Step 4: Breez Plus has two connections marked as 24V at its back. Connect C & R wires at these two connections. Step 5: Press fit the Breez plus on its back plate. Your Installation is complete.
  • Page 19 LIMITED WARRANTY & END USER HARDWARE & LICENSE AGREEMENT 1. LIMITED PRODUCT WARRANTY FOR END USERS Cielo WiGle Inc. warrants to the owner of the enclosed Cielo WiGle Inc. branded product contained in this box (’Product’) will be free from defects in materials and workmanship for a period of one (1) year from the date of delivery, following the original retail purchase (the ‘Warranty Period’).
  • Page 20 THE MAXIMUM DAMAGES IN ANY CASE WILL NOT EXCEED THE AMOUNT ACTUALLY PAID FOR THE PRODUCT BY THE ORIGINAL PURCHASER. Manufacturer Technical Specifications Cielo WiGle Inc. Cielo Breez Plus Wi-Fi Smart Controller for Air Conditioners & Heat Pumps Redmond, WA, USA Model: BP101WA Dimensions: 110 x 110 x 25.5 mm (L x W x H) max...
