1

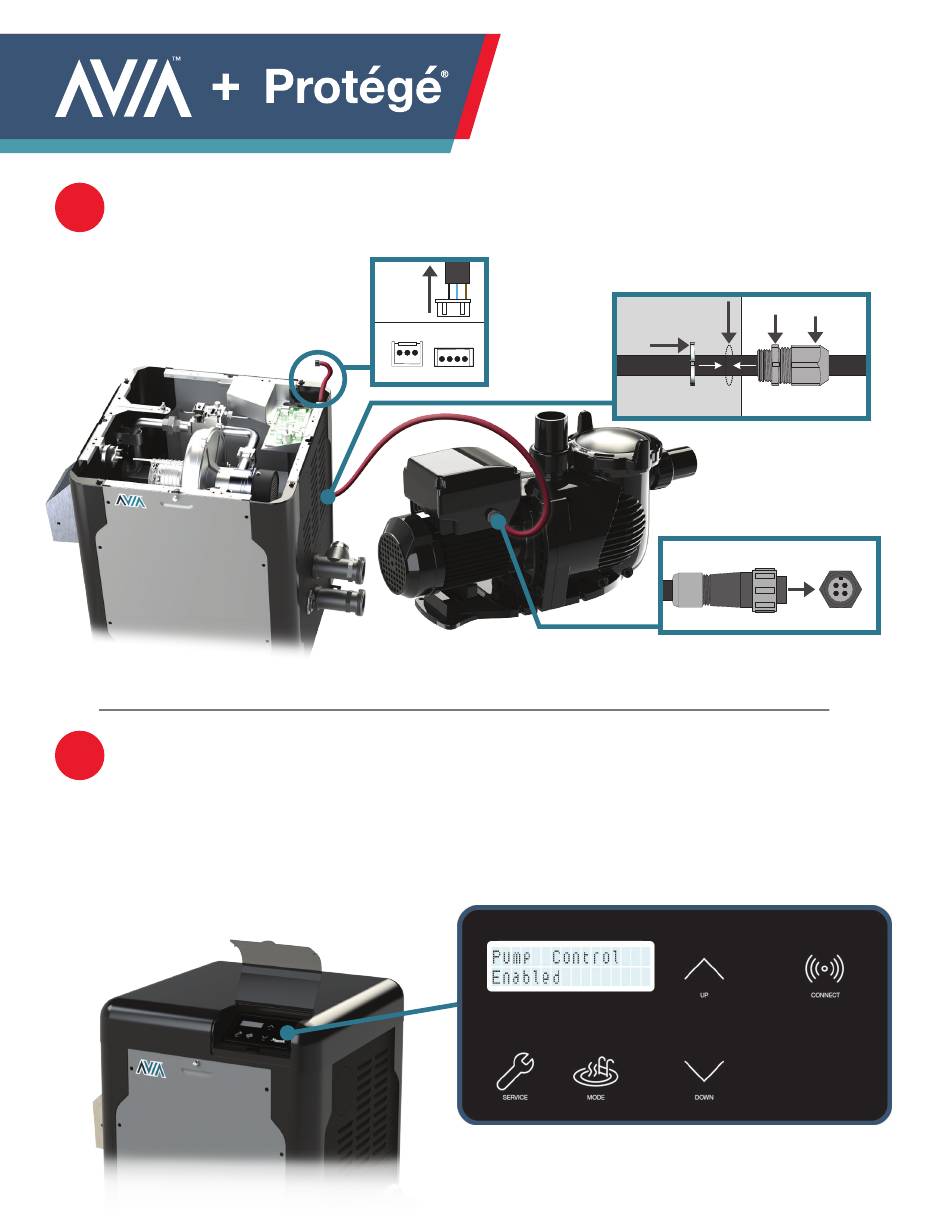

Pump to Heater RS-485 Modbus Connection
Remove unit top and
control board cover to
expose "P12" Port
2
Enable from LCD menu
- Press & hold SERVICE+MODE for 5 seconds to open Program menu
- Press SERVICE multiple times for "Pump Control" option
- Press DOWN to enable "Pump Control"
- Press MODE to exit
QUICK START
GUIDE
To
Protégé
Pump
VENT
VENT
OUTPUT
OUTPUT
CHEM
FLOW
TEMP
TEMP
TEMP
TEMP
COM
P3
P3
P2
P2
P11
P12
Use knockout to route
RS-485 Modbus harness
Panel
Sealing
knockout
ring
INTPUT
INTPUT
Metallic
TEMP
TEMP
ring
P1
P1
Inside cabinet
Outside cabinet
Properly line up connectors
and twist-on watertight seal
Sealing
nut
Pump side
Advertisement
Summary of Contents for Avia RS-485
- Page 1 QUICK START GUIDE Pump to Heater RS-485 Modbus Connection Use knockout to route Remove unit top and RS-485 Modbus harness control board cover to Protégé Pump Panel Sealing Sealing expose “P12” Port knockout ring VENT VENT OUTPUT OUTPUT INTPUT INTPUT...
- Page 2 QUICK START GUIDE Control your Pump from Raymote - Control Raymote-connected heaters from the palm of your hand - Create automation routines or control pump speed from Raymote app. Manual & Scheduled control from the Raymote app. Available for: Try these suggestions to improve your Wi-Fi signal: - Keep your heater always connected to power and Wi-Fi to run online-scheduled task.
