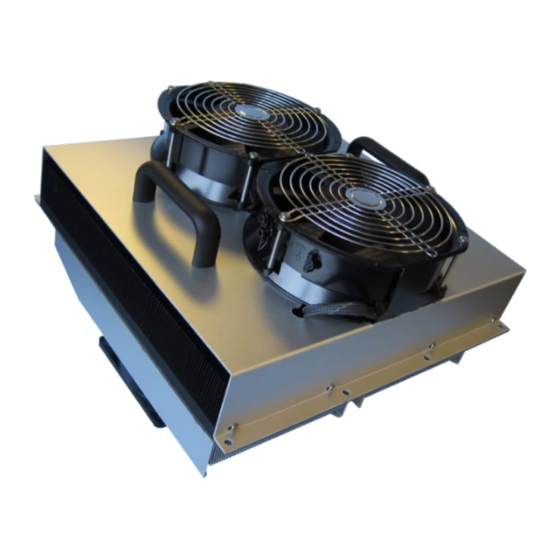

- Page 1 AA-480 Outdoor Cooler Series Specification and User Manual...
-
Page 2: Table Of Contents
Laird. All specifications are subject to change without notice. Laird assumes no responsibility and disclaims all liability for losses or damages resulting from use of or reliance on this information. All Laird products are sold subject to the Laird Terms and Conditions of sale (including Laird’s limited warranty) in effect from time to time, a copy of which will be furnished upon request. -
Page 3: Introduction
This manual provides the necessary general information for proper installation and operation that has been developed to achieve the best results when using a Laird Thermal Systems Outdoor Cooler Series product. -
Page 4: Incoming Inspection
2. Incoming Inspection Laird Thermal Systems’ Outdoor Coolers are designed, built, and packaged to withstand the shock and vibration associated with normal transit means by common carriers. Occasionally, improper handling during shipment may cause damage to the product. Therefore, packages should be opened promptly and inspected for damage. -
Page 5: Specifications
5) Rating for unit without protective shroud. Note: The specified performance of any Laird Thermal Systems cooling unit is dependent on how it is handled and incorporated into the final product. This includes elements such as the system design, insulation design, and assembly method. While Laird Thermal Systems is able to provide general guidelines based upon our experience, it is ultimately the responsibility of the OEM to validate each product and its performance for its intended use. -
Page 6: Performance Curve
4.2 Performance Curve The cooling capacity was conducted at an ambient temperature of 35°C. Performance will deviate based on ambient temperature condition. 4.3 Isometric Drawing... -
Page 7: Installation And Operation Instructions
5. Installation and Operation Instructions Reducing the passive heat load is critical to yield the highest efficiency out of an Outdoor Cooler and maximize service life. It is important to insulate the walls of an enclosure with as much insulation material as permissible without interfering with nearby electronics or system level obstructions. -
Page 8: Schematic
5.2 Schematic Outdoor Coolers come with a durable simple to use cage clamp. Wires should be stripped back 6 mm in length and inserted into connector. Connector can accommodate wire sizes of 12 to 28 AWG. For input power to TEM 16 AWG stranded copper wire is recommended. For input power to fans 18 AWG stranded copper wire is recommended. -
Page 9: Serviceability
This warranty covers repair or replacement of product, to be done at a Laird Thermal Systems’ facility, for a period of two (2) years from date of shipment. Customer is responsible for shipping product to Laird Thermal Systems freight prepaid. -
Page 10: Return Procedure
8. Return Procedure All returns must be assigned a Return Materials Authorization number (RMA#) in advance. To start a return process, simply fill out the form at https://www.lairdthermal.com/about/product-return-policy Returns received without RMA # may be refused. All returns must be securely packed to prevent shipping damage and must be clearly marked with the RMA# on the box.
