Innovatech Terminator T-2100XME Instruction Manual

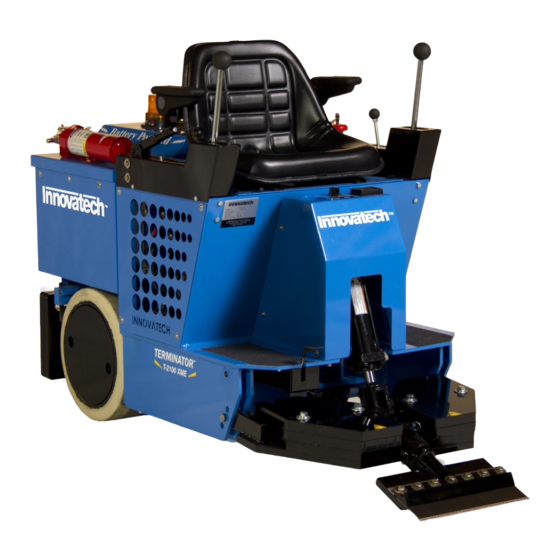

Battery powered floor scraper
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IF YOU SHOULD EXPERIENCE A PROBLEM WITH YOUR INNOVATECH PURCHASE,
IN MOST CASES AN INNOVATECH REPRESENTATIVE CAN RESOLVE YOUR PROBLEM OVER THE PHONE.
IF YOU HAVE A SUGGESTION OR COMMENT, GIVE US A CALL. YOUR FEEDBACK IS VITAL TO THE SUC-
INSTRUCTION MANUAL
Terminator
T-2100XME
®
Battery Powered Floor Scraper
© Copyright 2013 Innovatech Products & Equipment Co., Everett, Washington USA. All rights reserved.
Pat. Num.: 5,641,206
SN: T2100-001-XME forward
CALL 1-800-267-6682.
CESS OF INNOVATECH'S QUALITY IMPROVEMENT PROGRAM.
Manual Version 1.2 Updated 09/08/15
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Terminator T-2100XME and is the answer not in the manual?

Questions and answers

Related Manuals for Innovatech Terminator T-2100XME

Summary of Contents for Innovatech Terminator T-2100XME

  • Page 1 CESS OF INNOVATECH’S QUALITY IMPROVEMENT PROGRAM. INSTRUCTION MANUAL ™ Terminator T-2100XME ® Battery Powered Floor Scraper © Copyright 2013 Innovatech Products & Equipment Co., Everett, Washington USA. All rights reserved. Pat. Num.: 5,641,206 SN: T2100-001-XME forward Manual Version 1.2 Updated 09/08/15...

  • Page 2: Table Of Contents

    Battery Display And Hour Meter ...........................12 Hydraulic Oil Over Temperature Indicator ........................12 Hydraulic Filter Clog Indicator ............................12 Manual Disconnect And Lockout ..........................12 Electric Motor and Batteries ........................12 Blade Assembly ............................13 Taking Up Floor Coverings ............................13 Page 2 Innovatech Products & Equipment Co.
  • Page 3 First Aid for Acid Splashes ............................16 Eye Wash And Emergency Shower Facilities ......................17 Maintenance Schedule ..........................18 Warranty ..............................20 Parts Diagrams ............................21 Electrical Schematic ..............................60 Material Safety Data Sheets (MSDS) ....................... 62 Batteries ..................................62 Hydraulic Oil ...................................67 Terminator T-2100XME Manual Page 3...

  • Page 4: Introduction

    • Tricycle wheelbase and short turning radius allows for better Innovatech Products & Equipment Co. turning ability – especially in narrow spaces. 832 80th ST. SW • Blade vertical and tilt position adjustments allow for posi- Everett, WA 98203 USA tioning the angle of the blade for each application.

  • Page 5: Important Safety Instructions

    • NEVER STAND ON TOOL. Serious injury could occur if the machine is tipped or rocked. • CHECK DAMAGED PARTS. Before further use of the equipment, a guard or other part that is damaged should be Terminator T-2100XME Manual Page 5...

  • Page 6: Additional Safety Rules For Riding Floor Scrapers

    DON’T sit on or stand next to, under or around the Terminator ® when it is being transported in a moving vehicle, whether by itself or with other equipment. Page 6 Innovatech Products & Equipment Co.

  • Page 7: General Operating Instructions For The Terminator

    As a safety service the machine. measure, regularly inspect the gauge and recharge the fire extinguisher as needed to maintain full capacity. Always re- charge the extinguisher after each use. Terminator T-2100XME Manual Page 7...

  • Page 8: Terminator ® Specifications

    2. 10”-15” Crescent Wrench 7. ¾ Open End and Box Wrench 3. 16-20 oz. Hammer 8. Screw Driver Set 4. 3/8” or ½” Socket Set 9. Safety Glasses 5. Grease Gun 10. Ear Plugs Page 8 Innovatech Products & Equipment Co.

  • Page 9: Ventilation Requirements

    To ensure the continued safe and efficient operation of the equipment, use replacement parts and materials that meet both of the following requirements: • Innovatech must solely authorize replacement parts and materials. • Replacement parts and materials must be identical to the items originally provided with the machine, except as autho- rized by Innovatech.

  • Page 10: Uncrating The Terminator ® And Preparing It For Operation

    LID OPEN! 11) Whenever mounting or dismounting the TERMINATOR ® ALWAYS disable the power by pressing down on the red power knob. Page 10 Innovatech Products & Equipment Co.

  • Page 11: Loading/Unloading Procedures

    (Increasing From the view of the seated operator: motor power will reduce the run time of the machine) Push the left and right levers forward together and hold them Terminator T-2100XME Manual Page 11...

  • Page 12: Displays And Indicators

    ® light is continually coming on, turn machine off and let it cool cover. The electric motor provides the power to the hydraulic for 45-60 minutes. If the light regularly turns on, call Innovatech pump to drive the Terminator ®...

  • Page 13: Blade Assembly

    . Extra blades are available upon request from every 30 hours of machine operation. There are three fittings, ® Innovatech Products & Equipment Co., Inc. two on the wheel and one on the housing. When running over Installing a Blade debris such as carpet, the carpet yarn will get caught between the wheel and the housing.

  • Page 14: Battery Safety

    If you see any dented or crushed housing parts contact Innovatech for (See Setting Up Charging Area Section Below) procedures to repair shipping damage. If you see wet areas, the batteries may have been damaged during shipping.

  • Page 15: Wearing Protective Clothing

    Connectors in the battery compartment are shipped in a dis- machinery such as forklifts that are stored in the location, as connected state; this connector will have to be plugged in order well as the size, height and air-tightness of the storage location. Terminator T-2100XME Manual Page 15...

  • Page 16: Basic Charging Facts

    Standard Re-charge: After a battery has undergone a normal full A buffering or neutralizing agent should not be used in the eyes Page 16 Innovatech Products & Equipment Co.

  • Page 17: Eye Wash And Emergency Shower Facilities

    This type of wash station is only really needed at a battery repair center. An eye wash fountain is permanently hooked up to a wa- Terminator T-2100XME Manual Page 17...

  • Page 18: Maintenance Schedule

    • • Re-torque Pack Nuts • • • • • • Adjust Wheel Scrapers • • • • • • Grease Caster Wheel • • • • • • Replace Motor Brushes • Page 18 Innovatech Products & Equipment Co.
  • Page 19 Terminator T-2100XME Manual Page 19...

  • Page 20: Warranty

    Warranty Innovatech warrants to the original buyer, for a period of one (1) year or 300 operating hours (whichever comes first) from the date of delivery, that Equipment is free from defects in materials and workmanship and that the Equipment conforms to the operating specifications supplied with the Equipment.

  • Page 21: Parts Diagrams

    Parts Diagrams Terminator T-2100XME Manual Page 21...
  • Page 22 13-0324 Traction Foot Pad, Right 51-0788 Jaw Weight 51-0798 Rear Weight 52-0161 Seat Support Panel 52-0166 Side Access Panel, Left 52-0167 Side Access Panel, Right 53-0276 Jaw Base Assembly 11-0033 T-2100XME Electrical Assembly Page 22 Innovatech Products & Equipment Co.
  • Page 23 Terminator T-2100XME Manual Page 23...
  • Page 24 13-0322 Tie-Down Ring 23-0031 Manual Disconnect Switch 23-0125 Foot Pedal 52-0156 Foot Pedal Bracket 52-0164 Console Box, Left 96-0259 Mechanical Assembly 96-0261 Console Assembly 96-0262 Battery Box, Case Assembly 96-0268 Power Control Module Page 24 Innovatech Products & Equipment Co.
  • Page 25 Terminator T-2100XME Manual Page 25...
  • Page 26 Pan Head Phillips Machine Screw, #10-24x1” 22-0001 Potentiometer 23-0030-1 B.D.I. Display 25-0002 Red Panel Light 25-0003 Potentiometer Knob 25-0032 Fuse Block, 6 Gang, ATO Style 25-0053 Fuse (5 Amp) 53-0267 Console Cover 61-0056 Console Decal Page 26 Innovatech Products & Equipment Co.
  • Page 27 Terminator T-2100XME Manual Page 27...
  • Page 28 Hydraulic Tank Breather Cap 35-0047 Pipe Adapter, 1” NPT x 2” L 53-0277 Dip Stick Assembly 96-0257 Wheel, caster, scraper, tank fitting Assembly 96-0264 Hydraulic main control valve with fittings 96-0265 Oil filter unit (with fittings) Page 28 Innovatech Products & Equipment Co.
  • Page 29 Item No. Part Number Description Qty. 96-0266 Motor and Pump Assembly 96-0267 Hydraulic Oil Cooler & Fan Assembly (with fittings) DETAIL A Terminator T-2100XME Manual Page 29...
  • Page 30 Brake Mounting Bracket 35-0013 Hex Pack Nut, 1”-12 31-0053 90 Deg Hydraulic Fitting 33-0005 Wheel Motor, Left 33-0006 Wheel Motor, Right 51-0481 Spacer 51-0641 Emergency Brake Bracket Bar 53-0104 Wheel Weight 53-0209 Wheel and Tire Page 30 Innovatech Products & Equipment Co.
  • Page 31 Item No. Part Number Description Qty. 53-0266 Frame Assembly 70-0016 Wheel Hub with Brake 81-0091 Wheel Scraper Blade, 2 Slot, 7.5” x 4.5” 11-0019 Hex nut, 1/2”-13 35-0014 Drain plug NOTE 1 Terminator T-2100XME Manual Page 31...
  • Page 32 Screw, Pan Head Phillips, #8-32 x 2.5”L, SS 12-0020 Socket Head Cap Screw, M6x30mm 31-0052 Hydraulic fitting, 90 Deg, #10 JIC / #12 SAE O-ring 35-0026 Adapter Plate 36-0001 Hydraulic Oil Cooler 43-0014 Hydraulic Oil Cooler Fan Page 32 Innovatech Products & Equipment Co.
  • Page 33 Terminator T-2100XME Manual Page 33...
  • Page 34 Split Lock Washer, 3/8” 11-0295-20 Hex Head Cap Screw, 3/8”-24x1-1/4” 23-0002 Electric Motor 33-0021 Hydraulic Pump 31-0222 Hydraulic fitting, straight, #10 JIC to #10 SAE O-ring 31-0227 Hydraulic Fitting, Straight, #12 JIC to #12 SAE O-ring Page 34 Innovatech Products & Equipment Co.
  • Page 35 SEE NOTE 1 Terminator T-2100XME Manual Page 35...
  • Page 36 Item No. Part Number Description Qty. 11-0069 Split Lock Washer, 1/4” 11-0121 Hex Head Cap Screw, 1/4”-20x1” 23-0032 Power Control Module 51-0794 Heat Sink Plate Page 36 Innovatech Products & Equipment Co.
  • Page 37 USE THERMAL TRANSFER COMPOUND (CHEMPLEX 1381 OR EQUIV.) BETWEEN POWER CONTROL MODULE AND HEAT SINK PLATE. Terminator T-2100XME Manual Page 37...
  • Page 38 Screw, Hex Head cap, M8 - 1.25 x 30, ZP 52-0165 Console Box - Right 96-0252 Joystick Assembly (wheels control) 96-0252 Joystick Assembly (wheels control) 96-0253 Joystick Assembly (jaw control) 96-0258 Hydraulic Assembly 96-0270 E-brake Handle/Cable Assembly Page 38 Innovatech Products & Equipment Co.
  • Page 39 Terminator T-2100XME Manual Page 39...
  • Page 40 35-0036 Oil filter head 35-0037 Oil filter element 35-0041 Oil pressure switch 31-0051 Hydraulic Fitting, 90 Deg, #12 JIC to #12 SAE 31-0052 Hydraulic fitting, 90 deg, #10 JIC / #12 SAE O-ring Page 40 Innovatech Products & Equipment Co.
  • Page 41 Terminator T-2100XME Manual Page 41...
  • Page 42 Socket Head Shoulder Screw, 5/16”Dia x 5/8”L Shoulder, 1/4”-20 Thread 11-0294-16 Socket Head Shoulder Screw, 5/16”Dia. x 1”L Shoulder, 1/4”-20 Threads 11-0024 Nut (Nylon-insert), 1/4-20 11-0307 Shim washer, .313 ID x .438 OD x .032 Thk 13-0300 Knob (1-7/8 dia.) Page 42 Innovatech Products & Equipment Co.
  • Page 43 Terminator T-2100XME Manual Page 43...
  • Page 44 Screw, 5/16”-18 x 3/4” 11-0133 Screw, 1/4”-20 x 3/4” 11-0024 Nut (Nylon-insert), 1/4”-20 11-0025 Nut (Nylon-insert), 5/16”-18 13-0299 Knob (1-1/4" dia.) 11-0129 Washer (lock), 3/8” 11-0223 Nut, 3/8”-16 53-0240 Linkage 51-0721 Joystick rod Page 44 Innovatech Products & Equipment Co.
  • Page 45 Terminator T-2100XME Manual Page 45...
  • Page 46 Hydraulic Fitting, Straight, #10 JIC to #8 SAE O-ring 31-0045 Hydraulic Fitting, Straight, #8SAE to 1/4”NPTF 31-0046 Hydraulic Fitting, Straight, #6JIC to #6 SAE O-ring 31-0223 Hydraulic Fitting, 45 deg, #10 JIC to #8 SAE O-ring 35-0048 Hydraulic control valve (modified) Page 46 Innovatech Products & Equipment Co.
  • Page 47 Terminator T-2100XME Manual Page 47...
  • Page 48 T-2000EI, Main Fuse Holder 23-0010 T-2000EI, Fuse 275A 42-0001 Fire Extinguisher 51-0777 Slider strip, 1/2 H x 1 W x 24 L 51-0778 Slider strip, 1/2 H x 2 W x 24 L Page 48 Innovatech Products & Equipment Co.
  • Page 49 Spacer, 1/2 OD x 1/4 ID x 9/16 L, steel 53-0285 Battery Box Side Access Panel, T-2100XME, Painted 53-0270 Battery Box Base, T-2100XME, Welded & Painted 53-0275 Battery Box Lid, T-2100XME, Welded & Painted NOTE 1 NOTE 1 Terminator T-2100XME Manual Page 49...
  • Page 50 Item No. Part Number Description Qty. 13-0027 Clevis 13-0050 Brake Lever 13-0319 Brake Cable (modified for XME) Page 50 Innovatech Products & Equipment Co.
  • Page 51 CLEVIS PIN, WASHER AND COTTER PIN (SUPPLIED WITH BRAKE LEVER) Terminator T-2100XME Manual Page 51...
  • Page 52 Battery 24-0161 Cable Assembly, Positive 24-0162 Cable Assembly, Negative 25-0024 Connector SB175 25-0103 Battery Boot, Red 25-0104 Battery Boot, Black 51-0791 Battery Terminal Bus Bar 53-0273 Battery-pack Case, Base 53-0274 Battery-pack Base, Cover Page 52 Innovatech Products & Equipment Co.
  • Page 53 Terminator T-2100XME Manual Page 53...
  • Page 54 Switch 2 Switch 1 Red/White 18ga Red 18ga Filter Clog Switch Brown 18ga Black/White 18ga Motor Fuse 175A Manual Battery Pack Battery Pack Disconnect Motor Controler Foot Pedal Foot Pedal Power Supply Brown 18ga Page 54 Innovatech Products & Equipment Co.
  • Page 55 Terminator T-2100XME Manual Page 55...
  • Page 56 Page 56 Innovatech Products & Equipment Co.
  • Page 57 Terminator T-2100XME Manual Page 57...
  • Page 58 Page 58 Innovatech Products & Equipment Co.
  • Page 59 Terminator T-2100XME Manual Page 59...

  • Page 60: Electrical Schematic

    Page 60 Innovatech Products & Equipment Co.
  • Page 61 Terminator T-2100XME Manual Page 61...

  • Page 62: Material Safety Data Sheets (Msds)

    Page 62 Innovatech Products & Equipment Co.
  • Page 63 Terminator T-2100XME Manual Page 63...
  • Page 64 Page 64 Innovatech Products & Equipment Co.
  • Page 65 Terminator T-2100XME Manual Page 65...
  • Page 66 Page 66 Innovatech Products & Equipment Co.

  • Page 67: Hydraulic Oil

    Terminator T-2100XME Manual Page 67...
  • Page 68 To find more information about our other tools and products visit our website at: www.InnovatechProducts.com Contact us by E-mail at: Sales@InnovatechProducts.com Contact us by Phone at: 1.800.267.6682 Contact us by U.S. Mail at: 832 80th ST. SW Everett, WA 98203, U.S.A. Page 68 Innovatech Products & Equipment Co.
