IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Page 4
9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be caused to people, animal or objects due to failure to comply with the warnings above. IMPORTANT NOTE Thank you for choosing our Ecler eSAM603 + Installation Analogue Mixer! VERY IMPORTANT It is...

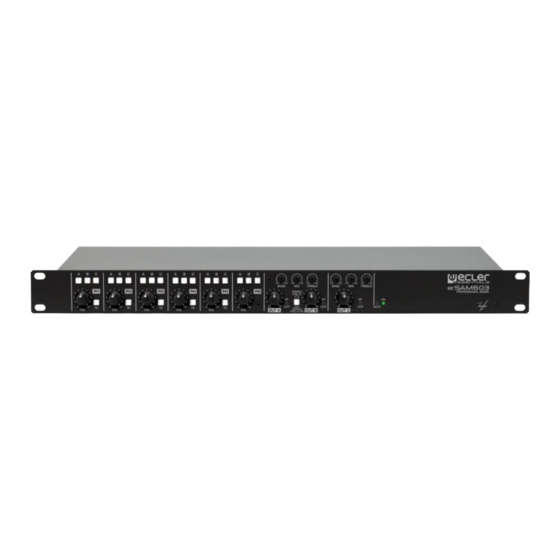

INSTALLATION The eSAM603 mixer has been specially designed to be installed in a standard 19" rack, taking up 1U. Due to its low power consumption and heat sink, the eSAM603 doesn't need any fan cooling. However, avoid installing it in dusty environments and/or in a location with extreme temperature and moisture.
CD and LINE sources and other devices capable of producing audio signals, the LINE inputs 2-5 of the eSAM603 are standard line inputs (0dBV) and the sensitivity of the LINE input #6 can be selected (0/-6dBV) by internal jumper (the default position is 0dBV).
OUTPUTS The eSAM603 has three electronically balanced outputs with Euroblock connectors. Connection is made according to the following diagram: The master level of each mixer output (OUT A, B or C) must be adjusted so that the overload indicators (CLIP) are not permanently lit on the system amplifiers, but at most on the lowest frequencies marking the rhythm.
This is directly done via the POWER mains switch. Even is the power-up noise of eSAM603 is minimal, we highly recommend to power up all equipment in the following order: sound sources, mixing units, equalizer, processors and finally power amplifiers.
Cable shields, when connected to the chassis, must never be linked together. This will avoid ground loops. The eSAM603 mixer was designed to produce the lowest background noise. Independently from the electronic design, the resulting background noise directly relies on the correct use and installation of the mixing unit.
the mixing amplifier has a high level and therefore also a high (good) signal/noise ratio, so when this signal reaches the output VOL control and is amplified, the signal/noise ratio remains better than in the previous case. CLEANING The front panel should not be cleaned with dissolvent or abrasive substances because silk-printing could be damaged.
DIAGRAMS and FUNCTION LIST 1 Channel volume control, VOL 12 LED indicator, ON 2 Talkover switch, TK 13 Micro input, MIC 3 Output destination switches, A, 14 Input sensitivity adjust, ADJ B, C 15 Micro line selector 4 Output main volume control, 16 Mono-stereo switch, L+R OUT A / B / C 17 Line input, LINE...
CONFIGURATION DIAGRAM JUMPERS FACTORY ADJUST Phantom: L6 Input Sensitivity: Aux Output: AUX PRE Output Sensitivity: Output Sens Output Input Sensitivity Phantom Input Sensitivity Aux Output Output Sensitivity Aux Pre Aux Post -6dB + 6dB BLOCK DIAGRAM...
TECHNICAL CHARACTERISTICS eSAM603 Inputs Sensitivity / Impedance IN 1-5 (LINE) 0dBV / 50kΩ IN 6 (LINE) 0(-6)dBV* / 50kΩ IN 1-5 (MIC/BAL) -35dBV/>1kΩ Input sensitivity adjust IN 1-5 (MIC/BAL) ±15dB Outputs Level / Minimum load 0(+6)dBV */ 600Ω AUX/REC 0dBV/10kΩ...
Page 15
product characteristics subject variation production tolerances. NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests.
