Dynabrade 10671 Operating Instructions Manual

Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

Models:

10671 - 1/2" NPT – Filter
10673 - 1/2" NPT – Regulator
10675 - 1/2" NPT – Lubricator
10677 - 1/2" NPT – Filter-Regulator
10679 - 1/2" NPT – Regulator-Lubricator
10681 - 1/2" NPT – Filter-Regulator-Lubricator
To reduce risk of injury, everyone using, installing, repairing, maintaining, changing accessories on, or working near this
tool MUST read and understand these instructions before performing any such task. DO NOT DISCARD – GIVE TO USER.

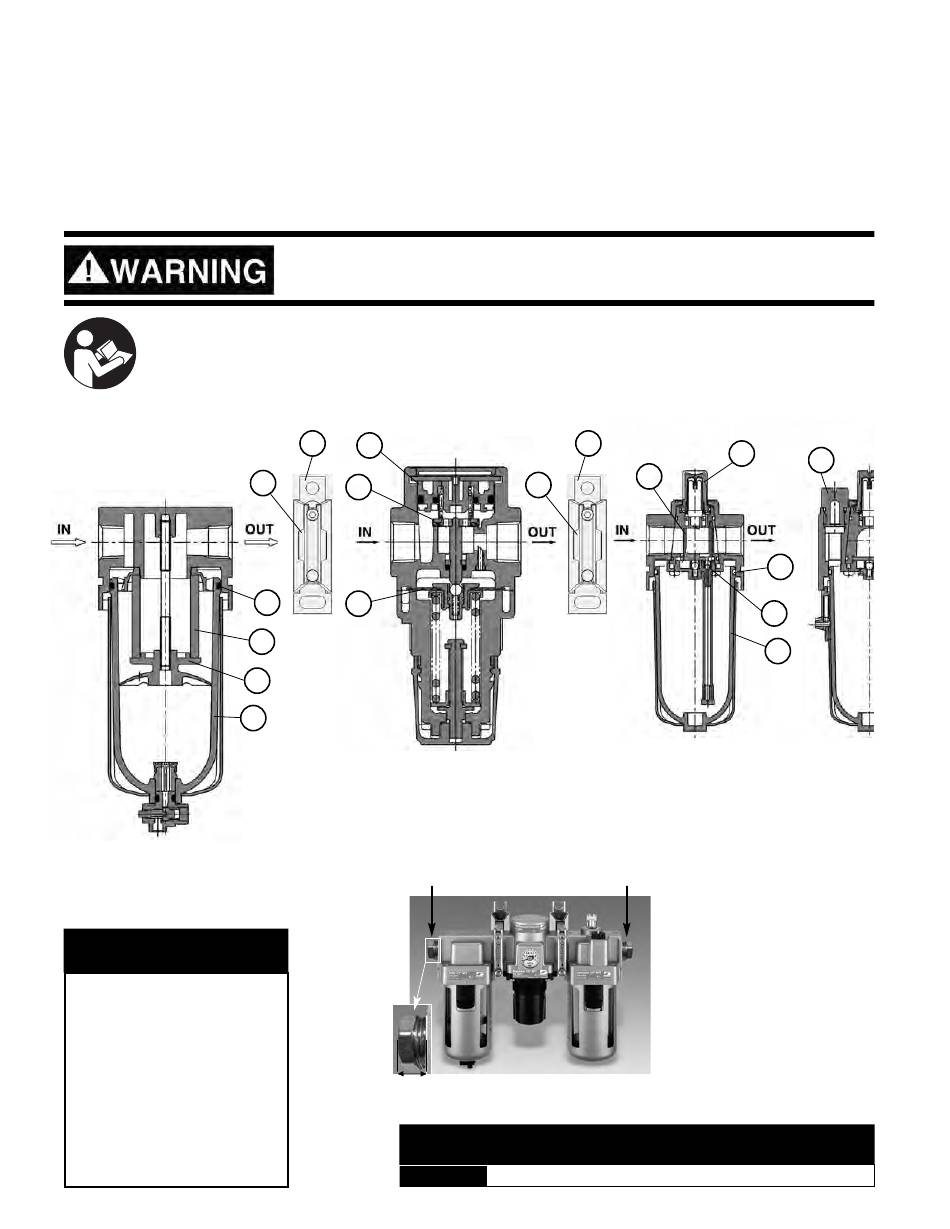

Filter
Index Key
No. Part # Description
1 10645 Filter Element (5 micron)
2 10646 Baffle
3 10647 Bowl O-Ring
4 10648 Bowl Assembly
5 10640 Valve Assembly
6 10641 Diaphragm Assembly
7 10642 Valve Guide Assembly
8 10657 Lubrication Plug Assembly
9 10658 Damper Retainer Assembly
10 10660 Bowl Assembly
11 10659 Damper Assembly
12 10656 Sight Dome Assembly
13 10655 (2)Mounting Bracket
10644 Pressure Guage (Not Shown)
14 10661 Seal
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Filter-Regulator-Lubricator
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air
tools (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to
Dynabradeʼs Warning/Safety Operating Instructions for more complete safety information.
13
7
14
5
3
6
1
2
4
Regulator
The two enclosed bushings are supplied to reduce the 1/2" NPT
openings of the enclosed filter/regulator/lubricator to 3/8" NPT.
.475"
(12 mm)
Inlet/Outlet
Port Size
1/2" NPT
Machine Parts and Operating Instructions
13
14
3/8" Reducer Bushings
(Use only if required)
Max.Air Pressure Max. Air Flow
145 PSIG/9.7 Bars 55 SCFM/1,558 LPM
Parts Page Reorder No. PD12•06
Effective February, 2012
12
11
3
9
10
Lubricator
IMPORTANT:
Do not overtighten the bushings
• The bushings will not engage entirely
into the 1/2" NPT opening after tightening.
• Refer to recommended tightening torque
chart on page 6.
Max. Air Temperature
140˚ F/60˚
8
