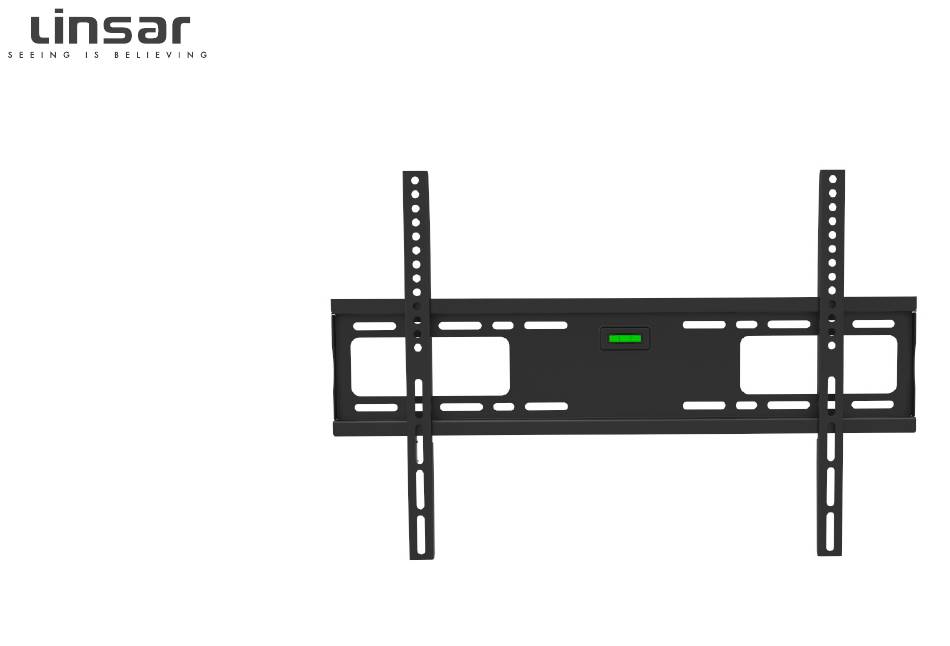

- Page 1 TV Install Kit MODEL: LSINS20 Installation Guide...
-
Page 2: Welcome
By doing so you now have the assurance and peace of mind that comes with purchasing a product made by one of the leading manufacturers. All products brought to you by Linsar are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by a comprehensive 1 Year Warranty. -
Page 3: Table Of Contents
Contents Welcome Unpack and Prepare What's in the box Parts List Product Overview Installation Pack (Assembly Hardware) Installation Installing the Bracket Preparation (for a Brick or Concrete Wall) Preparation (for a Wood Stud Wall) Attaching the Monitor Brackets to the TV Securing the TV Installing the Brush Wall Plate Specifications... -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the box Before setting up your new product, check you have everything: A. TV Wall Mount H. 3M HDMI Cable B. Screen Cleaning Kit 3M Antenna Cable C. Brush Wall Plate Case (2) J. Installation Pack (see page 6 for information) D. -
Page 5: Parts List
Parts List Product Overview • Suitable for TVs sized up to 86", weighing up to 60kg and supporting VESA 600 x 400mm Max. • Low profile, extending only 30mm (approx.) from the wall. Wall Plate TV Mounting Bracket PARTS LIST| 5... -
Page 6: Installation Pack (Assembly Hardware)
Installation Pack (Assembly Hardware) The illustration below shows the contents of the installation pack. These are the parts that you will need to assemble this wall mount. Some parts are not shown at the same scale. Bolt Bolt Bolt Bolt Bolt Bolt M5 x 16mm... -
Page 7: Installation
Installation Installing the Bracket Make sure you read and understand all instructions. Handle and use all materials strictly according to the instructions. If you do not understand these directions, or have any questions in relation to the safety of the installation, we recommend you contact a qualified professional. -
Page 8: Preparation (For A Brick Or Concrete Wall)
Preparation (for a Brick or Concrete Wall) Using the wall base plate as a template, mark four holes in locations as shown above. NOTE: Ensure that you align the bracket so that the spirit level is flat and even. 8 | INSTALLATION... - Page 9 Attaching to the Wall Hold the wall plate against the wall and align the holes in the plate to the holes drilled into the wall. Screw the wall plate to the wall with the self-tapping screws (G): insert them through the washers (J) into each masonry plug (H) in the wall and then tighten the screws.
-
Page 10: Preparation (For A Wood Stud Wall)
Preparation (for a Wood Stud Wall) Use a stud detector to locate the centre of the framing studs. Mark six holes in the locations as shown above. Use the wall base plate as a template. NOTE: When you are installing the wall mount to a wood stud wall, WARNING: You must spread consult your builder for advice. - Page 11 Attaching to the Wall Hold the wall plate to the wall and align the holes in the plate to the holes drilled into the wall. Screw the wall plate to the wall with the self-tapping screws (G), inserting them through the washers (J). Make sure the upper and lower raised sections of the plate sit away from the wall.
-
Page 12: Attaching The Monitor Brackets To The Tv
Attaching the Monitor Brackets to the TV Lay the TV face down. Check the back of the TV to find the appropriate mounting pattern. 2. Select the appropriate bolts (A/B/C/D/E/F) that fit the thread holes at the back of the TV (refer to the TVs manual to determine the correct bolt sizes). -
Page 13: Securing The Tv
Securing the TV Loosen the bolts on the bracket so that the bracket can sit securely on the wall plate. 2. Safely lift the TV and hook the mounting brackets onto the top edge of the wall plate. 3. Gently allow the screen to sit against the wall plate. -
Page 14: Installing The Brush Wall Plate
Installing the Brush Wall Plate Install brush wall plates to help conceal cables in the wall. This kit will come with: A. Brush Wall Plate Case (2) B. Brush Wall Plate (2) C. C Clip Wall Bracket (2) D. C Clip Wall Bracket Screws (4) E. - Page 15 Installation Steps 1. Place the brush wall plate against the area of the wall to be installed. Trace around the dotted lines and mark the holes as shown. Flip the wall plate over and repeat the above process. 2. Cut along the marked/dotted lines of the wall with a wallboard saw.
-
Page 16: Specifications
Specifications VESA Support Max. 600 x 400mm Maximum Load 60kg Distance From Wall 30mm Approx. Product Weight (including 2.4kg accessories) 16 | SPECIFICATIONS... -
Page 17: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can be a suffocation hazard for babies and young children, please ensure all packaging materials are out of reach and are safely disposed of.
