Summary of Contents for Fun Tech Innex Cube

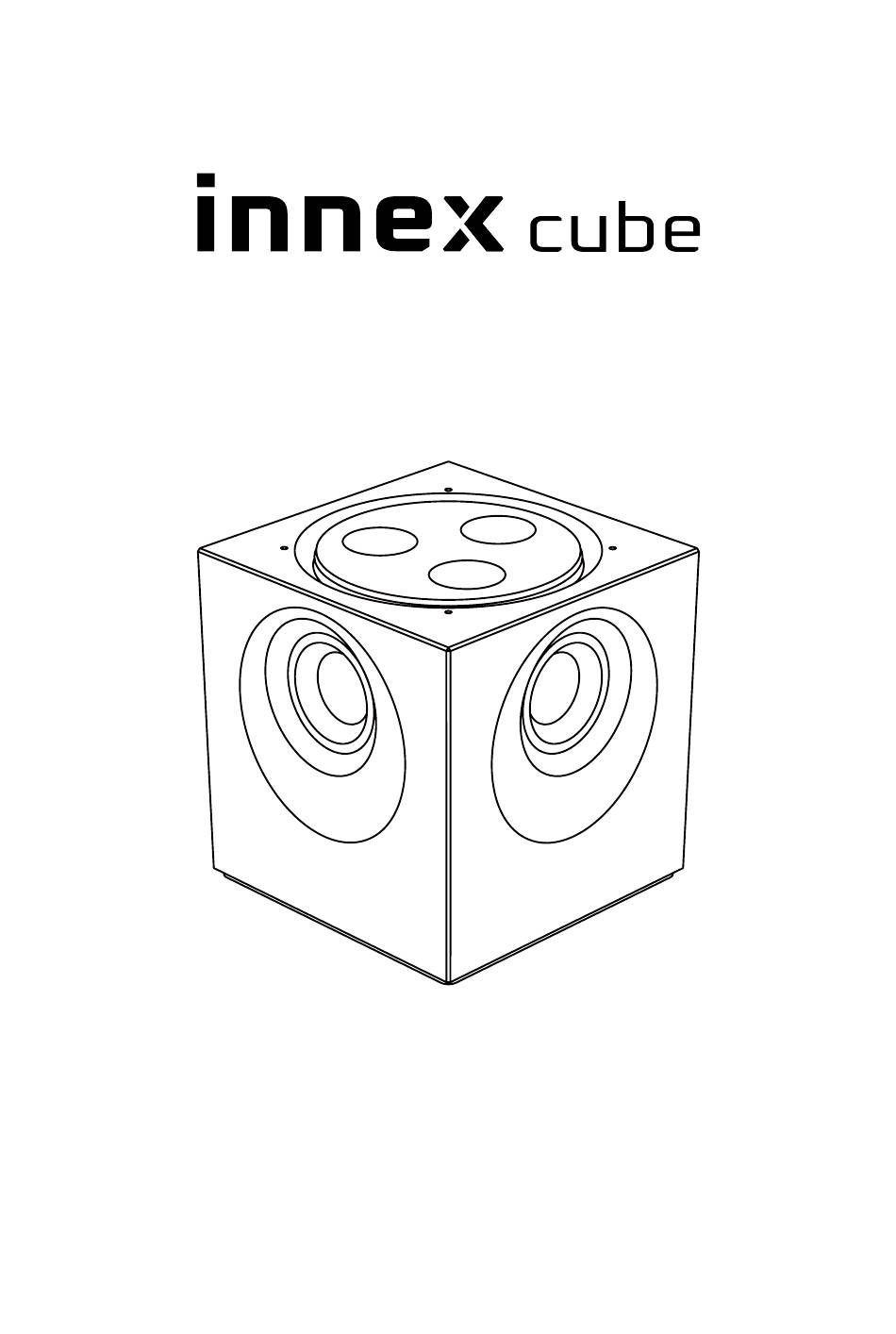

- Page 1 AI 360° 4K Conference Cam Quick Start Guide...
-
Page 2: Package Contents
AI algorithms capable of tracking multiple people simultaneously. Creating the most immersive conference experience from the table center, Innex Cube captures video and audio from a close distance, at the eye-level from a natural frontward angle. A patented real-time stitching algorithm technology stitches four high resolution sensors together to produce an ultra-clear and undistorted video. - Page 3 Overview Cameras Front Arrow IR Receivers Mode Switch USB Type-C Port Camera Off 1/4 Tripod Screw Hole Microphone Off Microphones LED Indicator...
- Page 4 Additional Pole (male-female) 30 cm 42 cm Pole (male-female) Pole (male-male) Wooden Base Pole Storage Kensington Nano Security Slot Back Velcro Cable Tie...
- Page 5 Remote Control Button Description Function Press to turn off and Camera on/off turn on the video Microphone Press to mute and on/off unmute the microphone Adjust the position of Arrow Keys the field of view Okay Confirm Get into AI mode or AI mode AI setting Get into manual mode or...
-
Page 6: Getting Started
1. Assemble Innex Cube with 2 or 3 poles. please consider using manual mode for the best experience. 2. Connect the USB cable. Plug the USB-C end to Innex Cube and USB-A end to a USB3.0 port of your computer. - Page 7 AI Dedicated Focus AI Stage Stage Area 90° FOV Front 70-150cm Stage auto-frames the presenter(s) in the stage area(180° centered on front Dedicated focus creates a close-up shot for each person in which Cube is arrow direction) and displays at the upper screen while showing the back capable of detecting up to 12 people at once, however it could only create 180°...
-
Page 8: General Settings
Manual 360° Panorama General Settings 360° Panorama shows a full 360-degree view. (Note: AI is not available under this mode) Manual 270°/ 180°/ 120°/ 90° General Settings Ignore Zone Setting Language 120° Anti-Flicker About Customize the field of view with 4 preset viewing angles. Press " "... - Page 9 Ignore Zone Setting Select an area to disable AI detection to prevent unnecessary distractions or maintain privacy. When the ignore zone is set, under Auto-Framing mode, Innex Cube will keep that area out of the frame. Apply Ignore Zone Under the AI Modes...
- Page 10 Language About Switch and select the desired language. Check the serial number and firmware version of the Innex Cube. Or restore factory setting. Anti-Flicker Switch the frequency between 50/60 Hz to avoid flicker.
- Page 11 AI Mode Settings Dedicated Focus While in AI modes, press again to enter Dedicated Focus outputs a close-up shot for each person, up to 8 boxes total. On-tracking is AI Mode Settings selected by default and the AI constantly auto-tracks people in the scene. The preview of the output is shown at the button right corner.
-
Page 12: Manual Mode Settings
Manual Mode Settings While in Manual modes, press again to enter Manual Mode Settings Stage Stage auto-frames the presenter(s) in the stage area (180° centered on Front Arrow direction) and displays at the upper screen while showing the back 180° view at the lower screen. On- Conversation tracking is selected by default and the AI constantly auto-tracks people in the Stage Area. -
Page 13: Specifications
Conversation 270°/ 180°/ 120°/ 90° Conversation splits participants from two sides into two equal 180° views. Use the up/down/ Customize the view angles from 270°/ 180°/ 120°/ 90°. Press " " to rotate through the view left/right arrow keys to adjust the center of the view. The preview of the output is shown at the angles and use up/down/left/right arrow key to adjust the center of the view. - Page 14 Important Safety, Compliance Flicker 50Hz/ 60Hz Auto Exposure and Warranty Information Auto White Balance *Read Manual Before Product Use* 1. Dedicated Focus Mode 2. Stage Mode Camera Embedded 3. Conversation Mode Mode 4. Auto-Framing 5. Manual Mode 360°/ 270°/ 180°/ 120°/ 90° Microphone Microphone 2 Omnidirectional Microphones...
- Page 15 FunTech Innovation Compliance. IC statement: For Product Safety, EMC, RF and Energy information, go to www.funtechinnovation. CAN ICES003 (B) / NMB003 Class (B) com/compliance Maintenance is not required for product compliance. This product complies with relevant legal requirements for Restriction of Hazardous This device complies with Industry Canada license exempt RSS standard(s) Substances (RoHS) and management of waste electronic and electrical equipment Operation is subject to the following two conditions:...
- Page 16 WARNING Safety Instruction Do not touch the power cable with wet hands. For your safety, please read the following instruction before you use the product. Serious injury or property damage may be caused by improper operations. Do not try Do not install the product in high temperature environments. to repair the product on your own.
- Page 17 Visit FTI website https://funtechinnovation.com...
