Summary of Contents for iCleanse Swift
- Page 1 User Guide for your Swift, Swift XL, and Swift Mini...
-
Page 2: Table Of Contents
Meet your iCleanse Swift Indicators Tech Specs Getting Started Setting up your Swift Unit Accessing the Settings Menu Setting the Disinfection Time Using and Maintaining your Swift Unit Disinfecting Devices Lamp Status & Replacement Guidelines for Use Troubleshooting Warranty and Registration Customer Support... -

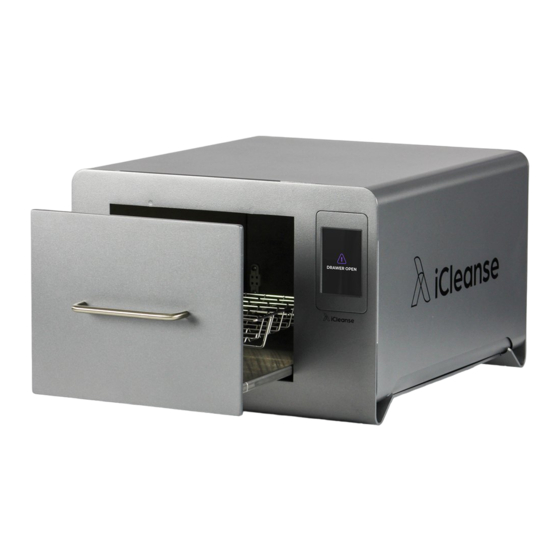

Page 3: About Your Icleanse Swift Unit
Swift units have been designed for minimal contact with what you place in it, allowing maximum surface coverage by germicidal light during the disinfection cycle. Please read through this guide thoroughly to ensure proper use of your Swift unit. -
Page 4: Indicators
About your iCleanse Swift Unit Indicators iCleanse Swift units include an intuitive touch-screen interface that visibly shows the status of the device and if there are any errors. The screen will turn off after one minute of idle use. To wake the unit back up, touch anywhere on the screen or open the drawer. -
Page 5: Tech Specs
About your iCleanse Swift Unit Tech Specs Model Swift Dimensions 20 in x 17.5 in x 8.75 in / 50.8 cm x 44.5 cm x 22 cm Weight 35.5 lbs / 16.1 kg Basket Accommodations 11 in x 13 in x 2.75 in / 28 cm x 33 cm x 7 cm Disinfection Cycle Time User Defined –... - Page 6 About your iCleanse Swift Unit Swift XL Swift Mini 26 in x 17.5 in x 8.75 in / 66 cm x 44.5 cm x 22 cm 15.5 in x 17.5 in x 11 in / 39.4 cm x 44.5 cm x 28 cm 38 lbs / 17.2 kg...
-
Page 7: Getting Started
Getting Started Setting up your Swift Unit Ensure the Swift unit is on a level surface and has 3 to 4 inches of open space behind to allow for proper airflow for the cooling fan. Remove the protective cover from the touchscreen. - Page 8 Getting Started Swift Start Button START Starts disinfection cycle 4,000 CYCLES Settings Icon Countdown Ticker REMAINING Access to the settings menu Displays remaining cycles Figure 01. Main Screen...
-
Page 9: Accessing The Settings Menu
Getting Started Accessing the Settings Menu To access the settings menu (Figure 02) make sure your unit is not in a disinfection cycle and is displaying the main screen. In the bottom left corner is a gear icon. Tap this icon and input the default pass code (1234) and tap enter. From the settings menu, you can replace lamps, set the disinfection time, view unit information, access customer support, and change the default pass code. - Page 10 Getting Started SETTINGS Lamp Replacement Disinfection Time Unit Information Customer Support Change Passcode HOME Figure 02. Settings Menu...
-
Page 11: Setting The Disinfection Time
15 seconds for most pathogens including MRSA and human conronavirus in the Swift and Swift Mini 30 seconds for most pathogens in the Swift XL 90 - 120 seconds to be sporicidal *Tested against COVID-19 surrogate OC43 *Swift XL is not recommended for killing C. Diff. -
Page 12: Using And Maintaining Your Swift Unit
Using and Maintaining your Swift Unit Disinfecting To start a disinfection cycle, open the drawer and place your device(s) on the basket. Close the drawer and tap “Start” on the main screen. Once you’ve started a cycle, an “Initializing” screen will display, and then a “Disinfecting”... -
Page 13: Lamp Status & Replacement
Using and Maintaining your Swift Unit Lamp Status & Lamp Replacement Each set of lamps has a lifespan of 4,000 cycles. The bottom right corner of the main screen indicates the number of cycles left. When lamps reach 500 cycles remaining, an icon will appear as a reminder that new lamps will be needed. -
Page 14: Guidelines For Use
Using and Maintaining your Swift Unit Guidelines for Use Non-Critical Devices: iCleanse Swift units should be used on devices classified as non-critical. “Non-Critical” medical devices are devices that are in contact with unbroken skin only. General Purpose Disinfection: This is described as a germicide intended to process non-critical medical devices and equipment surfaces. -
Page 15: Troubleshooting
Troubleshooting Troubleshooting If you are having trouble with your Swift unit, please see the following solutions. Drawer is not self closing Open the drawer and check that the self-closing drawer slides are in the correct position (extended toward the front of the unit). If they are not, slide them forward and rotate to the left until the slide clicks into place. -
Page 16: Warranty And Registration
Warranty and Registration Warranty and Registration For iCleanse Swift, Swift XL, and Swift Mini Warranty Each iCleanse product comes with a full 1-year warranty upon registration of your product. For more info visit www.icleanse.com/warranty. Registration Please visit www.icleanse.com/warranty to register your new Swift unit within 30 days of your purchase to activate your one year warranty. -
Page 17: Customer Support
We’re Here to Help iCleanse offers comprehensive support 800.969.1166 from our in-house customer experience team. Available Monday thru Friday icleanse.com/support 9:00am - 5:00pm EST. support@icleanse.com Please keep your model number, serial number, and purchase date on hand for any future support. - Page 18 Connect with Us Follow our social media accounts for the most up to date news. /icleansellc @_icleanse @_icleanse /icleanse icleanse.com © 2021...
