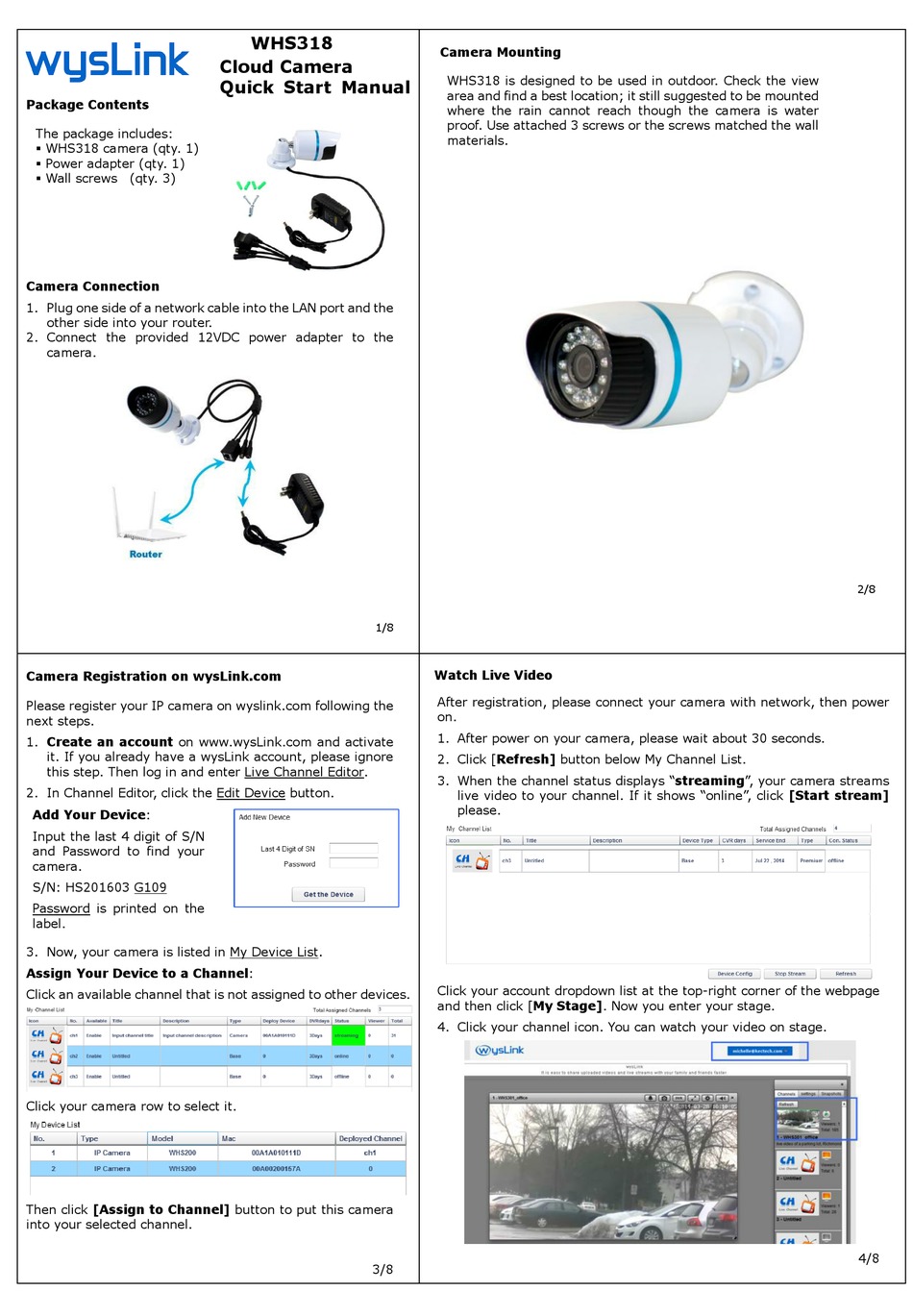

wysLink WHS318 Quick Start Manual

Package Contents
The package includes:
 WHS318 camera (qty. 1)
 Power adapter (qty. 1)
 Wall screws (qty. 3)
Camera Connection
1. Plug one side of a network cable into the LAN port and the
other side into your router.
2. Connect the provided 12VDC power adapter to the
camera.
Camera Registration on wysLink.com
Please register your IP camera on wyslink.com following the
next steps.
1. Create an account on www.wysLink.com and activate
it. If you already have a wysLink account, please ignore
this step. Then log in and enter Live Channel Editor.
2. In Channel Editor, click the Edit Device button.
Add Your Device:
Input the last 4 digit of S/N
and Password to find your
camera.
S/N: HS201603 G109
Password is printed on the
label.
3. Now, your camera is listed in My Device List.
Assign Your Device to a Channel:
Click an available channel that is not assigned to other devices.
Click your camera row to select it.
Then click [Assign to Channel] button to put this camera
into your selected channel.
WHS318
Cloud Camera
Quick Start Manual
1/8
3/8
Camera Mounting
WHS318 is designed to be used in outdoor. Check the view
area and find a best location; it still suggested to be mounted
where the rain cannot reach though the camera is water
proof. Use attached 3 screws or the screws matched the wall
materials.
Watch Live Video
After registration, please connect your camera with network, then power
on.
1. After power on your camera, please wait about 30 seconds.
2. Click [Refresh] button below My Channel List.
3. When the channel status displays "streaming", your camera streams
live video to your channel. If it shows "online", click [Start stream]
please.
Click your account dropdown list at the top-right corner of the webpage
and then click [My Stage]. Now you enter your stage.
4. Click your channel icon. You can watch your video on stage.
2/8
4/8
