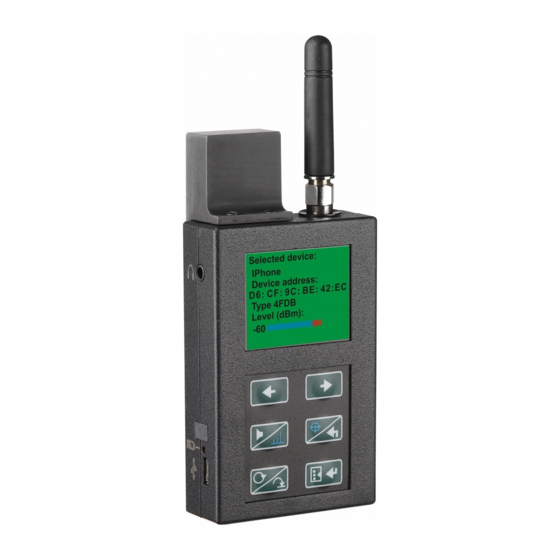

ST 167 "BETTA"
ST167W5
SEARCH RECEIVER
TECHNICAL DESCRIPTION AND
OPERATING MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST167W5 and is the answer not in the manual?

Questions and answers

Related Manuals for SIGNAL-T ST167W5

Summary of Contents for SIGNAL-T ST167W5

  • Page 1 ST 167 “BETTA” ST167W5 SEARCH RECEIVER TECHNICAL DESCRIPTION AND OPERATING MANUAL...

  • Page 2: Table Of Contents

    Technical description and operating manual ST 167 and ST167W5 CONTENT INTRODUCTION FUNCTIONALITY SPECIFICATIONS COMPLETE SET DESIGN AND OPERATION 5.1 OPERATION MODES 5.2 LABELS AND SEALING 5.3 PACKAGING ST167 OPERATION 6.1 CONTROLS AND INDICATORS 6.2 POWER SUPPLY 6.3 "AUTOMATIC" OPERATION MODE 6.4 "MANUAL"...

  • Page 3: Introduction

    Technical description and operating manual ST 167 and ST167W5 1 INTRODUCTION Present document contains information necessary for the proper use of ST167, ST167W5 (hereinafter – ST167, if isn’t otherwise noted). Carefully read it before using and keep it as your further reference manual.

  • Page 4: Functionality

    Technical description and operating manual ST 167 and ST167W5 2 FUNCTIONALITY ST167 is designed for: • Detection, identification and localization of the sources of the following types of signals: cellular standards (cellular phones and modems SDMA450, GSM 900, 1800, 3,4 and 5G), wireless data transmission (WLAN 2.4 and 5GHz , BLUETOOTH) and microcellular wireless communication standard DECT.

  • Page 5: Specifications

    Technical description and operating manual ST 167 and ST167W5 3 SPECIFICATIONS 3.1 Frequency range, MHz 50-6000 3.2 Threshold sensitivity, dBm -90 (1000MHz) - 70 (5000MHz) Input signal max level, dBm 3.4 Bandwidth, MHz 1, 8, 20 3.5 Frequency measuring accuracy, kHz 3.6 Max relay contacts resistance, Ohm*...

  • Page 6: Design And Operation

    Technical description and operating manual ST 167 and ST167W5 5 DESIGN AND OPERATION ST167 is a superheterodyne receiver with digital control and a color OLED display. It detects signals with digital data transmission protocols, and the entire frequency band of analog signals.

  • Page 7: St167 Operation

    Technical description and operating manual ST 167 and ST167W5 6 ST167 OPERATION 6.1 CONTROLS AND INDICATORS 6.1.1 INDICATION The unit operation results are shown on the OLED color display with the resolution of 160X128. Power supply status indicator (see 6.2) is shown in all modes in the upper right corner of the display (see fig.1), as well as the enable/disable sound control (for volume control...

  • Page 8: Power Supply

    Technical description and operating manual ST 167 and ST167W5 6.1.2 CONTROLS The power switch is located on the side surface of the main unit. When you turn on the unit (Position "ON") the following message is briefly displayed:"ST167 Version X.X", where X.X is the software version of the main unit.
  • Page 9 Technical description and operating manual ST 167 and ST167W5 In the window that appears (Fig. 3), the first line, “Region,” allows you to set cellular standards based on location. The list is being updated (See updates on the site). Fig.3 Also, for automatic setting of standards, the ST181 base station analyzer is used.
  • Page 10 Technical description and operating manual ST 167 and ST167W5  Set the schedule in accordance with the "TABLE 4" in the "MENU" > "System ..." > "Time.." > "Schedule.". In the upper right corner you will see the "scheduled operation" icon: 6.4 "MANUAL"...
  • Page 11 Technical description and operating manual ST 167 and ST167W5 The view in the absence of exceeding threshold by signal is presented on Fig 10. The top line shows the range and in brackets, the band of analysis (MHz). Fig.10 The threshold is set in the "Threshold .." - "User,s band" (Table 2). Line threshold displayed on the spectrogram (Fig.

  • Page 12: Manual" Operation Mode

    Technical description and operating manual ST 167 and ST167W5 6.5 "SEARCH" OPERATION MODE Entrance to the "SEARCH" mode by pressing the button. Scanning is finished. . The status of the detected signal will be displayed regardless of its level, even if it has fallen below the threshold level.

  • Page 13: Event Log" Operation Mode

    Technical description and operating manual ST 167 and ST167W5 The Memory is organized in 30 banks with 999 events each. Bank number "1" always contains the newest events, bank number "30" -- the oldest ones. If necessary, start recording a new bank by selecting this option in the MENU.

  • Page 14: Sms\Gprs Operation Mode

    Technical description and operating manual ST 167 and ST167W5 If the value does not exceed 250 conventional units (about 5 seconds), then the signal will be adopted for SMS or GPRS message, and is recorded in the bottom of the screen (Figure 21).

  • Page 15: Wi-Fi" Operating Mode (Only For St167W5)

    Technical description and operating manual ST 167 and ST167W5 Also, update stops by pressing button (appearance of selection rectangle on first line).  Grey – color of WAP, which level is lower than noise level on given channel. This indication is shown for around 30 sec.

  • Page 16: Blocker (Jammer) Detection

    Technical description and operating manual ST 167 and ST167W5 6.11 BLOCKER (JAMMER) DETECTION When the «J» sign is selected, the unit detects operating blockers of cellular GSM, GPS and GLONASS receivers. The GSM cellular blockers are detected by blocker broadband radiation in at least two different frequency ranges (900 and 1800MHz) of the base stations.

  • Page 17: External Devices Operation (Only For St167R)

    Technical description and operating manual ST 167 and ST167W5 6.13 MENU Enter the menu and confirm your selection by pressing the button, exit by . Select one of the five menu items: "Band.." - signal selection (see Table 1). "Threshold.." - setting the threshold for signal detecting (see Table 2).
  • Page 18 Technical description and operating manual ST 167 and ST167W5 TABLE 2 Threshold Description Option Value Default settins Setting cellular detection Depending on Cellurar from-90 to -5dB thresholds standard DECT Set DECT detection threshold -45dB from-80 to -5dB Set WLAN 2.4GHz...
  • Page 19 Technical description and operating manual ST 167 and ST167W5 TABLE 4 Option Description Default settings When selected provides access to event log View Permits the entry record to the event log Not selected Record Transfer of records events in the new bank...
  • Page 20 Technical description and operating manual ST 167 and ST167W5 TABLE 5 System Default Value Option Description settings Bright Sets the brightness level for the backlight from 10 to 100% with increments of 10 Screen OFF time Set the time to automatically turn...

  • Page 21: Recommendations

    Technical description and operating manual ST 167 and ST167W5 7 RECOMENDATIONS 7.1 GENERAL RECOMENDATIONS  During surveillance devices search it should be considered that ST167 is intended for only RADIOTRANSMITTING devices search. Excluding this class of surveillance devices there are devices, which are using wirelines of different purpose, optical etc.
  • Page 22 Technical description and operating manual ST 167 and ST167W5 7.2 RECOMENDATIONS FOR DRT SEARCH All “digital” standards are used for illegal data transmission. A lot of factors contribute to this, primary of them are:  Availability  Relatively low price ...
  • Page 23 Technical description and operating manual ST 167 and ST167W5 WLAN signals detection with ST167 is done by selecting «WLAN» («W» sign) DRT standard on lower line of the display. After selecting consistent WLAN standard channels scanning will start. As it seen from « Brief technical information» amount of channels in 5GHz range is three times bigger than amount of channels in 2.4GHz, which leads to considerable time needed for this range analysis.
  • Page 24 Technical description and operating manual ST 167 and ST167W5 Select, in manual mode, «W» and 2.4GHz frequency range. On display (Fig.32) signal level with maximum value is indicated (result of subsequent channles scanning). This level can be a sum of several signals from: ...
  • Page 25 Technical description and operating manual ST 167 and ST167W5 Set up time: “MENU” – “System” – “Time” – “Set clock”. Brief technical information WIFI connection, considered to the tasks, solvable by ST167, have these characteristics:  Router/access point emits always, RD only at data transfer moment.
  • Page 26 Technical description and operating manual ST 167 and ST167W5  Max authorized RD signal level (2.4 GHz) is 20dB (100mW), router – 26dB (400mW). Max RD working distance – up to 400m. In building, with acceptance of weakening given in table, is about 50 meters.
  • Page 27 Technical description and operating manual ST 167 and ST167W5 7.3 RECOMENDATIONS FOR ART SEARCH It is expedient to make primal signal analysis before ART source detection with the aim of excluding benign signals. Signs of benign signals are: modulation absence, tele and radio audio signals presence, different radio conversations, which are clearly not related to the exаminee room.
  • Page 28 Technical description and operating manual ST 167 and ST167W5  Undefined place of tracker on vehicle. It can be integrated inside of vehicle interior or be attached outside – on a bumper or underbody, connected by strong magnets.  Usage of blockers with aim of forced tracker activation is not always effectively. Depending on GSM...
  • Page 29 Technical description and operating manual ST 167 and ST167W5 The lower right panel provides an indication of the ST167 in real time in graphical form: At the top of the window are the buttons: • "Maximize" provides the extension of this panel in full screen.
  • Page 30 Technical description and operating manual ST 167 and ST167W5 When you select in the “MANUAL” mode the detection of analog signals “SCAN” in the upper right corner appears the button “SPECTRUM”. When it is pressed, a window appears displaying the spectrogram of the selected frequency range.
  • Page 31 Technical description and operating manual ST 167 and ST167W5 The lower left panel is a virtual ST167. When the connection with the device is established, the ST16 7 is controlled using the mouse. When clicked the main ST167 Menu dialog box appears.

  • Page 32: Operation With A Computer

    Technical description and operating manual ST 167 and ST167W5 The analysis is carried out continuously until a new access point appears (highlighted in red). Then the scan stops. Resume scanning - clicking on the “New request” button. Data is saved in the “Excel” format after clicking on the button “Export data to CSV file (Excel).”...

  • Page 33: Warranty

    Technical description and operating manual ST 167 and ST167W5 10 WARRANTY 10.1 The manufacturer ensures compliance of each unit to all technical requirements within 12 months from the sale date. 10.2 Within the warranty period the manufacturer shall provide free repair for the unit, its subsidiary and additional parts, up to full unit replacement, if necessary.
