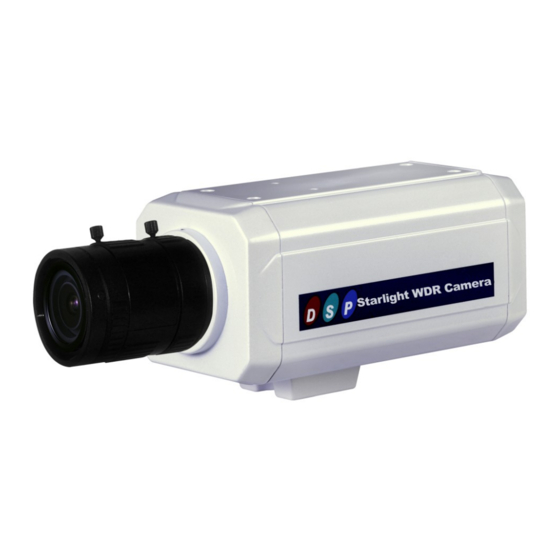

iVision IV-WD1070A User Manual

Professional WDR Box Camera
Feature:
1/3" Sony Double Scan 960H CCD

Ultra High Resolution 700TVL

Super Low Sensitivity 0.00003Lux

Ultra Wide Dynamic Range

3D+2D Digital Noise Reduction

Full OSD Menu operation via RS485 or OSD joystick

Privacy Zone, Motion Detection

Installation:
To prevent shock or damage to the waterproof body, tighten all the screws and cover

Adjust the visor to prevent the lens from direct sunlight

Do not directly touch the front glass. To clean the dust, wipe with soft cloth with alcohol.

Don't install it in the place where dithering and shake often

Don't install it in the place where temperature is above 50°C or below –20°C

Video line tie-in and DC tie-in must be avoided to touch water.

If abnormal, please power off and contact the manufacturer

N o t e : Non-regulated power supply may cause camera damaged.

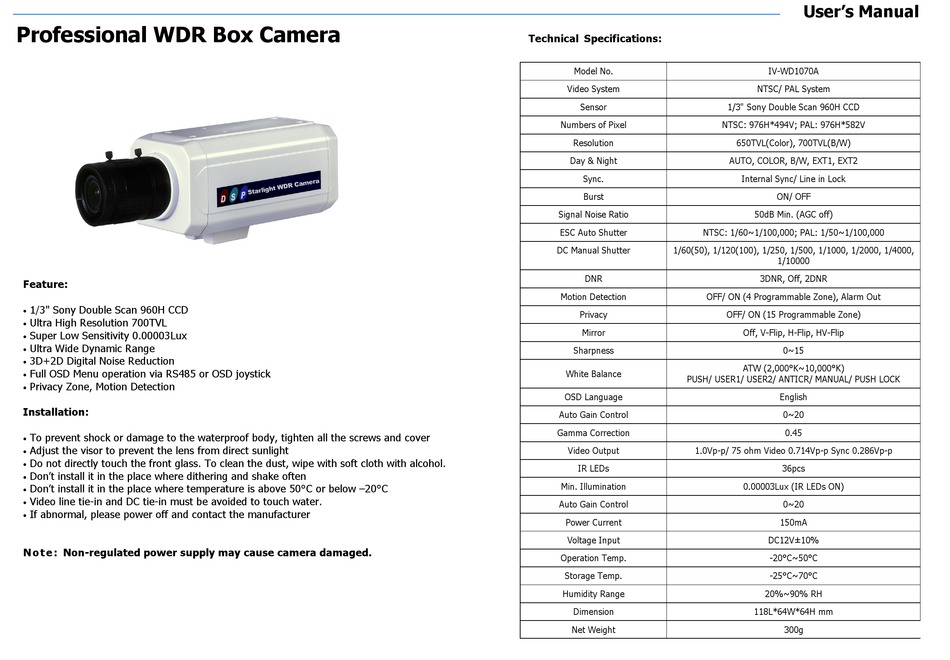

Technical Specifications:
Model No.
Video System
Sensor
Numbers of Pixel
Resolution
Day & Night
Sync.
Burst
Signal Noise Ratio
ESC Auto Shutter NTSC: 1/60~1/100,000; PAL: 1/50~1/100,000
DC Manual Shutter 1/60(50), 1/120(100), 1/250, 1/500, 1/1000, 1/2000, 1/4000,
DNR
Motion Detection OFF/ ON (4 Programmable Zone), Alarm Out
Privacy
Mirror
Sharpness
White Balance
PUSH/ USER1/ USER2/ ANTICR/ MANUAL/ PUSH LOCK
OSD Language
Auto Gain Control
Gamma Correction
Video Output 1.0Vp-p/ 75 ohm Video 0.714Vp-p Sync 0.286Vp-p
IR LEDs
Min. Illumination
Auto Gain Control
Power Current
Voltage Input
Operation Temp.
Storage Temp.
Humidity Range
Dimension
Net Weight
User's Manual
IV-WD1070A
NTSC/ PAL System
1/3" Sony Double Scan 960H CCD
NTSC: 976H*494V; PAL: 976H*582V
650TVL(Color), 700TVL(B/W)
AUTO, COLOR, B/W, EXT1, EXT2
Internal Sync/ Line in Lock
ON/ OFF
50dB Min. (AGC off)
1/10000
3DNR, Off, 2DNR
OFF/ ON (15 Programmable Zone)
Off, V-Flip, H-Flip, HV-Flip
0~15
ATW (2,000°K~10,000°K)
English
0~20
0.45
36pcs
0.00003Lux (IR LEDs ON)
0~20
150mA
DC12V± 10%
-20°C~50°C
-25°C~70°C
20%~90% RH
118L*64W*64H mm
300g
