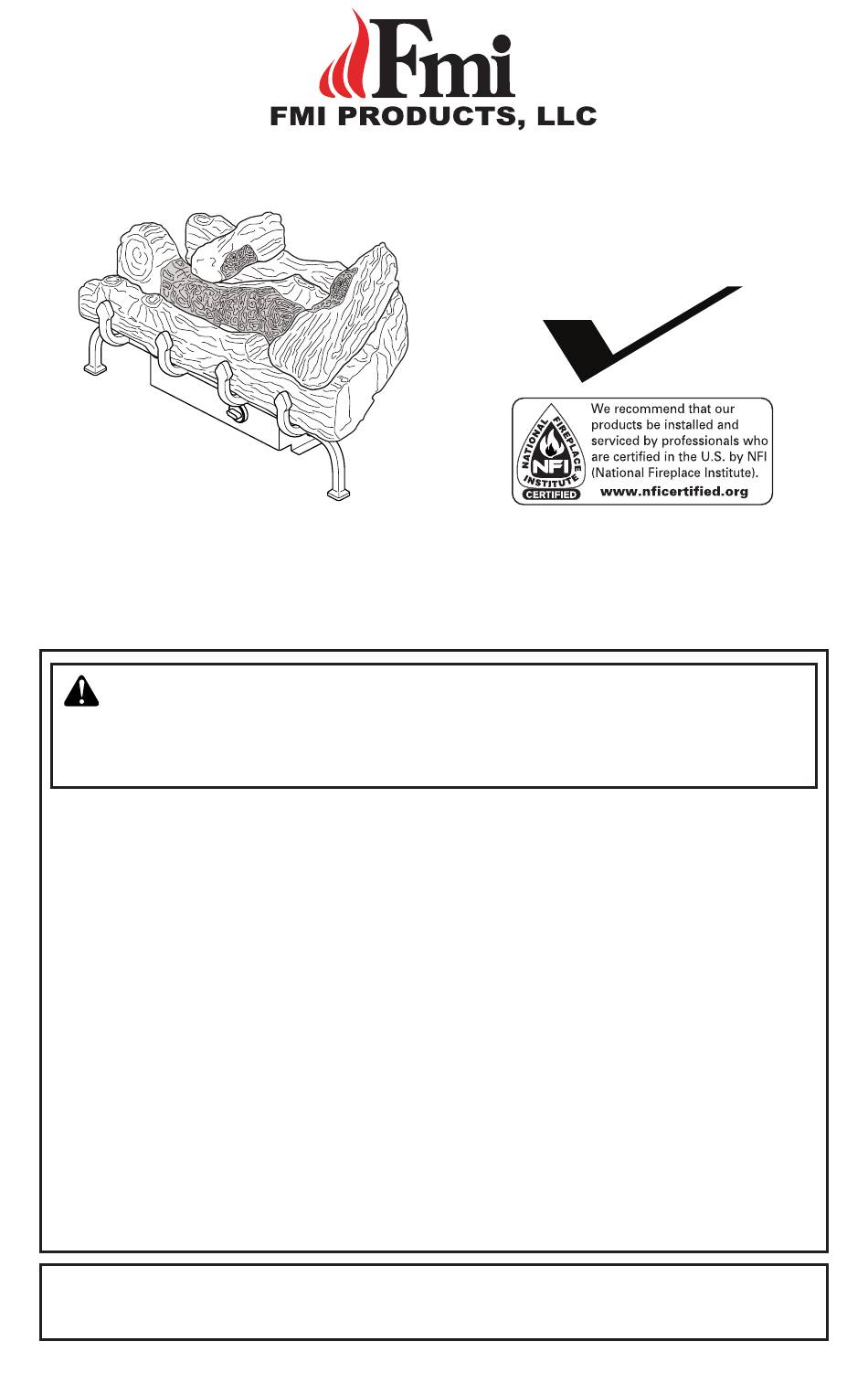

UNVENTED (VENT-FREE) GAS LOG HEATER
OWNER'S OPERATION AND INSTALLATION MANUAL
Also Design-Certified
As Vented Decorative
Appliances
18" AND 24" VARIAbLE MANUAL CONTROL MODELS
HDL18NA, HDL18PA, HDL24NA, HDL24PA
f i r e - p a r t s . c o m
VDb18Nb, VDb18Pb, VDb24Nb AND VDb24Pb
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire
department.
— Installation and service must be performed by a quali-
fied installer, service agency or the gas supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
For more information, visit www.fmiproducts.com
PFS
®
US
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FMI HDL18NA
Summary of Contents for FMI HDL18NA
- Page 1 As Vented Decorative Appliances 18" AND 24" VARIAbLE MANUAL CONTROL MODELS HDL18NA, HDL18PA, HDL24NA, HDL24PA f i r e - p a r t s . c o m VDb18Nb, VDb18Pb, VDb24Nb AND VDb24Pb WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Table Of Contents
TAbLE OF CONTENTS Safety ..............2 Troubleshooting ..........20 Product Identification ........... 5 Parts ..............24 Local Codes............5 Specifications ............ 26 Unpacking............5 Replacement Parts ..........26 Product Features ..........5 Technical Service..........26 Air For Combustion and Ventilation ..... 6 Service Hints ............. - Page 3 SAFETy Continued WARNING: Do not use a WARNING: This product blower insert, heat exchanger contains and/or generates insert or other accessory not ap- chemicals known to the State proved for use with this heater. of California to cause cancer or birth defects or other reproduc- tive harm.
- Page 4 SAFETy Continued 1. This appliance is only for use with the type 11. Before using furniture polish, wax, carpet of gas indicated on the rating plate. This cleaner or similar products, turn heater off. If appliance is not convertible for use with heated, the vapors from these products may other gases.
-
Page 5: Product Identification
3. Check heater for any shipping damage. If information. heater is damaged call FMI PRODUCTS, LLC at 1-866-328-4537 for replacement 1. Remove logs and heater base assembly parts before returning to dealer. -
Page 6: Air For Combustion And Ventilation
AIR FOR COMbUSTION AND VENTILATION Unusually tight construction is defined as WARNING: This heater shall construction where: not be installed in a room or space a. walls and ceilings exposed to the out- unless the required volume of in- side atmosphere have a continuous door combustion air is provided water vapor retarder with a rating of one perm (6x10... - Page 7 AIR FOR COMbUSTION AND VENTILATION Continued 1. Determine the volume of the space (length room or add ventilation grills between rooms. See Ventilation Air From Inside Building. x width x height). B. Vent room directly to the outdoors. See Length x Width x Height =__________cu. ft. Ventilation Air From Outdoors, page 8.
-
Page 8: Installation
AIR FOR COMbUSTION AND VENTILATION Continued Ventilation Air From Outdoors NOTICE: State or local codes may Provide extra fresh air by using ventilation only allow operation of this appli- grills or ducts. You must provide two perma- ance in a vented configuration. nent openings: one within 12"... - Page 9 INSTALLATION Continued LOG SIZING REQUIREMENTS CAUTION: This heater cre- Minimum Firebox Size ates warm air currents. These Height 17", Depth 13.5", Front Width 28", currents move heat to wall sur- Rear Width* 20.5" faces next to heater. Installing *Measured at 13.5" Depth heater next to vinyl or cloth wall Carefully follow the instructions below.
- Page 10 INSTALLATION Continued MINIMUM NONCOMBUSTIBLE If Using Mantel MATERIAL CLEARANCES You must have noncombustible material(s) above the fireplace opening. Noncombustible If Not Using Mantel materials (such as slate, marble, tile, etc.) must Note: If using a mantel, proceed to If Using be at least 1/2"...
- Page 11 INSTALLATION Continued INSTALLING DAMPER CLAMP NOTICE: Surface temperatures ACCESSORY FOR VENTED of adjacent walls and mantels be- OPERATION come hot during operation. Walls Note: When used as a vented heater, ap- and mantels above the firebox pliance must be installed only in a solid-fuel may become hot to the touch.
- Page 12 INSTALLATION Continued See chart below for minimum permanent flue CAUTION: Do not pick up opening you must provide. Attach damper clamp so the minimum permanent flue open- heater base assembly by the ing will be maintained at all times. burner. This could damage heater.
- Page 13 INSTALLATION Continued 7. Mark screw locations through holes in WARNING: For natural gas mounting brackets (see Figure 11). If installing in a brick-bottom fireplace, mark units, never connect heater to screw locations in mortar joint of bricks. private (non-utility) gas wells. 8.
- Page 14 INSTALLATION Continued We recommend that you install sediment trap CAUTION: Use only new, in supply line as shown in Figure 13. Locate black iron or steel pipe. Inter- sediment trap where it is within reach for cleaning. Install in piping system between nally-tinned copper tubing may fuel supply and heater.
- Page 15 INSTALLATION Continued PRESSURE TESTING GAS SUPPLY 4. Check all joints from gas meter (natural PIPING SYSTEM gas) or propane/LP supply to equipment Test Pressures In Excess Of 1/2 PSIG shutoff valve (see Figure 15 or 16). Apply (3.5 kPa) a commercial leak detection solution to all 1.
- Page 16 INSTALLATION Continued INSTALLING LOGS 3. Place front log (#3) onto grate as shown in Figure 18. WARNING: Failure to posi- 4. Place left top log (#4) as shown in Figure tion the parts in accordance 19. Match square peg on top of rear log (#1) with square hole on bottom of left top with these diagrams or failure log (#4).
-
Page 17: Operation
OPERATION FOR YOUR SAFETY LIGHTING READ BEFORE LIGHTING INSTRUCTIONS WARNING: If you do not fol- WARNING low these instructions exactly, • If fireplace has glass doors, never operate this heater with a fire or explosion may result glass doors closed. If you op- causing property damage, per- erate heater with doors closed, sonal injury or loss of life. -
Page 18: Inspecting Burners
OPERATION Continued 5. Press in control knob and turn counter- • If control knob does not pop out when clockwise to the PILOT position released, contact a qualified service (see Figure 20). The ignitor will spark person or gas supplier for repairs. once. -
Page 19: Cleaning And Maintenance
INSPECTING bURNERS Continued MAIN BURNER Note: Pilot flame on natural gas units will have a slight curve, but flame should be blue and Periodically inspect all burner flame holes have no yellow or orange color. with heater running. All slotted burner flame holes should be open with yellow flame pres- BURNER PRIMARY AIR HOLES ent. -
Page 20: Troubleshooting
CLEANING AND MAINTENANCE Continued 5. Blow air into primary air holes on injector LOGS holder. • If you remove logs for cleaning, refer to Install- 6. In case any large clumps of dust have now ing Logs, page 16, to properly replace logs. been pushed into burner, repeat steps 3 •... - Page 21 TROUbLESHOOTING Continued OBSERVED PROBLEM POSSIBLE CAUSE REMEDY ODS/pilot lights but flame 1. Control knob not fully 1. Press in control knob fully goes out when control knob pressed in is released 2. Control knob not pressed in 2. After ODS/pilot lights, keep long enough control knob pressed in 30 seconds...
- Page 22 TROUbLESHOOTING Continued OBSERVED PROBLEM POSSIBLE CAUSE REMEDY Slight smoke or odor during 1. Not enough air 1. Check burner for dirt and initial operation debris. If found, clean burner (see Cleaning and Maintenance, page 19) 2. Gas regulator defective 2. Replace gas regulator 3.
- Page 23 TROUbLESHOOTING Continued WARNING: If you smell gas • Shut off gas supply. • Do not try to light any appliance. • Do not touch any electrical switch; do not use any phone in your building. • Immediately call your gas supplier from a neighbor’s phone. Fol- low the gas supplier’s instructions.
-
Page 24: Parts
PARTS MODELS HDL18NA, HDL18PA, HDL24NA, HDL24PA, VDB18NB, VDB18PB, VDB24NB AND VDB24PB f i r e - p a r t s . c o m www.fmiproducts.com 125001-01A... - Page 25 PARTS This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 26 of this manual. NO. PART NO. DESCRIPTION QTY. Log Base • • • • 120783-01 Cast Iron Grate •...
-
Page 26: Specifications
Contact authorized dealers of this product. • model and serial numbers of your heater If they can’t supply original replacement • how heater was malfunctioning part(s), call FMI PRODUCTS, LLC at 1-866- • type of gas used (propane/LP or natural 328-4537. gas) f i r e - p a r t s . -
Page 27: Notes
NOTES _____________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________ f i r e - p a r t s . c o m ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _____________________________________________________ ______________________________________________________... -
Page 28: Warranty
FMI PRODUCTS, LLC’s liability is limited to the purchase price of the product, and FMI PRODUCTS, LLC shall not be liable for any other damages whatsoever under any circumstances including indirect, incidental, or consequential damages.
