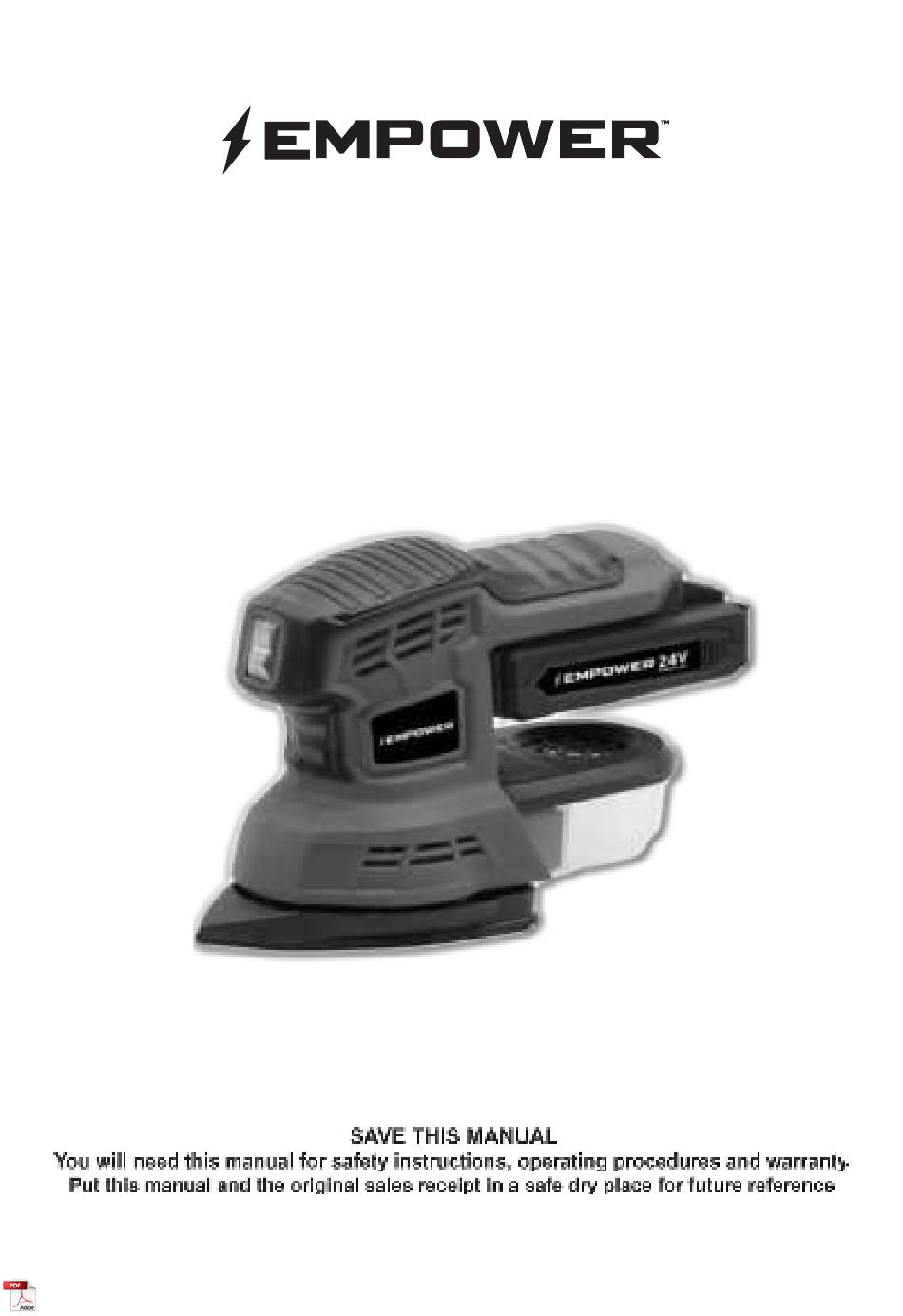

24V MAX CORDLESS MOUSE SANDER
MODEL: CDS326
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDS326 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Empower CDS326

Summary of Contents for Empower CDS326

  • Page 1 24V MAX CORDLESS MOUSE SANDER MODEL: CDS326 Instruction Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS.............. p.2 SAFETY INSTRUCTIONS FOR CORDLESS SANDER........p.5 SPECIFICATIONS....................p.8 FUNCTIONAL DESCRIPTION................p.9 ASSEMBLY......................p.9 OPERATION......................p.10 CLEANING, MAINTENANCE, AND LUBRICATION..........p.13 PARTS LIST......................p.14 SCHEMATIC DRAWING ..................p.15 WARRANTY ......................p.16 WARNING! Read and understand all instructions. Failure to follow all instructions listed below may result in serious personal injury.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WORK AREA  Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.  Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS PERSONAL SAFETY ▪ Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS ▪ Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the tool. Such preventive safety measures reduce the risk of starting the tool accidentally. ▪ Store idle tools out of reach of children and other untrained users.

  • Page 6: Safety Instructions For Cordless Sander

    IMPORTANT SAFETY INSTRUCTIONS safety equipment including safety glasses/goggles, ear protection, dust mask and other protective clothing including gloves and apron. ▪ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help.
  • Page 7 SAFETY INSTRUCTIONS FOR CORDLESS SANDER faster than their RATED SPEED can break and fly apart. ▪ The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled. ▪...
  • Page 8 SAFETY INSTRUCTIONS FOR CORDLESS SANDER wiring or its own cord. An accessory contacting a ″live″ wire may make exposed metal parts of the power tool ″live″ and shock the operator. ▪ Never lay the power tool down until the accessory has come to a complete stop.

  • Page 9: Specifications

    SAFETY INSTRUCTIONS FOR CORDLESS SANDER flammable, but they also obstruct vents under the charger. ▪ This product is not a toy. Keep it out of reach of children. ▪ People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure.

  • Page 10: Functional Description

    FUNCTIONAL DESCRIPTION A. Battery lock button B. 24V Lithium-ion battery C. Dust collection box D. Backing pad E. Switch ASSEMBLY ▪ Slide the Dust Box onto the Dust Chute at the back of the Sander. Push the Dust Box fully onto the Dust Chute using firm pressure until the Locking Tabs snap into place in the Tab Slots.

  • Page 11: Operation

    OPERATION BATTERY AND CHARGER ▪ The green light is the power indicator. When the charger is connected to AC household current, the green light is on. Light Red Light ▪ When the battery is properly inserted into the charger and charging, the red light is on.
  • Page 12 OPERATION Setting and testing WARNING: TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION: Make sure that the Switch is in the off-position and remove its Battery pack before performing any procedure in this section. Attaching Sandpaper to the Backing pad ▪ The Sanding Disc is attached by Hook and Loop to the Backing Pad.
  • Page 13 OPERATION Wipe the work surface clean of all dirt and debris, especially that of previous coarser sanding sessions, which will scratch the surface of a finer grit sanding session. ▪ Press the “O” on the Switch to place it in the off position, then attach the battery.

  • Page 14: Cleaning, Maintenance, And Lubrication

    CLEANING, MAINTENANCE, AND LUBRICATION ▪ BEFORE EACH USE, inspect the general condition of the tool. Check for: • leaking, swollen, or cracked battery pack, • loose hardware • misalignment or binding of moving parts • cracked or broken parts • any other condition that may affect its safe operation. ▪...

  • Page 15: Parts List

    PARTS LIST Description Qty. Screw Spring washer Washer Triangle pad assembly PVC pad Plastic pad Front column Back column Tapping screw PVC block Screw Spring washer Big washer Bearing Flange Sleeve Bearing Armature Carbon assembly Bearing Stator assembly Contact plate holder assembly Switch Switch cover Shockproof pole...

  • Page 16: Schematic Drawing

    SCHEMATIC DRAWING...
