4K Ultra HD Camera With Autofocus
User Manual
C121-U 4K Auto Framing Camera
User Manual
English（V1.0）
Copyright Notice
All contents of this manual, whose copyright belongs to our Corporation cannot be cloned, copied or
translated without the permission of the company. Product specifications and information which were
referred to in this document are for reference only. We may change, delete, or update any content at any
time and without prior notice.
This is class A production. Electromagnetic radiation at specific frequencies may affect the image quality
of TV in home environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C121-U and is the answer not in the manual?

Questions and answers

Related Manuals for Edis C121-U

Summary of Contents for Edis C121-U

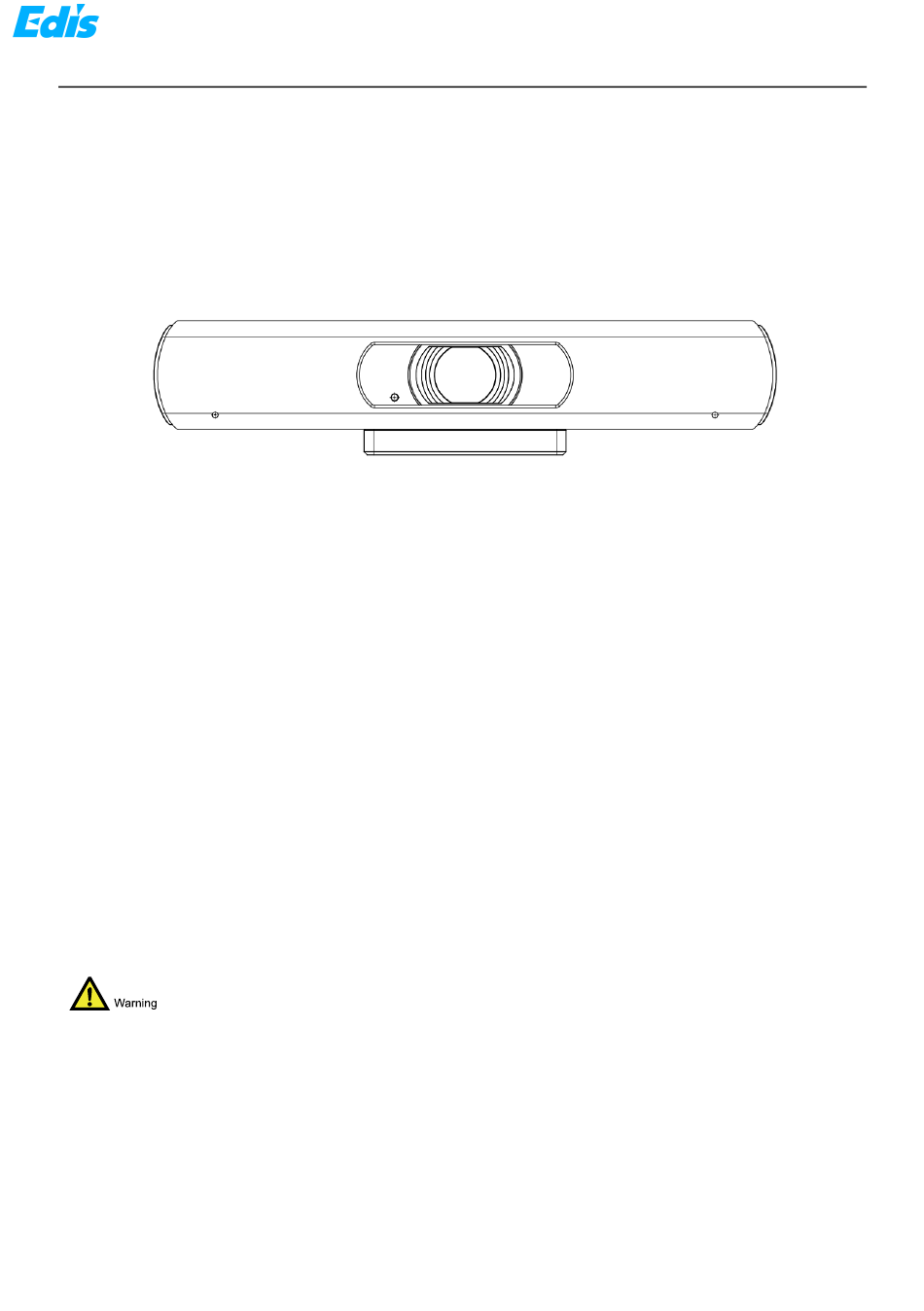

  • Page 1 4K Ultra HD Camera With Autofocus User Manual C121-U 4K Auto Framing Camera User Manual English（V1.0） Copyright Notice All contents of this manual, whose copyright belongs to our Corporation cannot be cloned, copied or translated without the permission of the company. Product specifications and information which were referred to in this document are for reference only.

  • Page 2: Table Of Contents

    4K Ultra HD Camera With Autofocus User Manual Catalogue 1 Note ......................1 2 Supplied Accessories ................1 3 Quick Start ..................... 1 4 About Product ..................1 4.1 Features ....................... 1 4.2 Product Specification ................... 2 4.3 Interfaces and buttons ................. 4 4.4 Dimension ....................

  • Page 3: Note

    4K Ultra HD Camera With Autofocus User Manual Note Specific frequencies of electromagnetic field may affect the image of the camera!  Electric Safety Installation and operation must accord with Supplied Accessories electric safety standard.  Use caution to transport When you unpack, check that all the Avoid stress, vibration or soakage in supplied accessories are included:...

  • Page 4: Product Specification

    4K Ultra HD Camera With Autofocus User Manual tracking algorithm, without any auxiliary  Support PoE positioning camera or tracking host, can The wired network supports PoE power achieve smooth and natural tracking effect. supply, control, power supply, video, and ...
  • Page 5 4K Ultra HD Camera With Autofocus User Manual TCP/IP, HTTP, RTSP, Support Support RTMP, ONVIF, DHCP, protocols Local Storage Support Multicast, etc. Auto Tracking Teacher mode/Student Input/Output Interface Function mode (optional) Network 1xRJ45: 10/100/1000M Network Features Interface Ethernet Interface Video Wireless 1xWireless Wi-Fi H.264/H.265/MJPEG...

  • Page 6: Interfaces And Buttons

    4K Ultra HD Camera With Autofocus User Manual 4.5 Remote Control 4.3 Interfaces and buttons Item Name Network Interface USB 2.0 Interface Power Interface 4.4 Dimension Key Description 1. Standby Button (not supported) Press this button to enter standby mode. Press it again to enter normal mode.
  • Page 7 4K Ultra HD Camera With Autofocus User Manual 3. *Button Press the button corresponding to the camera you want to operate with the remote Used with other buttons. controller. 4. Set/Preset Buttons 11. # Button Set preset: Store a preset position. Used with other buttons.

  • Page 8: Menu Settings

    4K Ultra HD Camera With Autofocus User Manual 1/100s, 1/125s, 1/200s, 1/250s, 1/350s, Menu Settings 1/500s, 1/725s, 1/1000s, 1/1500s, 1/2000s, 1/3000s, 1/4000s, 1/6000s, 1/10000s 5.1 MENU (Effective only in Shutter Priority mode). Press [MENU] button to display the main ExpCompMode: Optional items: On, Off menu on the normal screen, using arrow (Effective only in Full Auto mode).

  • Page 9: Image

    4K Ultra HD Camera With Autofocus User Manual R Gain: Red gain, optional items: 0~255 Flip-H: Image flipped horizontally, optional (Effective only in Manual mode). items: On, Off. B Gain: Blue gain, optional items: 0~255 Flip-V: Image Flip Vertical, optional items: (Effective only in Manual mode).

  • Page 10: Information

    4K Ultra HD Camera With Autofocus User Manual 5.8 RESTORE DEFAULT SETTING Language English Move the main menu cursor to [RESTORE Protocol VISCA DEFAULT], and press [HOME] key enter the Visca Addr restore default page, as shown in the AF Sense following figure.

  • Page 11: Internet Connection

    4K Ultra HD Camera With Autofocus User Manual 6.3 Internet Connection There are two main ways to connect network camera. Connect by Network Cable Connect by Switch/Router 6.4 IP camera controlled by LAN 6.4.1 Setup IP address The IP camera default IP address is “192.168.100.88”.

  • Page 12: Camera Controlled By Wan

    4K Ultra HD Camera With Autofocus User Manual Install (player software).After installation, login again, will show as above.  The default IP address of camera is 6.5 Camera Controlled by WAN “192.168.100.88”.  The default username and password are 6.5.1 Setup IPC controlled by “admin”.

  • Page 13: Ip Camera Parameter Setup

    4K Ultra HD Camera With Autofocus User Manual number. For example, setup host computer name: youdomain.f3322.org, camera port RTSP port number default 554. number: 554. Access link should be: http://youdomain.3322.org:554. camera port default then unnecessary to input port number, use host name can access camera directly.
  • Page 14 4K Ultra HD Camera With Autofocus User Manual B. PTZ Setup Then click “Set” button, when PTZ turn to other position, click “Call” button or click “No” of the Presets Information, PTZ turn back to preset position. Menu: OSD menu display in the upper corner of the image page.
  • Page 15 4K Ultra HD Camera With Autofocus User Manual 3) Encode Protocol 6.6.2 Video Settings Support H.264, H.265 and MJPEG three formats. 4) Resolution First stream support 3840x2160, 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360; Second stream support 1920x1080, 1280x720, 1024x576, 720x576, 720x408, 640x360, 480x270, 320x240, 320x180;...
  • Page 16 4K Ultra HD Camera With Autofocus User Manual 4) Sharpness Variable bit rate: video coder will adjust the speed based on preset speed to gain the Sharpness 0~14, slider control, on the right best image quality. shows the corresponding numerical. Default 9) Fluctuate Level value is 3.
  • Page 17 4K Ultra HD Camera With Autofocus User Manual 6) Input Type Input type MIC. 7) Input Vol L The volume of the left channel. 8) Input Vol R The volume of the right channel. 9) ADTS Options Optional items: On, Off. 6.6.5 System Settings 1) Work Mode The default work mode is RTSP.

  • Page 18: Download The Camera Upgrade Program

    4K Ultra HD Camera With Autofocus User Manual B. RTSP Port 6.7 Download the Camera Network camera support RTSP protocol, Upgrade Program use the VLC tools broadcast. If you need the camera upgrade program, C. PTZ Port please contact the manufacturer. Support PTZ protocol, default port: 5678.
  • Page 19 4K Ultra HD Camera With Autofocus User Manual Troubleshooting 2) Disconnect IP Camera with network, IP Image Camera and PC are connected,  Image dithering even at widest zoom according to the proper operations to position re-set the IP address. 1) Check whether camera is fixed correctly.
