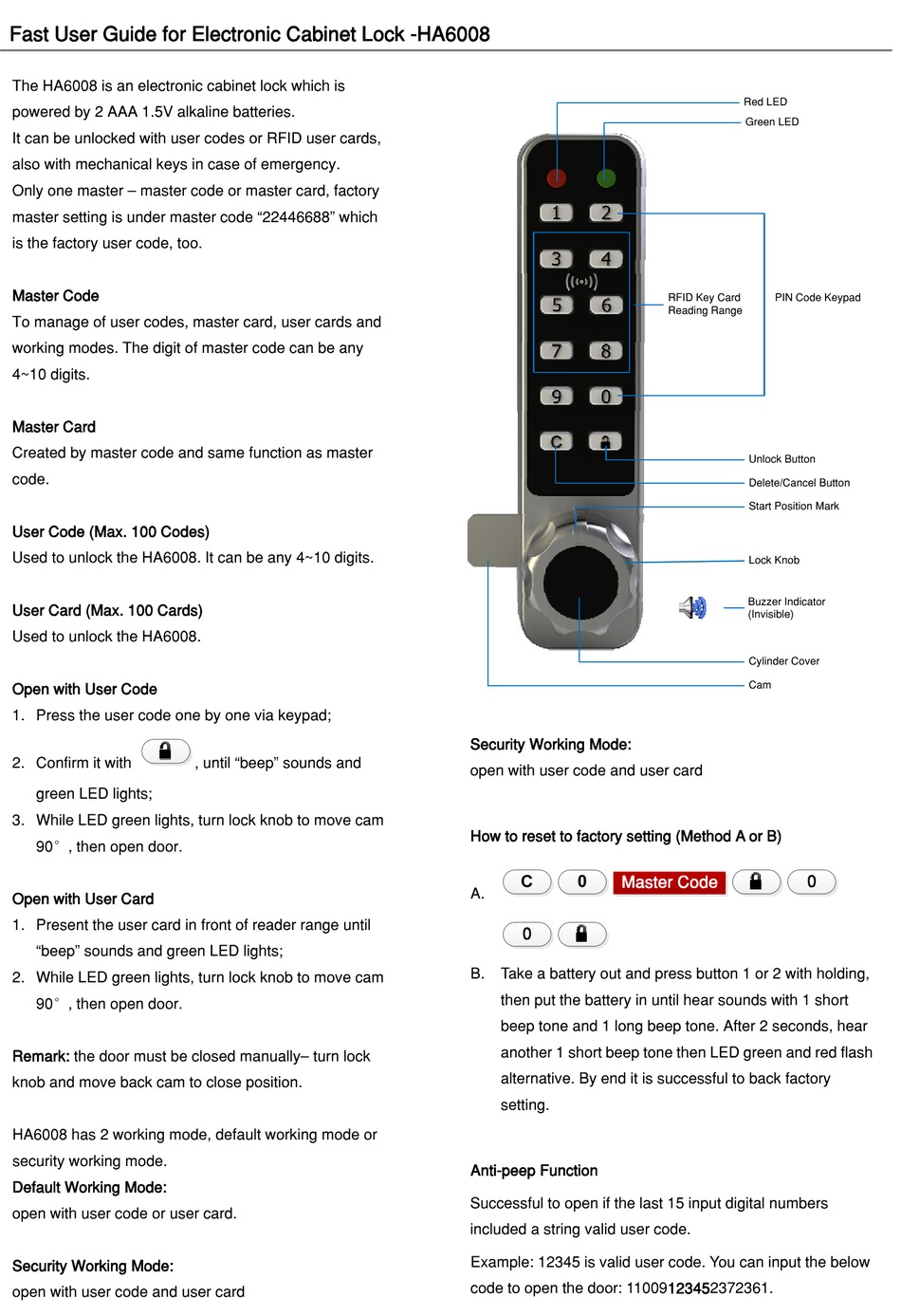

Fast User Guide for Electronic Cabinet Lock -HA6008 
The HA6008 is an electronic cabinet lock which is
powered by 2 AAA 1.5V alkaline batteries.
It can be unlocked with user codes or RFID user cards,
also with mechanical keys in case of emergency.
Only one master – master code or master card, factory
master setting is under master code "22446688" which
is the factory user code, too.
Master Code
To manage of user codes, master card, user cards and
working modes. The digit of master code can be any
4~10 digits.
Master Card
Created by master code and same function as master
code.
User Code (Max. 100 Codes)
Used to unlock the HA6008. It can be any 4~10 digits.
User Card (Max. 100 Cards)
Used to unlock the HA6008.

Open with User Code

1. Press the user code one by one via keypad;
2. Confirm it with
green LED lights;
3. While LED green lights, turn lock knob to move cam
90°, then open door.

Open with User Card

1. Present the user card in front of reader range until
"beep" sounds and green LED lights;
2. While LED green lights, turn lock knob to move cam
90°, then open door.
Remark: the door must be closed manually– turn lock
knob and move back cam to close position.
HA6008 has 2 working mode, default working mode or
security working mode.
Default Working Mode:
open with user code or user card.
Security Working Mode:
open with user code and user card
, until "beep" sounds and
Security Working Mode:
open with user code and user card

How to reset to factory setting (Method A or B)

A.
B. Take a battery out and press button 1 or 2 with holding,
then put the battery in until hear sounds with 1 short
beep tone and 1 long beep tone. After 2 seconds, hear
another 1 short beep tone then LED green and red flash
alternative. By end it is successful to back factory
setting.

Anti-peep Function

Successful to open if the last 15 input digital numbers
included a string valid user code.
Example: 12345 is valid user code. You can input the below
code to open the door: 11009123452372361.
Red LED
Green LED
RFID Key Card PIN Code Keypad
Reading Range
Unlock Button
Delete/Cancel Button
Start Position Mark
Lock Knob
Buzzer Indicator
(Invisible)
Cylinder Cover
Cam
