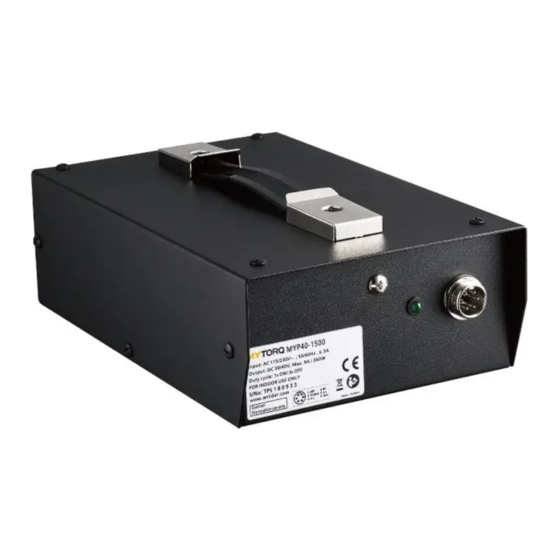

Summary of Contents for ANLIDAR MYTORQ MYP40-1500

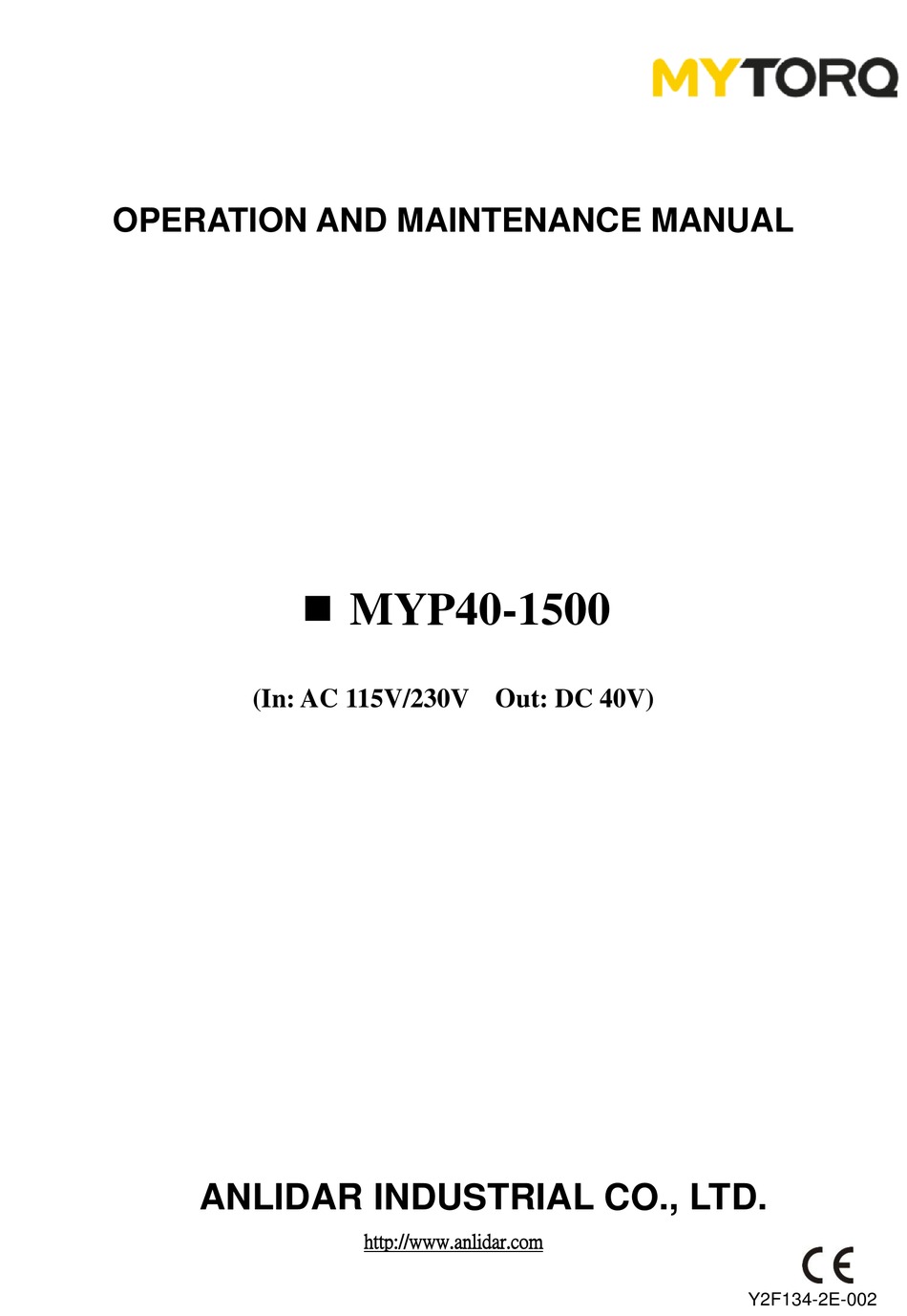

- Page 1 OPERATION AND MAINTENANCE MANUAL MYP40-1500 (In: AC 115V/230V Out: DC 40V) ANLIDAR INDUSTRIAL CO., LTD. http://www.anlidar.com Y2F134-2E-002...
- Page 2 WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator. Failure to observe the following warnings could result in injury.
- Page 3 WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. SAVE THESE INSTRUCTIONS 1) Electrical Safety a) Keep work area clean and well lit.
- Page 4 d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation.
- Page 5 4. Do not near oil, chemical materials or heated objects, also please be alert not to scratch the power cord by sharp object. 5. This type of Controller can only be applied to Anlidar Electric Screwdriver with Counter. Do not use Electric Screwdriver Controller on other types of machinery.
-
Page 6: Grounding Instructions
10. We emphasize that the power supply should be placed in stable, fixed location. SAVE THESE INSTRUCTION NOTICE he use of other than genuine Anlidar replacement parts may result in decreased controller performance and increased maintenance, and may invalidate all warranties. -
Page 7: Specifications
Specifications Model MYP40-1500 Input AC 115V / 230V / 6.3A 50/60Hz Output DC 40V/30V , 9A/360W Screwdriver Duty Cycle 1s ON / 3s OFF Power Consumption 360W Outside Dimensions (mm) 213*133*68(mm) Weight(kg) 1.8 (main body) MYT-0206；MYT-0309；MYT-0412；MYT-0618 MYR-0206；MYR-0309；MYR-0412；MYR-0618； MYR-0412F；MYR-0618F；MYR-0825；MYR-0825F； MYR-1235；MYR-2050 MY9-0206；MY9-0206；MY9-0206F；MY9-0309；MY9-0612 MYLR-0205；MYLR-0375；MYLR-0610；MYLR-0610F；... - Page 8 2. All repairs and maintenance of this tool and its word must be performed by an authorized service center. 3. Anlidar is not responsible for customer modification of tools for applications on which Anlidar was not consulted. 4. Repairs should be made only by authorized, trained personnel. Consult your nearest MYTORQ authorized service center.
