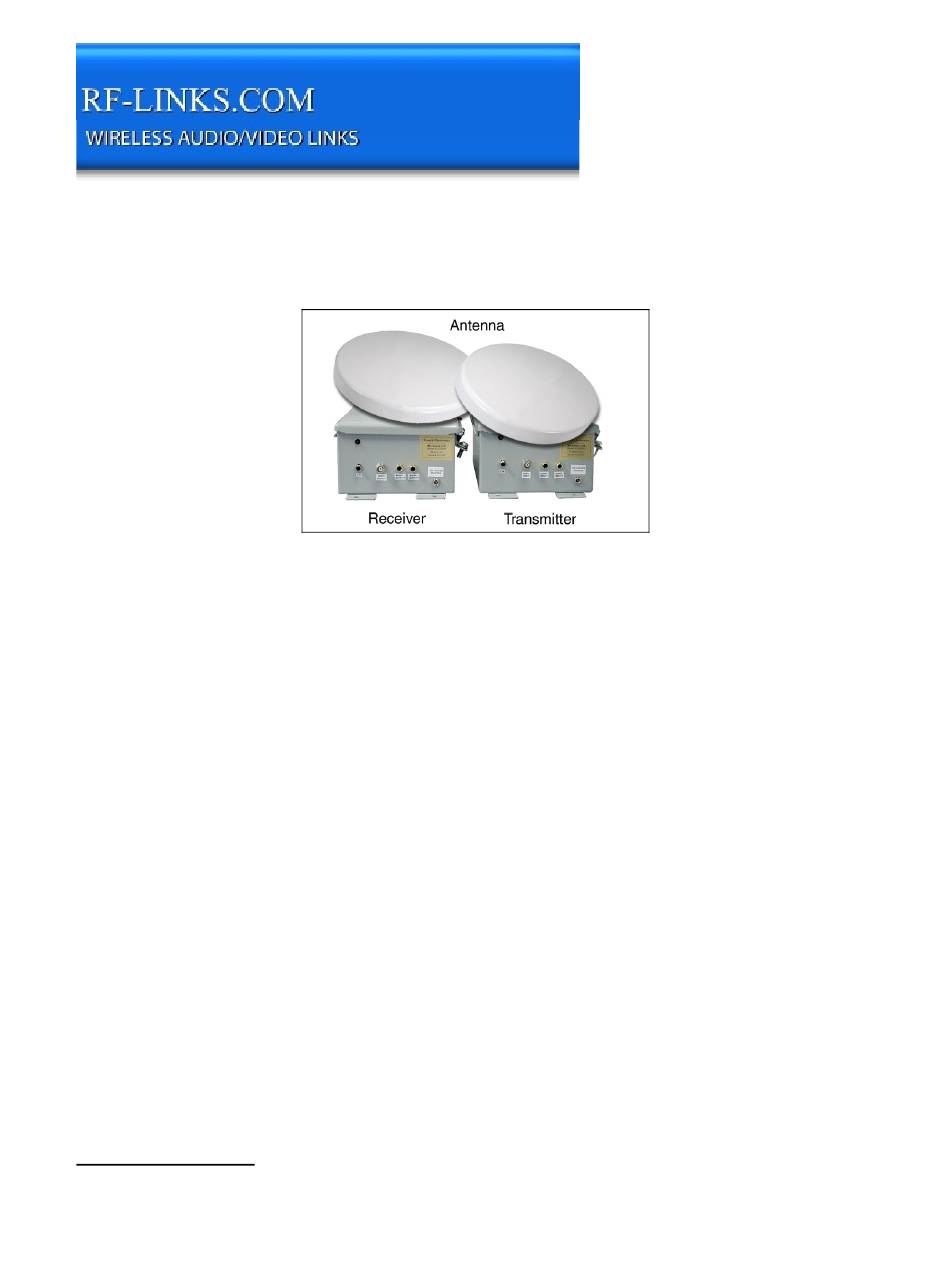

5.8 GHz Wireless Video/Audio Transmission link
EXCELLENT HIGH-POWER MICROWAVE LINK 5.8 GHz WITH FREQUENCY
XL 5800/H is a portable microwave link built-in weatherproof Nema
enclosure. It is frequency agile in 5.8 GHz band. XL 5800/H is excellent
solution for mobile applications and TV broadcast transmission up to 30
1• Verify proper operation of camera and monitor/event recorder using coaxial cable prior
to installing wireless link.
2• Install transmitter and receiver units in secure and dry place.
3• Install antennas above the enclosures.
USE EXTREME CARE WHEN INSTALLING ANTENNAS NEAR POWER LINES.
4• Tighten antenna cable to receiver and transmitter. Apply a small amount of silicone to
flange to make a leak proof connection.
5• Connect video, audio, power, cables to units through flanges. Tighten
flanges to allow small air gap at bottom of enclosure.
Power adapter must be kept dry.
6• Verify that LEDs are lit up and transmitter and receiver are on same channel.
7• Tighten lid of enclosure down.
XL-5800/H
AGILE CHANNELS
km line-of-sight.
Installation and Operating Instructions
Advertisement
Table of Contents
Summary of Contents for RF-Link XL-5800/H
- Page 1 5.8 GHz Wireless Video/Audio Transmission link XL-5800/H EXCELLENT HIGH-POWER MICROWAVE LINK 5.8 GHz WITH FREQUENCY AGILE CHANNELS XL 5800/H is a portable microwave link built-in weatherproof Nema enclosure. It is frequency agile in 5.8 GHz band. XL 5800/H is excellent solution for mobile applications and TV broadcast transmission up to 30 km line-of-sight.
- Page 2 DO NOT APPLY POWER TO THE TRANSMITTER UNLESS THE ANTENNA IS CONNECTED. PERMANENT DAMAGE MAY RESULT. To obtain the best picture quality and transmission distance, the following rules of thumb should be followed: 1) Mount the transmitter and receiver antennas above human and mechanical traffic, the higher the better.
- Page 3 VIDEO OUTPUT Designed to mate to a standard BNC male connector, this provides a 1 Volt peak-to-peak video signal output. This must be terminated with 75 Ω. RCA to BNC adapters are available for use with some monitors and VCR inputs. AUDIO OUTPUT Designed to mate to a standard RCA male connector, this provides a 1 Volt peak-topeak audio output and should be terminated in a 600 Ω...
- Page 4 Your new channel is now saved in memory. 8 CHANNELS ARE AVAILABLE IN 5.8 GHz RANGE. www.rf-links.com Copyright © 2000-2005 rf-links.com All Rights Reserved NOTE: Model XL-5800/H HAS 5 W RF POWER OUTPUT. RECEIVER HAS 8 MATCHING CHANNELS, CHANNEL SETTINGS FOR THE RECEIVER IS EXTERNAL.
- Page 5 TRANSMITTER/RECEIVER FRONT PANEL Warning Our microwave links are built in weatherproof boxes, but they are not waterproof. Please make sure to protect transmitter/receiver boxes from the rain and moisture.
