SkylinkHome Smart Button CA-1 Quick Start Manual

TM
Smart Button
Garage Door Control

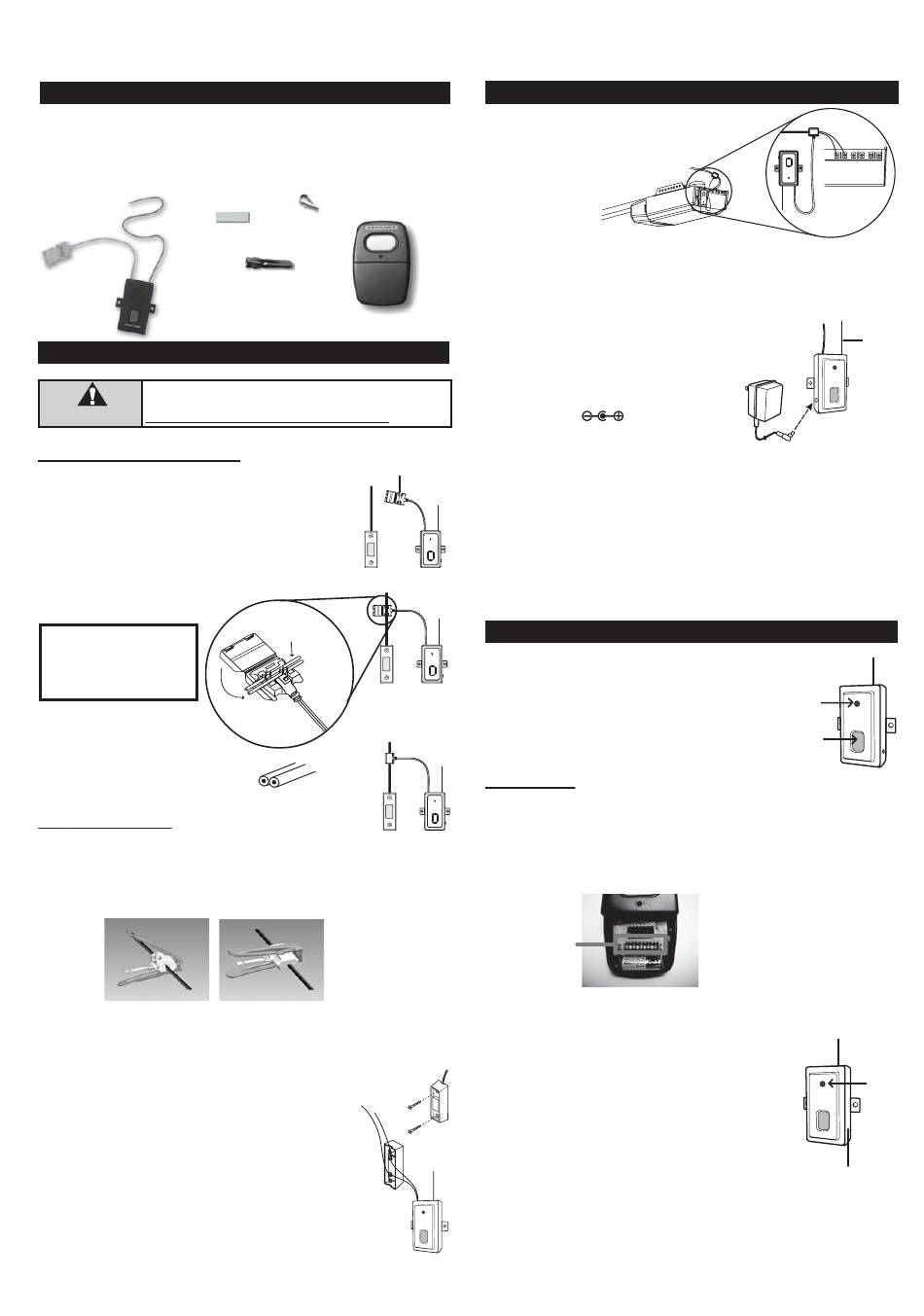

1. INTRODUCTION

Congratulations on your purchase of the Skylink
Button TM Garage Door Remote Control. This is a kit with a remote
TM
control and Smart Button . Simply replaces the traditional wall button
by the Smart Button TM , that's all for the installation. In this kit, you will
find the following:
Double Sided Tape
Smart Button
CA-318/ CS-318

2. INSTALLATION

Unplug the power cord of your garage door opener before installation to ensure
power is not connected.
DO NOT let children use the gargae door Transmitter without adult supervisor.
Children can injure themselves or others by the garage door.
WARNING
DO NOT use remote to control the door without safety beams.
CA-318/ CS-318 Smart Button
1. Open up the "Easy Clip TM " and place it underneath
the existing 2 wires of the wall button / wall
console.
2. Ensure a pair of the wall button ribbon wires
are placed properly inside the channels of the
"Easy Clip TM ".
NOTE:
Ensure the ribbon wires
are not twisted but laid
flat inside the clip.
If your wall button ribbon wires
are not the AWG#22 or #24 or
the same kind as shown
in the diagram, please refer
below (4) or visit our website
www.skylinkhome.com for
more information.
3. Press and lock the clip by snapping it together. The included Crimper
helps you lock the "Easy Clip
lock the cover using this Crimper until you hear a "click".
TM
4. If the "Easy Clip " cannot clip with the wires from your wall button, cut
off the "Easy Clip TM " then connect two wires from the Smart Button
to the wall button.
a) Dismount the existing wall button from the wall.
b) Connect the 2 wires from the Smart Button
to your existing wall button. Polarity does not
matter, so simply pick one wirefrom the
Smart Button TM and connect it to one of the screw
terminals on your wall button. Connect the 2nd
wire to the other screw terminal.
c) Mount the wall button back.
Model CA-1/ CS-1
®
CA-1/ CS-1 Smart
Visor clip
Crimper
TM
100P/ 100PA
TM
Easy Clip
Wall Button
Ribbon Wires
Press / lock
Ribbon Wires
TM ". Close the cover and press down to
TM
5. If the wall button wires are hidden inside the
wall, please connect the "Easy Clip
the exposed wires attached to the
terminals of the garage door
opener.
6. Power up the garage door opener, the red LED on the Smart Button
should keep flashing slowly within 2 minutes.
TM
If the Smart Button
been connected to the wall button's wires for 2 minutes, your
garage door opener is probably too old. However, the
TM
Smart Button will still work if you plug in an adapter
(purchased separately). Please contact Skylink
purchase the adapter.
Rating of the transformer:
12V DC, 100mA
Diameter of DC plug : 3.5mm
7. Secure the Smart Button
TM
Note: Do not cut the antenna! Straighten up the antenna to improve
signal reception.
Note:
After installation of the "Easy Clip
TM
Button to another place, please open the "Easy Clip
the two buckles with a screw driver, and remove it from the wires. Do not
re-use the "Easy Clip
If the red LED flashes slowly, the Smart Button
standby mode. When a valid remote control signal is
received, it will open/close the garage door.
Press the programmed button on the remote control
or Smart Button TM , it will open / close the garage door.
Programming
Learn remote controls
Smart Button TM can learn up to 16 remote controls. To learn remote
controls, follow instructions below:
1. Remove the battery cover on your Skylink
set the DIP switches to your desired combination.
DIP
switches
2. Re-install the battery cover to your Skylink
3. Press the learn button on the side of the Smart Button
TM 4. Once the learn button is pressed, the LED will
flash quickly. Release the learn button.
5. Within 30 seconds, press the button on the remote
control you would like to program.
6. Once the remote control is programmed, the LED
will flash slowly, in the same way as it flashes
in standby mode.
7. You may now operate the garage door opener
with this remote control.
To program your car remote to the Smart Button
to the instructions for your car remote.
2. INSTALLATION (CONT)
TM " to
's red LED does not flash after the Smart Button
® to
TM properly with the mounting accessories.
TM ", if you want to re-install the Smart
TM ", refer to Step 4 to re-install it.

3. OPERATION

TM is in
® remote, randomly
® remote.
TM , please refer
TM
TM
as
Antenna
TM
" by gently unlocking
LED
OPEN /
CLOSE
Button
TM .
Antenna
LED
Learn Button
