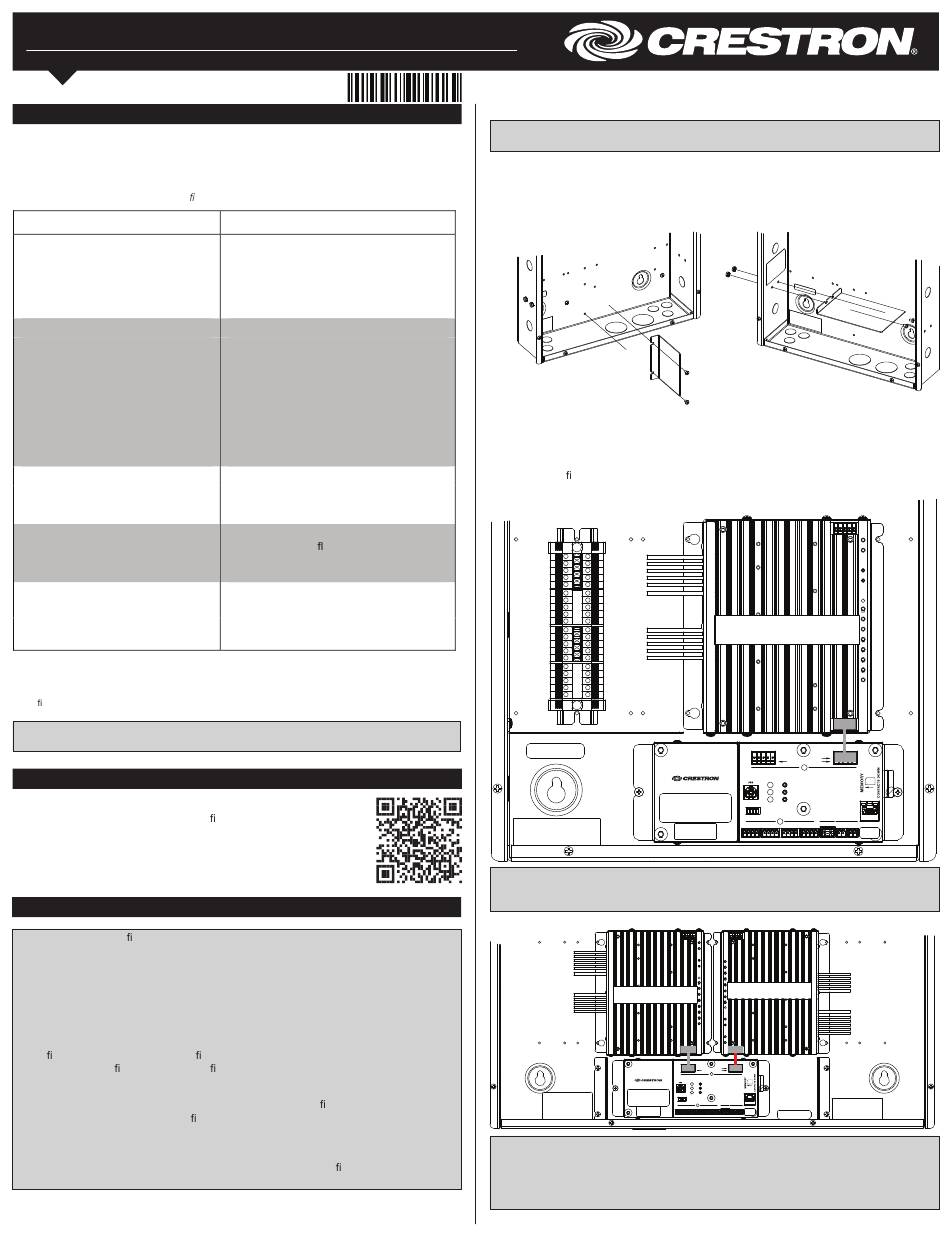

Crestron Ethernet to Cresnet CAEN-BLOCK-CENCN-2-POE Installation & Operation Manual

CAEN-BLOCK-CENCN-2-POE
Ethernet to Cresnet Bridge for CAEN Automation Enclosures
®
Installation & Operation Guide

Description

The Crestron CAEN-BLOCK-CENCN-2-POE is an Ethernet to Cresnet bridge that
®
provides control with a Crestron Automation Enclosure (CAEN). The device is controlled
and powered by LAN PoE (Power over Ethernet). The CAEN-BLOCK-CENCN-2-POE can
control and power all modules in the cabinet and also the devices on the Cresnet network.
CAEN-BLOCK-CENCN-2-POE Speci cations
SPECIFICATION
Power
Power over Ethernet
Cresnet Power
Minimum Power Ratings
Input Source
PoE Class 0 (12.95 W)
using an 802.3at
Type 1 (or 802.3af) PSE
PoE+ Class 4 (25.5 W)
using an 802.3at
Type 2 PSE
24 Vdc Power Input*
Environmental
Temperature
Humidity
Enclosure
Available Power Supplies**
(sold separately)
* The 24 Vdc power supply must be capable of delivering 75 W to the load when plugged in alone or
while in conjunction with the PoE or PoE+.
** If another power supply is used, the power supply must be UL or cUL Listed or have equivalent NRTL
certi cation with the minimum power ratings shown, have an LPS output, and be rated for use in an
ambient temperature of 40 °C.
NOTE: The equipment is only to be connected to PoE networks without routing to
outside plants.

Additional Resources

Visit the product page on the Crestron website (www.crestron.com)
for additional information and the latest rmware updates. Use a QR
reader application on your mobile device to scan the QR image.

Installation

WARNING: To avoid re, shock, or death, turn off the power at the circuit breaker or
fuse and test that the power is off before wiring!
NOTE: Observe the following points:
• Install and use this product in accordance with appropriate electrical codes and
regulations.
• A licensed electrician should install this product.
NOTE: Before using the CAEN-BLOCK-CENCN-2-POE, ensure the device is using the
latest rmware. Check for the latest rmware for the CAEN-BLOCK-CENCN-2-POE at
www.crestron.com/ rmware. Load the rmware onto the device using Crestron
Toolbox™ software.
NOTE: Unless otherwise indicated, the lighting system speci ed in this guide is
modular, requiring assembly in the eld by a licensed electrician, in accordance with all
national and local codes.
If an assembled UL Listed panel is required, Crestron offers this service through its UL
Listed panel shop. This includes complete in-factory system con guration and assembly
by Crestron for an additional fee.
DETAILS
IEEE 802.3at Type 1 PoE and Type 2
PoE+ Powered Device; refer to "Minimum
Power Ratings"
24 Vdc; refer to "Minimum Power Ratings"
10 W Power to Load (NET B)
20 W Power to Load (NET B)
75 W Power to Load (NET B)
32° to 104 °F (0° to 40 °C)
10% to 90% RH (noncondensing)
Metal, gray, surface-mount module with (2)
integral mounting anges; installs in a
Crestron CAEN, CAEN-MLO, or CAENIB
enclosure
PWE-4803RU
CEN-SWPOE-16
CNPWS-75
CNPWSI-75

Replace the Divider

NOTE: Class 1 and Class 2 wiring must be separated. Ensure that the correct divider is
used.
Replace the divider.
1. Remove the two screws that secure the divider in the enclosure. Discard the screws
and the divider.
2. Using the supplied screws and nuts, secure the new divider to the side of the
enclosure.

Mount and Wire the CAEN-BLOCK-CENCN-2-POE

Mount the CAEN-BLOCK-CENCN-2-POE in accordance with all national and local codes.
Use the two 8B x 1/4" screws, supplied, to attach the CAEN-BLOCK-CENCN-2-POE to an
enclosure. The rst illustration below shows the CAEN-BLOCK-CENCN-2-POE mounted in
a single-wide enclosure; the second illustration shows the double-wide enclosure.
C A E N - B L O C K- C E N C N - 2 - P O E
E T H E R N E T T O C R E S N E T B R I D G E
NOTE: When installing the CAEN-BLOCK-CENCN-2-POE in a single-wide enclosure,
use the gray module interconnect cable to make the connection between the module
and the RIGHT port on the CAEN-BLOCK-CENCN-2-POE.
C A E N - B L O C K- C E N C N - 2 - P O E
E T H E R N E T T O C R E S N E T B R I D G E
NOTE: When installing the CAEN-BLOCK-CENCN-2-POE in a double-wide enclosure,
use the red module interconnect cable to make the connection between the right
module and the RIGHT port on the CAEN-BLOCK-CENCN-2-POE. Use the gray module
interconnect cable to make the connection between the left module and the LEFT port
on the CAEN-BLOCK-CENCN-2-POE.
LEFT RIGHT
SINGLE WIDTH CABINET
DOUBLE WIDTH CABINET
NET A
PWR RESET
NET SETUP
MSG TEST
24 Y Z G
TYPICAL CRESNET
CONNECTION
NET B POWER
INPUT OVER RIDE
24 G
OVR G G
OVR
LEFT RIGHT
SINGLE WIDTH CABINET
DOUBLE WIDTH CABINET
NET A
PWR RESET
NET SETUP
MSG TEST LAN PoE
24 Y Z G
TYPICAL CRESNET
CONNECTION
NET B POWER
INPUT OVER RIDE
24
G OVR G OVR G
LAN PoE
