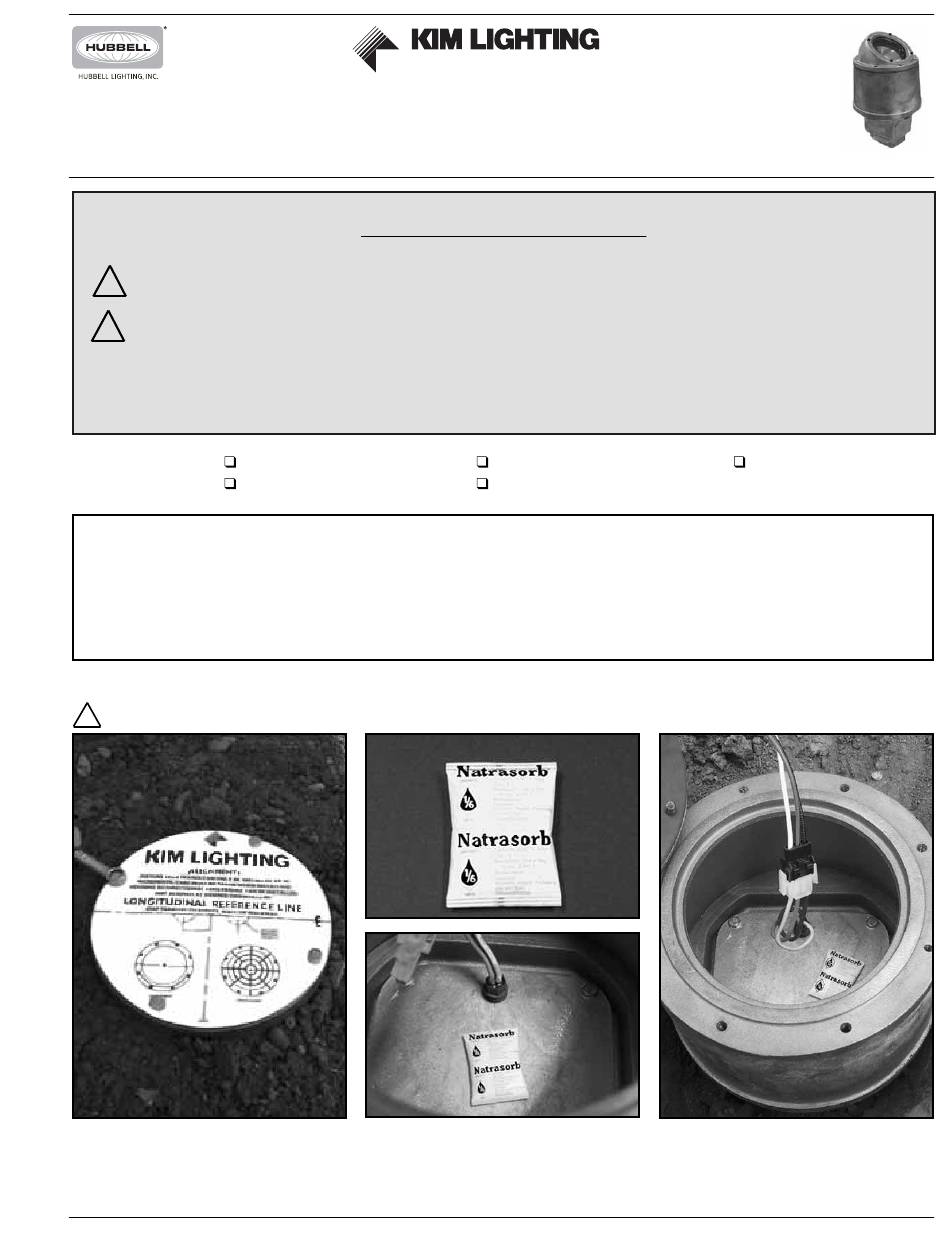

LIGHTVAULT
®
INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS
WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
!
Failure to do so may result in serious personal injury. All work should be done by a qualified electrician.
SAFETY WARNING: Lighted lamp is HOT! Do not touch lens, guard, or enclosure. Do not operate
!
luminaire with missing or damaged lens.
MAINTENANCE: For optimum performance a regularly scheduled maintenance program should be followed.
See page 3 for furthur maintenance instructions. KEEP THIS SHEET FOR FUTURE REFERENCE.
Tools Required:
J" Hex Socket Wrench
Philips Screwdriver
IMPORTANT: Condensation inside the fixture is a common occurrence due to the expanding and condensing of the
trapped air inside the fixture as it is cycled on and off. When the lamp is energized during the evening hours, moisture
on the inside of lens will burn off as fixture heats up. It will reappear after power is shut off and the inside air condenses
during cooling. A large majority of this moisture can be avoided by following the installation guide lines as described in
the housing installation instructions. Always relamp fixture during low humidity periods. Before closing fixture, remove
desiccant from zip lock bag and place in reflector compartment. Energize the lamp for approximately five (5) minutes to
dry air inside fixture. Install lens and lens frame as described below.
LENS FRAME / REFLECTOR INSTALLATION:
!
Make certain electrical supply is OFF before starting fixture installation.
1. Remove debris shield from
housing & discard. (Shield is
aluminum, please recycle.)
Revised 7/16/10
ECN
100715008
P.O. Box 60080 • 16555 East Gale Ave.
City of Industry, California 91716-0080
626/968-5666 • FAX 626/330-3861
- LTV Lens Reflector Installation Instructions
IMPORTANT SAFETY INSTRUCTIONS!
2. Place dessicant package inside
housing before connecting quick-
disconnect.
Status 6
F" Hex Socket Wrench
Silicone Grease
3. Connect housing quick-disconnect
LTV57
LTV58
LTV757
LTV758
K" Open End Wrench
to reflector assembly quick-
disconnect.
Part No. 95642
Advertisement
Summary of Contents for Hubbell KIM LIGHTING LTV57
- Page 1 P.O. Box 60080 • 16555 East Gale Ave. LTV57 City of Industry, California 91716-0080 LTV58 626/968-5666 • FAX 626/330-3861 LTV757 LTV758 LIGHTVAULT - LTV Lens Reflector Installation Instructions ® INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS IMPORTANT SAFETY INSTRUCTIONS! WARNING: Fixtures must be grounded in accordance with local codes or the National Electrical Code.
- Page 2 LIGHTVAULT - LTV Lens Reflector LTV57/58 & LTV757/758 ® Installation Instructions LENS FRAME / REFLECTOR INSTALLATION INSTRUCTIONS cont'd. Note: Make sure gasket and gasket surface is clean and dry. Make certain no dirt has fallen into screw holes. Any foreign objects trapped in the gasket areas will create potential points of entry for ground water.
- Page 3 LIGHTVAULT - LTV Lens Reflector LTV57/58 & LTV757/758 ® Installation Instructions LAMP / MAINTENANCE INSTRUCTIONS: Make certain electrical supply is OFF before starting lamp installation. 1. To replace lamp remove eyeball lens frame & gasket with lens. 3. NOTE: After installing lamp let fixture warm up for 5 minutes before completely closing.
- Page 4 LIGHTVAULT - LTV Lens Reflector LTV57/58 & LTV757/758 ® Installation Instructions MAINTENANCE OF VISIBLE CONDENSATION ON LENSES: KIM LIGHTING LIMITED WARRANTY ▼ Never install or maintain fixtures in the rain, or on When installed in accordance with Kim Installation Instructions days with very high relative humidity (over 80%).
