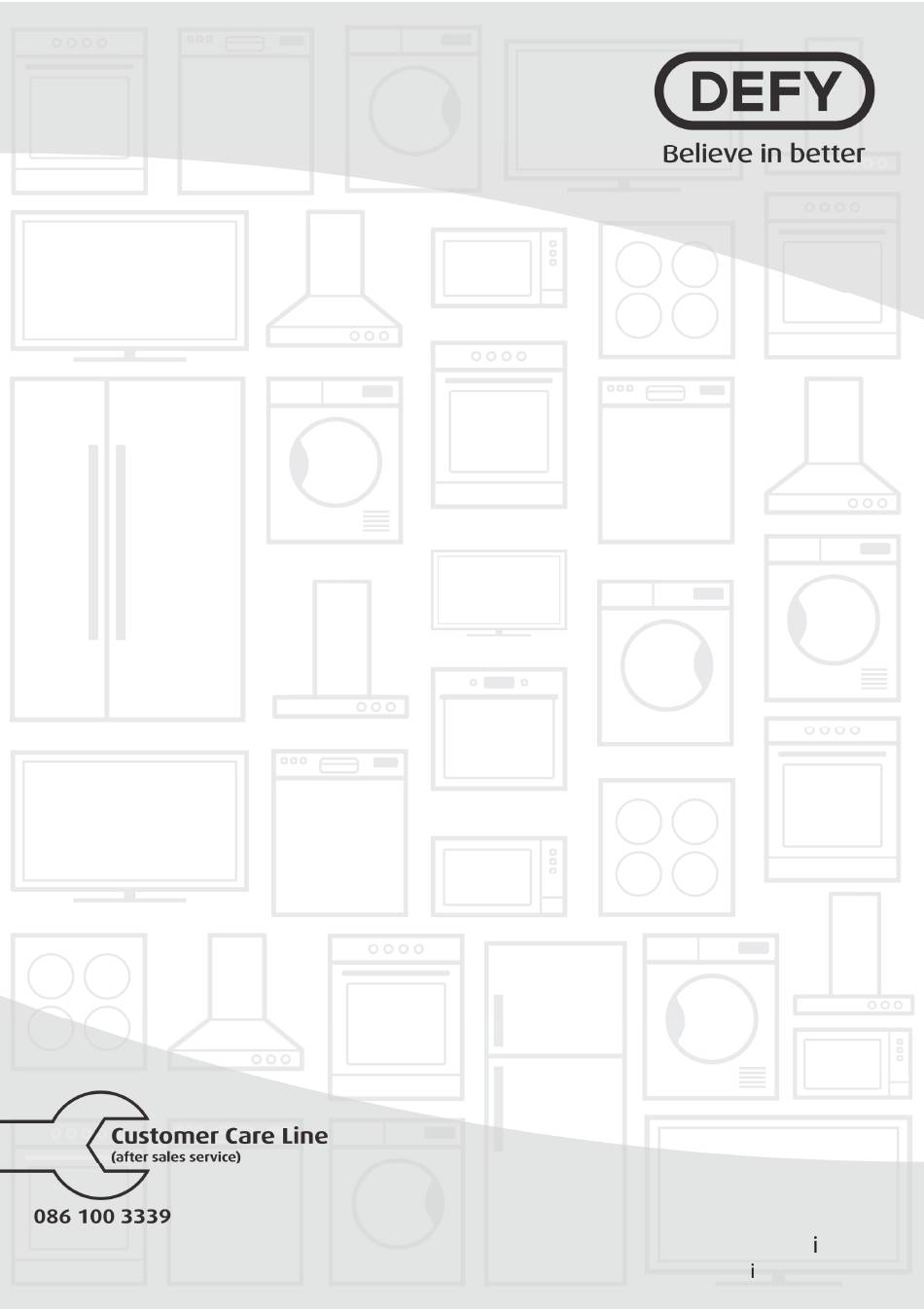

- Page 1 DGS902 Range Cooker B FA - 8140040004 DGS904 Range Cooker SS FA - 8140040005 Page 1 Cook ng Instruct on manual...
- Page 2 Dear User, Our objective is to make this product provide you with the best output which is manufactured in our modern facilities in a careful working environment, in compliance with total quality concept. Therefore, we suggest you to read the user manual carefully before using the product and, keep it permanently at your disposal.
-
Page 3: Table Of Contents
Contents Important warnings Electrical connection Gas connection Introduction of the appliance Accessories Technical features of your oven Installation of your oven Installation of the oven feet Chain lashing illustration Control panel Using oven section Using the grill Using the chicken roasting Using cooker section Program types Cooking time table... -
Page 4: Important Warnings
IMPORTANT WARNINGS 1. Installation and repair should always be performed by “AUTHORIZED SERVICE”. Manufacturer shall not be held responsible for operations performed by unauthorized persons. 2. Please read this operating instructions carefully. Only by this way you can use the appliance safely and in a correct manner. - Page 5 13. NEVER try to put out the fire with water. Only shut down the device circuit and then cover the flame with a cover or a fire blanket. 14. Children under 8 years of age should be kept away, if they cannot be monitored continuously. 15.
- Page 6 23. The appliance is not suitable for use with an external timer or a separate remote control system. 24. Do not heat closed cans and glass jars. The pressure may lead jars to explode. 25. Oven handle is not a towel drier. Do not hang towels, etc.
- Page 7 35. Do not put objects that children may reach on the appliance. 36. It is important to place the wire grill and tray properly on the wire racks and/or correctly place the tray on the rack. Place the grill or tray between two rails and make sure it is balanced before putting food on it.
- Page 8 43. Do not hit glass surfaces of vitro-ceramic cookers with a hard metal, resistance can get damaged. It may cause an electric shock. 44. User should not handle the oven by himself. 45. Use shall be careful when cleaning gas burners. It may cause personal injuries.
- Page 9 54. To prevent overheating, the appliance should not be installed behind of a decorative cover. 55. Turn off the appliance before removing the safeguards. After cleaning, install the safeguards according to instructions. 56. Cable fixing point shall be protected. 57. WARNING: Don’t use oven and grill burners at same time.
- Page 10 Electrical Safety 1. Plug the appliance in a grounded socket protected by a fuse conforming to the values specified in the technical specifications chart. 2. Have an authorized electrician set grounding equipment. Our company shall not be responsible for the damages that shall be incurred due to using the product without grounding according to local regulations.
- Page 11 11. Make sure that there is no liquid or humidity in the outlet where the product plug is installed. 12. The rear surface of the oven also heats up when the oven is operated. Electrical connections shall not touch the rear surface, otherwise the connections may be damaged.
- Page 12 20. Fixed connections shall be connected to a power supply enabling omnipolar disconnection. For appliances with over voltage category below III, disconnection device shall be connected to fixed power supply according to wiring code. Gas Safety 1. This appliance is not connected to burning products evacuation apparatus.This appliance must be connected and installed according to the installation regulations in force.
- Page 13 6. The mechanism cannot be run for longer than 15 seconds. If the burner is not on after 15 seconds, stop the mechanism and wait for at least one minute before trying to ignite the burner again. 7. All kinds of operations to be performed on gas installation must be performed by authorized and competent people.
- Page 14 What To Do When Gas Odour Is Detected 1. Do not use naked flame, and do not smoke. 2. Do not operate any electrical switch. (For example: lamp switch or doorbell) 3. Do not use telephone or mobile phone. 4. Open the doors and windows. 5.
- Page 15 Intended Use 1. This product is designed for home use. Commercial use of the appliance is not permitted. 2. This appliance may only be used for cooking purposes. It shall not be used for other purposes like heating a room. 3.
-
Page 16: Electrical Connection
Electrical Connection 1. Your oven requires 16 or 32 Ampere fuse according to the appliance’s power. If necessary, installation by a qualified electrician is recommended. 2. Your oven is adjusted in compliance with 220-240V AC/380-415V AC 50/60Hz.electric supply. If the mains are different from this specified value, contact your authorized service. -
Page 17: Gas Connection
Gas Connection WARNING: Before starting any work related with gas installation, turn off gas supply. Risk of explosion. Please operate your oven in dry atmosphere. 1. Fit the clamp to the hose. Push one of the hose until it goes to the end of the pipe. - Page 18 For natural gas connection; WARNING: Natural gas connection should be done by authorized service. Main Gas Pipe For natural gas connection, place gasket in the nut at the edge of natural gas connection Gasket hose. To install the hose on main gas pipe, turn the nut.
- Page 19 Nozzle change operation 1. Please use driver with special head for removed and install nozzle as. (figure 3) 2. Please remove nozzle (figure 4) from burner with special nozzle driver and install new nozzle. (figure 5) Figure 3 Figure 5 Figure 4 Ventilation of room The air needed for burning is received from room air and the gases emitted...
- Page 20 Reduced gas flow rate setting for hob taps 1. Ignite the burner that is to be adjustment and turn the knob to the reduced position. 2. Remove the knob from the gas tap. 3. Use an appropriately sized screwdriver to adjust the flow rate adjustment screw.
- Page 21 Removal of the lower and upper burner and installation of the injector to the gas oven Removal of the upper burner: With the help of a screw driver, remove the screw as shown in figure 8. As shown in figure 8.1, remove the injector in the bearing with a socket wrench.
-
Page 22: Introduction Of The Appliance
INTRODUCTION OF THE APPLIANCE 1. Oven control knobs 9. Lamp 2. Hob control knobs 10. Grill 3. Wire grill 11. Deep tray 4. Deep tray 12. Large burner 5. Door 13. Middle burner 6. Handle 14. Auxiliary burner 7. Lower cabinet door 15. -
Page 23: Accessories
Accesories Deep tray Used for pastries, deep fried foods and stew recipes. In case of frying directly on the grill for cakes, frozen foods and meat dishes, it can be used of oil pick-up tray. Wire grill Used for frying and/or placing the foods to be baked, fried and frozen foods on the desired rack. -
Page 24: Technical Features Of Your Oven
Technical Features Of Your Oven Specifications 90x60 Outer width 900 mm Outer depth 610 mm Outer height 925 mm Lamp power 15-25 W Bottom heating element 2000 W Top heating element 1500 W Grill heating element ** 2500 W / 3250 W Turbo heating element 2200 W x 1 / 1250 W x 2 Supply voltage... - Page 25 G20,20 mbar G20,25 mbar G20,13 mbar G20,10 mbar Burner G25,25 mbar Specifications Gas natural Gas natural Gas natural Gas natural Injector 1,40 1,28 1,60 1,60 Gas flow 0,333 m³/h 0,333 m³/h 0,333 m³/h 0,318 m³/h Burner Power 3,50 3,50 3,50 3,33 Injector 1,15...
- Page 26 G30,28-30 mbar G30,50 mbar G30,37 mbar G30,27.5 mbar Burner G31,37 mbar Specifications Injector 0,96 0,76 0,96 0,92 Gas flow Burner Power 3,50 3,50 3,50 3,33 Injector 0,85 0,75 0,85 0,90 Rapid Gas flow 221,7 Burner Power 2,90 2,90 2,90 3,00 Injector 0,65 0,60...
-
Page 27: Installation Of Your Oven
INSTALLATION OF YOUR OVEN Check if the electrical installation is proper to bring the appliance in operating condition. If electricity installation is not suitable, call an electrician and plumber to arrange the utilities as necessary. Manufacturer shall not be held responsible for damages caused by operations performed by unauthorized persons. - Page 28 65 mm min. 65 mm min. WARNING: The kitchen furniture near the appliance must be heat resistant. WARNING: Do not use the door and/or handle to carry or move the appliance. WARNING: Do not install the appliance beside refrigerators or coolers. Heat radiated by the appliance increases the energy consumption of cooling devices.
-
Page 29: Installation Of The Oven Feet
Installation Of The Oven Feet In order to install the oven feet; 1. Foot attachment lath is installed on the oven from the bottom of the oven as shown in (figure 10).Nuts are centered on these lathes in order to screw feet. Complete the feet installation process by screwing the feet to the nuts (figure 11). -
Page 30: Control Panel
CONTROL PANELS 1. Mechanical timer 6. Rear center electric heater 2. Thermostat 7. Rear center electric heater 3. Function selection button 8. Rear right heater 4. Front left heater 9. Front right heater 5. Rear left heater 1. Mechanical timer 5. -
Page 31: Using Oven Section
USING OVEN SECTION Using Oven Burners 1. If your oven equipped with burners that operates with gas, appropriate knob should be used in order to ignite the burners. Some models have automatic ignition from the knob; it is easy to ignite the burner by turning the knob. -
Page 32: Using The Grill
Using The Grill 1. When you place the grill on the top rack, the food on the grill shall not touch the grill. 2. You can preheat for 5 minutes while grilling. If necessary, you may turn the food upside down. 3. -
Page 33: Using Cooker Section
Using Cooker Section Using Gas Burners Flame cut-off safety device (FFD) *; operates instantly when safety mechanism activates due to overflown liquid over upper hobs. 1. The valves controlling the gas cookers have special security mechanism. In order to light the cooker always press on the switch forward and bring it to flame symbol by turnin counterclockwise. - Page 34 Using Hot Plates Level 1 Level 2 Level 3 Level 4 Level 5 Level 6 Ø80 mm 200 W 250 W 450 W Ø145 mm 250 W 750 W 1000 W Ø180 mm 500 W 750 W 1500 W Ø145 mm rapid 500 W 1000 W 1500 W...
-
Page 35: Program Types
PROGRAM TYPES Function Button: Used for determining the heaters to be used for cooking the dish to be cooked in the oven. Heater program types in this button and their functions are described below. All heater types and program types consisting of these heaters may not be available at all models. -
Page 36: Cooking Time Table
COOKING TIME TABLE WARNING: Oven must be preheated for 7-10 minutes before placing the food in it. Cooking Cooking Cooking Cooking Food function temperature (°C) rack time (min.) Cake Static Small cake Static Static Pastry Static+Fan 180-200 20-25 Cookie Static Apple pie Static 180-190... -
Page 37: Maintenance And Cleaning
MAINTENANCE AND CLEANING 1. Disconnect the plug supplying electricity for the oven from the socket. 2. While oven is operating or shortly after it starts operating, it is extremely hot. You must avoid touching from heating elements. 3. Never clean the interior part, panel, lid, trays and all other parts of the oven by the tools like hard brush, cleaning mesh or knife. -
Page 38: Installation Of The Oven Door
Installation Of The Oven Door Figure 19 Figure 20 Figure 19.1 Figure 19.2 Figure 20.1 Figure 20.2 Completely open Bring the hinge Afterwards, close To remove the the oven door by lock to the widest the oven door as to oven door, pull it pulling it to your- angle as shown in... -
Page 39: Cleaning And Maintenance Of The Oven's Front Door Glass
Cleaning And Maintenance Of The Oven’s Front Door Glass Remove the profile by pressing the plastic latches on both left and right sides as shown in figure 21 and pulling the profile towards yourself as shown in figure 22. Then remove the inner-glass as shown in figure 23. If required, middle glass can be removed in the same way. -
Page 40: Changing The Oven Lamp
Changing The Oven Lamp WARNING: To avoid electric shock, ensure that the appliance circuit is open before changing the lamp. (having circuit open means power is off) First disconnect the power of appliance and ensure that appliance is cold. Remove the glass protection by turning as indicated in the figure on the left side. -
Page 41: Using The Grill Deflector Sheet
Using The Grill Deflector Sheet * 1. A safety panel is designed to protect control panel and the buttons when the oven is in grill mode. (figure 26) 2. Please use this safety panel in order to avoid the heat to damage control panel and the buttons when the oven is grill mode. -
Page 42: Troubleshooting
TROUBLESHOOTING You may solve the problems you may encounter with your product by checking the following points before calling the technical service. Check Points In case you experience a problem about the oven, first check the table below and try out the suggestions. Problem Possible Cause What to Do... - Page 43 Problem Possible Cause What to Do Water dripping. Water or steam may generate under Steam coming out from a crack on certain conditions depending on Let the oven cool down and than oven door. the food being cooked. This is not wipe dry with a dishcloth.
-
Page 44: Handling Rules
HANDLING RULES 1. Do not use the door and/or handle to carry or move the appliance. 2. Carry out the movement and transportation in the original packaging. 3. Pay maximum attention to the appliance while loading/unloading and handling. 4. Make sure that the packaging is securely closed during handling and transportation. -
Page 45: Environmentally-Friendly Disposal
ENVIRONMENTALLY-FRIENDLY DISPOSAL Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the frame work for the return and recycling of used appliances as applicable throughout to the EU. - Page 46 P.O. Box 33681 50 Monument Road Lusaka, 10101, Zambia Oranjesig Tel: +260 0211 242332/3 Bloemfontein Fax: +260 0211 242933 Bloemfontein.Service@defy.co.za sgiservicecentre@microlink.zm CAPE TOWN NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) 5A Marconi Rd. Montague Gardens, 7441 CapeTown.Service@defy.co.za 10 Tienie Louw Street, Northern Industrial Area P.O.
