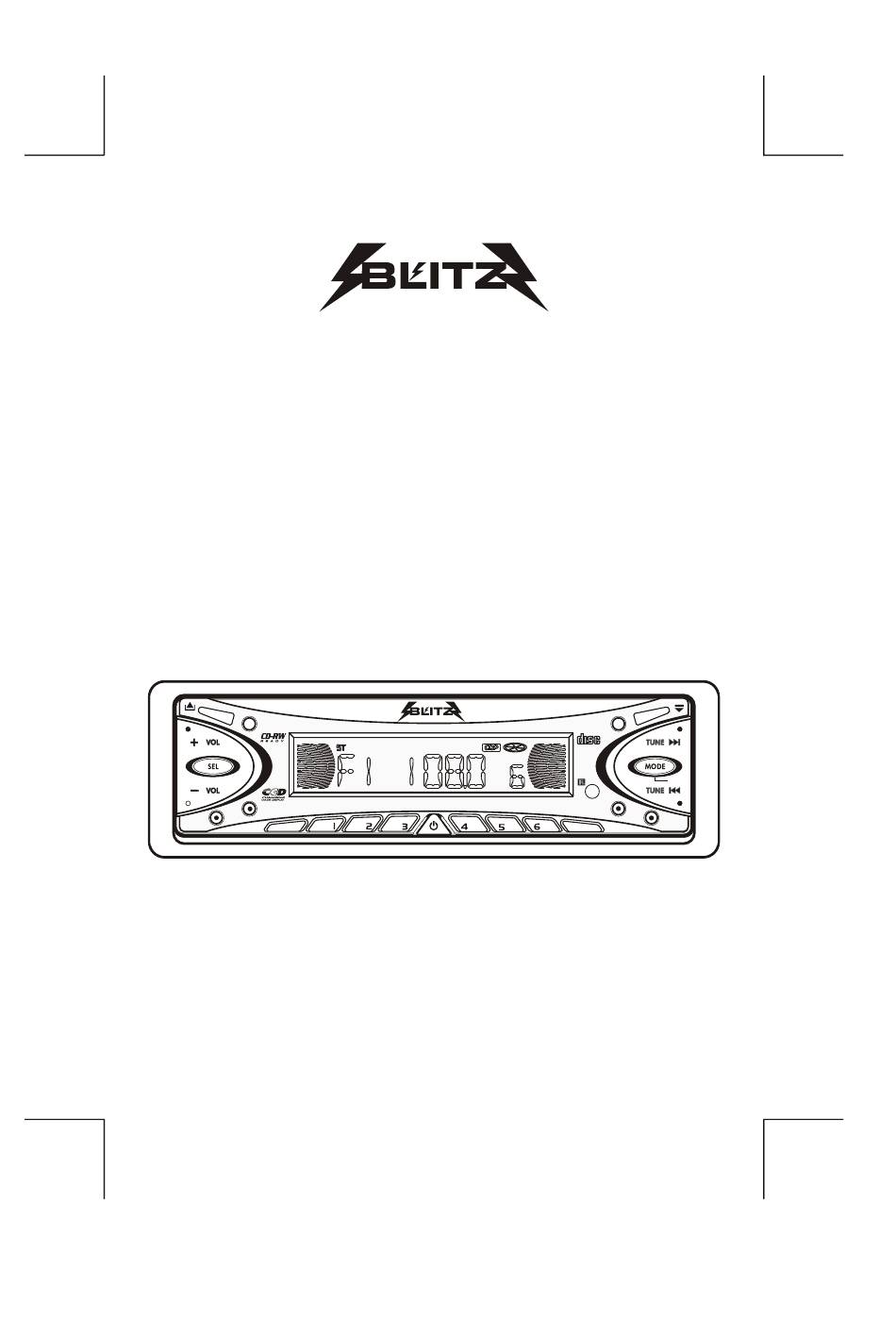

  • Page 1 MUTE SLIDE DOWN SYSTEM COMPACT DIGITAL AUDIO SUB-W BZC-1804CHC CAR COMPACT DISC PLAYER / RECEIVER MONO DISP SCAN BND/LUD F U L L L O G I C M O T O R I Z E D S L I D E D O W N &...
  • Page 2 OPEN RELEASE DISPLAY BUTTON BUTTON BUTTON BUTTON MUTE SLIDE DOWN SYSTEM COMPACT DIGITAL AUDIO SUB-W BZC-1804CHC CAR COMPACT DISC PLAYER / RECEIVER MONO DISP SCAN BND/LUD BAND/ VOLUME PRESET BUTTONS DISPLAY FM STEREO / TUNE / LOUDNESS UP / DOWN...

  • Page 3: Handling Compact Discs

    2. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

  • Page 4: Installation

    3. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
  • Page 5 Removing the unit a. Frame b. Insert fingers into the groove in the front of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove down wards and attach it.) c. Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click.

  • Page 6: Detachable Control Panel (D.c.p .)

    4. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). RELEASE 1. Turn the Power off. BUTTON 2. Press the Panel Release Button. D.C.P . 3. Remove the D.C.P . Attaching the Detachable Control panel (D.C.P .) 1.
  • Page 7 5.PANEL OPEN/CLOSE OPERATION This unit is equipped with the most advanced full logic motorized slide down system. You can enjoy this advance technology with just a single press of the “OPEN” button Please read carefully the following operation instruction before operating the unit. OPEN / CLOSE THE PANEL: Press the Open button to slide down (open) a closed panel or to slide up (close) an opened panel.
  • Page 8 6. WIRING DIAGRAM (20 PIN HARNESS PLUG) FUSE ANTENNA EXTENDER ANTENNA JACK CABLE YELLOW 20-PIN AUX IN AUDIO/POWER HARNESS (OPTION) (See Figure 1) RCA-TO-RCA CABLES (not supplied) SUB WOOFER WHITE RCA-TO-RCA CABLES (not supplied) GREY (OPTION) REAR LINE OUT Power Antenna BLUE Connect to power antenna or amplifier,If not used,Tape bare end of wire.

  • Page 9: Basic Operations

    7. BASIC OPERATIONS 1) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 15)POWER ON/OFF BUTTON Press this button turn on or off the power. 7) DISPLAY BUTTON (DISP) Press this button briefly, the DISPLAY will display the clock for about 2 seconds, then return to previous display mode.

  • Page 10: Radio Operations

    9. RADIO OPERATIONS 4) LOCAL/DISTANT BUTTON (LOC) This key is used to control the sensitivity of the tuner during searching of station. After power on, Local mode is off. Turn on Local mode to receive only the strongest stations. After pressing the button, the current state is displayed on the Display for a few seconds. 11) MONO BUTTON (MONO) When you receive a station,“ST”...

  • Page 11: Remote Control

    11.REMOTE CONTROL TR. DN LOUD TR. UP DISP PAU SCN RPT SHUF OPETATIONS: CD Player Mode Radio Mode 1.Power( ) Power On/Off Power On/Off 2.Select (S) Select vol,Bas, Select vol,Bas, Tre,Fad,Bal Tre,Fad,Bal 3.Volume Up/Down Adjust Vol,Bas, Adjust Vol,Bas, Tre,Fad,Bal Tre,Fad,Bal 4.Tuning Up/Down Tuning/Seek Up/Down Track Up/Down...

  • Page 12: Specifications

    12.SPECIFICATIONS CD PLAYER Compact disc audio system System Compact disc Usable disc 44.1KHz Sampling frequency 1bit No of quantization bits 5-20,000Hz Frequency 2 stereo Number of channels 70dB S/N Ration RADIO SECTION 87.5-107.9 MHz Frequency Range 10.7 MHz Intermediate Frequency Better than 15dB at S/N 30 dB Usable Sensitivity 25 dB at 1KHz...

  • Page 13: Troubleshooting

    13.TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution If the power supply is properly connected No power The car ignition is not on.
