Chicago Pneumatic CP7776 Series Operator's Manual

Chicago Pneumatic CP7776 Series Operator's Manual

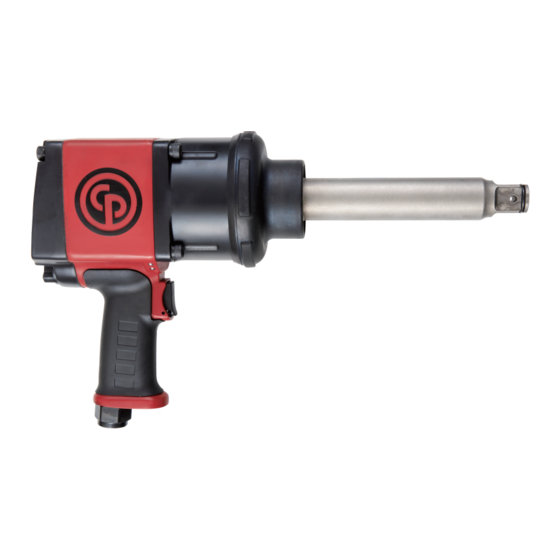

1" impact wrench
Hide thumbs Also See for CP7776 Series:

Advertisement

Quick Links

Operator's Manual
CP7776 Series
1 Impact Wrench
WARNING
To reduce risk of injury, everyone using, installing, repairing, maintaining,
changing accessories on, or working near this tool must read and
understand these instructions, as well as separately provided safety
instructions part number 6159948710, before performing any such task.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP7776 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chicago Pneumatic CP7776 Series

  • Page 1 Operator’s Manual CP7776 Series 1 Impact Wrench WARNING To reduce risk of injury, everyone using, installing, repairing, maintaining, changing accessories on, or working near this tool must read and understand these instructions, as well as separately provided safety instructions part number 6159948710, before performing any such task.
  • Page 2 Air Diagram: 13mm 13mm 13mm 13mm 13mm 13mm 13mm 13mm 13mm Fig. 1 Torque Air Consumption Vibrations Sound- Sound- Dimension Inner Hose Drive Speed Weight Air Inlet Pressure Power Dia. L x H x W Working Average At load Model [ft.lbs] [ft.lbs] [lb]...
  • Page 3 We, CHICAGO PNEUMATIC TOOLS , cannot be held liable for the consequences of using the declared values, instead of values reflecting the actual exposu- re, in an individual risk assessment in a work place situation over which we have no control.
  • Page 4 SAFETY INSTRUCTIONS DO NOT DISCARD - GIVE TO USER • Our goal is to produce tools that help you work safely and efficiently. Note: So-called “click” torque wrenches do not check for potentially The most important safety device for this or any tool is YOU. Your care dangerous over-torque conditions.
  • Page 5 protective equipment when working with materials which produce Your risk from these exposures varies, depending on how often you do airborne particles. this type of work. To reduce your exposure to these chemicals: work in a • Some dust created by power sanding, sawing, grinding, drilling and well ventilated area, and work with approved safety equipment, such as other construction activities contains chemicals known to the State of dust masks that are specially designed to filter out microscopic particles.
  • Page 6 CP7776 Series Impact Wrench Model D 30 29 28 20 21 Index Index Parts No. Description Parts No. Description 8940169478 Hammer Case Complete 8950221117 Cylinder Washer 8950221116 Rotor Screw 8950221442 Rotor Blade (Set of 6) Bushing 8950240207 Hammer Cage 8950240208 Hammer Case Assembly ( incl.44 )
