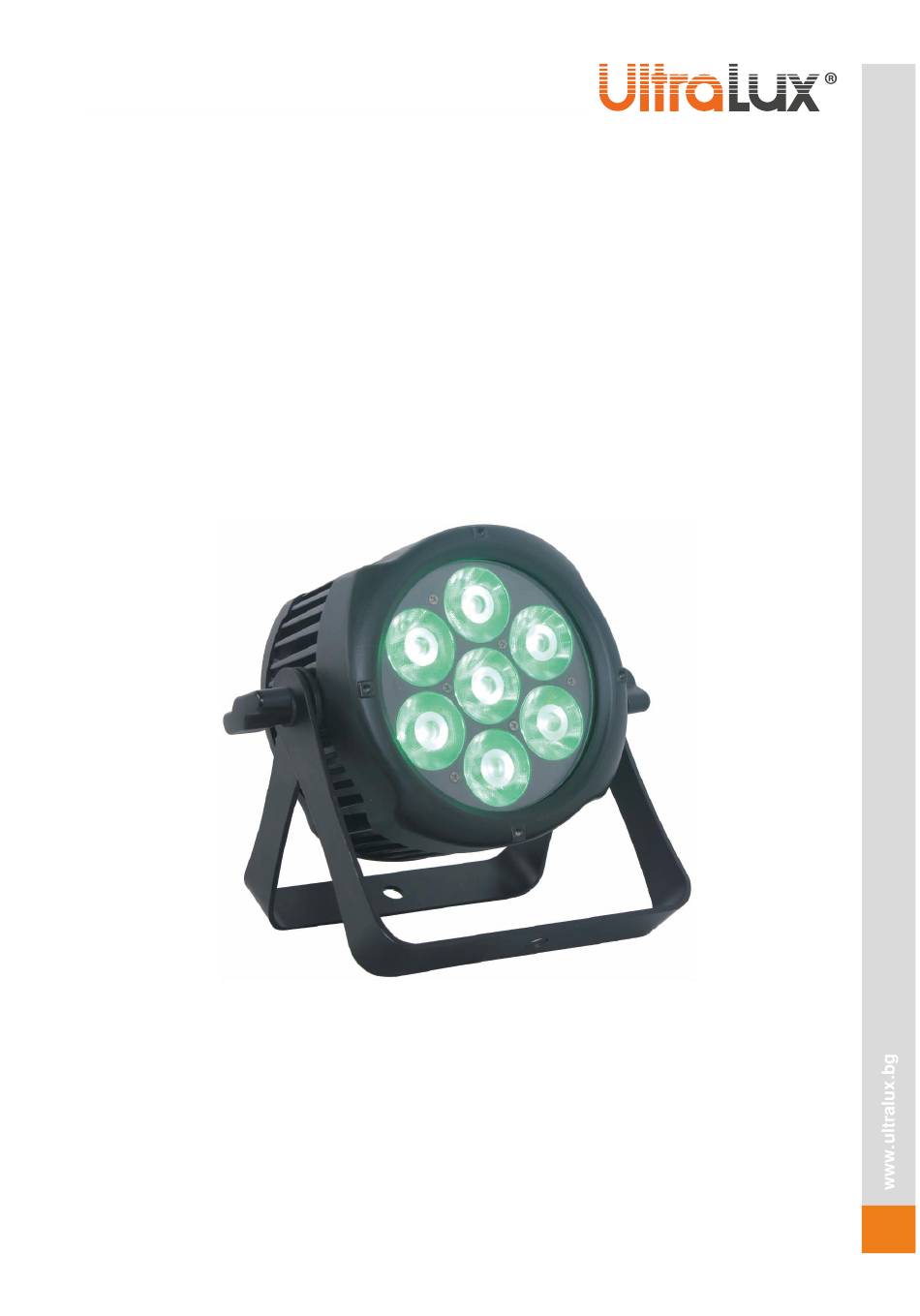

- Page 1 USER MANUAL RGBW LED FLOODLIGHT WITH DMX CONTROLLING SPX22080 Please, read carefully before operating the floodlight!
-
Page 2: Product Information
PRODUCT INFORMATION RGBW FLOODLIGHT SPX22080 has three operating modes: AUTO, DMX and MASTER/SLAVE. The DMX mode has 5 channels: channel 3, channel 4, channel 6, channel 8 и channel 11. The floodlight has 21 built-in programs and an editing option in the AUTO mode. Several floodlights in DMX mode can be connected and those in SLAVE mode will follow the program of the floodlight in AUTO mode. -
Page 3: Program Menu
PROGRAM MENU DISPLAY 1. DMX means, that the floodlight is in DMX mode; respectively SLAVE means, that the floodlight is in SLAVE mode; 2. The color of the dot represents the condition of signal transmission. Green indicates that the signal is good, while red means that the signal is interrupted;... - Page 4 In this menu, you can connect several floodlights with a DMX cable and control them with a single DMX console / controller. 1. Press the ENTER button, after that UP or DOWN until DMX is displayed; 2. Press ENTER again. You can select either CHANNEL or ADDRESS with pressing ENTER again. 2.1.
- Page 5 CUSTOMER In this menu, you can program the floodlight to a personally adjusted mode. 1. Press the ENTER button, after that UP or DOWN until CUSTOMER is displayed; 2. Press ENTER again to choose one of the 11 pre-programmed modes that can be adjusted from the EDIT menu.
-
Page 6: Dmx Mode
DMX MODE DMX channel 3 Channel Value Function 0-255 0-255 Saturation 0-255 Value(brightness) DMX channel 4 Channel Value Function 0-255 Adjust red LEDs Dimmer from low to high 0-255 Adjust green LEDs Dimmer from low to high 0-255 Adjust blue LEDs Dimmer from low to high 0-255 Adjust white LEDs Dimmer from low to high DMX channel 6... - Page 7 88 - 91 yellow 2 92 - 95 straw 96 - 99 orange 2 100 - 103 light rose 104 - 107 dark pink 108 - 111 magenta 2 112 - 115 blue 2 116 - 119 med blue green 120 - 123 dark blue 124 - 127...
- Page 8 71 - 80 R100%/G0%/B0%/Wup 81 - 90 R100%/G0%/B0%Wdown 91 - 100 R↑/G↓/B0%/W0%→R↓G↑/B0%/W0% 101 - 110 R↑/G0%/B↓/W0%→R↓/G0%B↑/W0% 111 - 120 R0%/G↑/B↓/W0%→R0%/G↓/B↑/W0% 121 - 130 R↑/G↑/B↓/W0%→R↓/G↓/B↑/W0% 131 - 140 R↑/G↓/B↓/W0%→R↓/G↑/B↑/W0% 141 - 150 R↑/G↓/B↑/W0%→R↓/G↑/B↓/W0% 151 - 160 R↑/G0%/B↓/W0%→R↓/G↑/B0%/W0%→R0%/G↓/B↑/W0% 161 - 170 R↑/G100%/B↓/W0%→R100%/G↓/B↑/W0%→R↓/G↑/B100%/W0% R↓/G↑/B0%/W0%→R0%/G↓/B↑/W0%→R0%G0%/B↓/W↑...
- Page 9 channel 11 (ID address set) 0--9 ID address 170--179 Id17 Id34 Id51 10--19 180--189 Id18 Id35 Id52 20--29 190--199 Id19 Id36 Id53 30--39 200--209 Id20 Id37 Id54 40--49 Id21 Id38 Id55 50--59 Id22 Id39 Id56 60--69 Id23 Id40 Id57 70--79 Id24 Id41 Id58...
- Page 10 UPLOADING A PROGRAM First, select the floodlight that is going to be leading (MASTER) and have its program prepared in the EDIT menu beforehand. After that, connect all the floodlights with DMX cables, choose UPLOAD from the menu of the MASTER floodlight and press ENTER. Its program would be transferred to all the floodlights in SLAVE mode.
-
Page 11: Mechanical Parameters
MOUNTING The area where the floodlight would be mounted must be able to hold 10 times its weight without being deformed. When mounting, the floodlight must be additionally reinforced with a special mounting cable, in case the mounting bracket breaks. Never stand directly under the floodlight when it is being mounted, dismounted, or serviced.
