- Page 1 Framework™ Model: FRANBP0000, FRANPA0000 2022 — Revision 6 Product: Portable Computer Computer Inc Have questions? We are here to help! Get support...

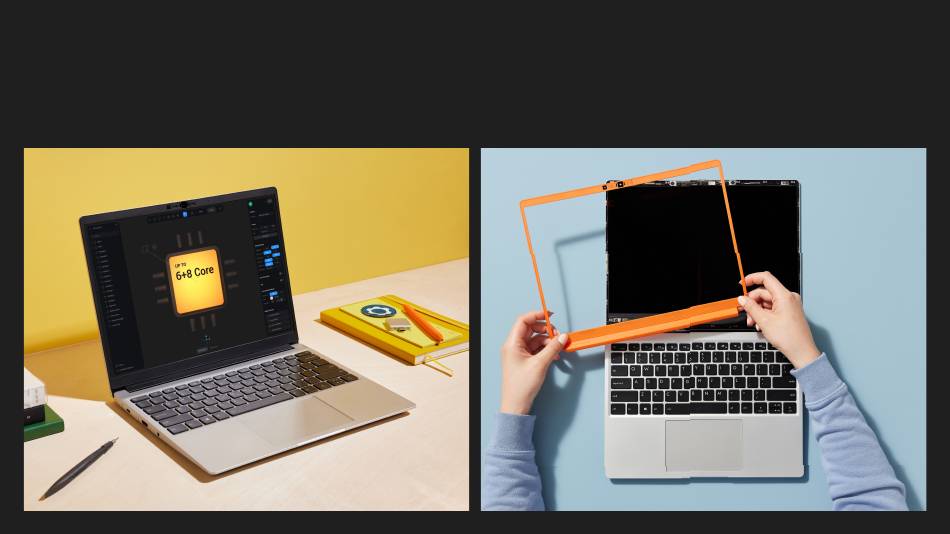

- Page 2 System photos Have questions? We are here to help! Get support...
- Page 3 Laptop overview Microphone privacy switch. Expansion Card. Camera privacy switch. Expansion Card release button. Power button and fingerprint reader. Five fasteners to get inside the Framework Laptop. Touchpad. Have questions? We are here to help! Get support...
-
Page 4: Important Safety And Handling
5. For instructions on the reassembly of the Framework™ Laptop - please refer to the replacement instructions in the reverse Do not use the Framework™ Laptop if its cover has been broken order. and the battery’s plastic or mylar cover has been cracked or... - Page 5 5C -35C (41F - 95F) (operating). Do not use the Framework™ Laptop if its cover has been broken and the battery’s plastic or mylar cover has been cracked or compromised in any way.
- Page 6 Framework™ Component Base Performance Professional Laptop technical Model FRANBP0000, FRANPA0000 FRANBP0000, FRANPA0000 FRANBP0000, FRANPA0000 & certification Processor I/Os 11th Gen Intel® Core™ 11th Gen Intel® Core™ 11th Gen Intel® Core™ i5-1135G7 (8M Cache, up to 4.20 GHz) i7-1165G7 (12M Cache, up to 4.70 GHz) i7-1185G7 (12M Cache, up to 4.80 GHz)
- Page 7 Framework™ Component Base Performance Professional Laptop technical Biometrics Fingerprint Reader Fingerprint Reader Fingerprint Reader & certification Dimensions 296.63mm x 228.98mm x 15.85mm 296.63mm x 228.98mm x 15.85mm 296.63mm x 228.98mm x 15.85mm information Weight 1.3kg 1.3kg 1.3kg Power Adapter 60W USB-C...
- Page 8 Laptop Result Region Directive Test standard Category certification Pass Global RoHS Directive 2011/65/EU Green information Pass Global REACH (SVHC) Regulation (EC) no 1907/2006 Green Declaration Pass Global Halogen IEEE Std. 1680.1-2018 Green Free (HF) Requirement Pass DOE & CEC CEC BCS: California Code of Regulations, Title 20, Green Division 2, Chapter 4.
- Page 9 Laptop Result Region Directive Test standard Category certification Pass EN 5532:2015+A11:2020 Class B, EN 55035:2017+A11:2020 information Pass FCC CFR Title 47, Part 15, Subpart B, Class B Pass Japan VCCI CISPR 32: 2015 + COR1:2016 Class B Pass Australia CTICK CISPR 32: 2015 + COR1:2016 Class B New Zealand Pass...
- Page 10 Laptop Result Region Directive Test standard Category certification Pass Australia ACMA AS/NZS 4268:2017, AS/NZS 2772.2:2011 New Zealand information Pass Taiwan LP0002 Result Region Green Safety Pass Global RoHS, REACH, Halogen Free Requirement Pass European Union ErP lot3 or 6/26, WEEE Pass United Kingdom UKCA...
-
Page 11: Emc Declarations Of Conformity
EMC declarations EMC Emissions Class refers to one of the following use environments: of conformity EMC Class B products are intended for use in residential/ domestic environments but may also be used in non- residential/non-domestic environments. Have questions? We are here to help! Get support... - Page 12 RF classification RF OUTPUT Model number Max Output Power dBuA/m Classification Laptop FRANBP0000 System FRANPA0000 Mainboard FRANFG0000 Peripheral Mainboard FRANMA000 Peripheral Keyboard FRANBK0000 Peripheral Touchpad FRANFT0001 Peripheral Camera FRANCPPA01 Peripheral Speaker FRANBX0001 Peripheral Display FRANFX0001 Peripheral Expansion Card HDMI FRACCHBZ01...
-
Page 13: European Union
The product is affixed Laptop declaration with regulatory marking and text as necessary for the country/ agency. All certifications pertain to Model Number: FRANBP0000, of conformity FRANPA0000 European Union... - Page 14 Declaration of the Presence Condition of the Restricted Substances Marking of conformity 設備名稱 ： 筆記型電腦 ， 型號 （型式） ： 備考1. 〝超出0.1 wt %〞 及 〝超出0.01 wt %〞 Equipment Name: Framework Computer | Type Designation (Type): FRANBP0000, FRANPA0000 係指限用物質之百分比含量超出百分比含 量基準值 限用物質及其化學符號 Restricted substances and its chemical symbols Note 1: “Exceeding 0.1 wt %”...
- Page 15 Products that are relocated to other countries should use nationally certified power cords and plugs to ensure safe operation of the product. Contact Framework to determine if alternate power cords or user documentation in other languages is available for your market.
- Page 16 Accessory technical Power Cord Certification Information and certification Pass USA/Canada UL+CB via UL UL 60950-1, 2nd Edition ,CAN/CSA C22.2 No. 60950-1-07, 2nd Edition UL 62368-1, 2nd Edition, CAN/CSA C22.2 No. 62368-1-14, 2nd Edition IEC 60950-1:2005 (Second Edition) + AMD 1:2009 + AMD 2:2013 information IEC 62368-1:2014 (Second Edition) Pass...
- Page 17 Accessory technical Battery Technical Information and certification Framework Model Number Description Type Battery Weight (Kg) information FRANBB0000 55Wh Rechargeable Lithium Ion <10Kg Battery Certification Information Pass Global UN38.8 UN Recommendations on transport of dangerous goods. Manual of tests and Criteria ST/SG/AC.10/11/Rev. 6/Amend.1 38.3...
- Page 18 Accessory technical Expansion Card Certification Information and certification Status Region Test Test Specification information Pass CE - Directive 2014/30/EU EN 55032:2015 +A11:2020, Class B EN 61000-3-2:2014 (Not Applicable) EN 61000-3-3:2013 (Not Applicable) EN 55024:2010 EN 55024:2010 +A1:2015 EN 55035:2017 +A11:2020 EN 61000-4-2:2009 / IEC 61000-4-2:2008 ED.
- Page 19 USB Type C to Ethernet: 5Vdc/185mA Peripheral Datasheet responsible party name and address Responsible Party Address Website Framework Computer Inc 1870 Odgen Dr, Burlingame, CA https://frame.work 94010, USA, +1 (415) 475 3769 Have questions? We are here to help! Get support...
-
Page 20: End Of Life Product Disposal
Intel Speed Shift Technology Default: On This option is used to Enable/disable intel speed shift technology. The trash can symbol on the Framework Laptop or on its packaging indicates that it must not be disposed of with your USB Wake Up Support Default: On other household waste, pursuant to 2012/19/EU. -
Page 21: Registered Trademarks
Bluetooth SIG, Inc. and any use of such marks by Framework is under license. Copyright Copyright © 2022 Framework Computer Inc. All Rights Reserved. The total or even partial reproduction, transmission or storage of this guide in any form or by any process whatsoever (electronic, mechanical, photocopy, recording, or otherwise) is strictly prohibited without prior consent from Framework Computer Inc.
