Summary of Contents for Moser Systemelektrik TerraMo

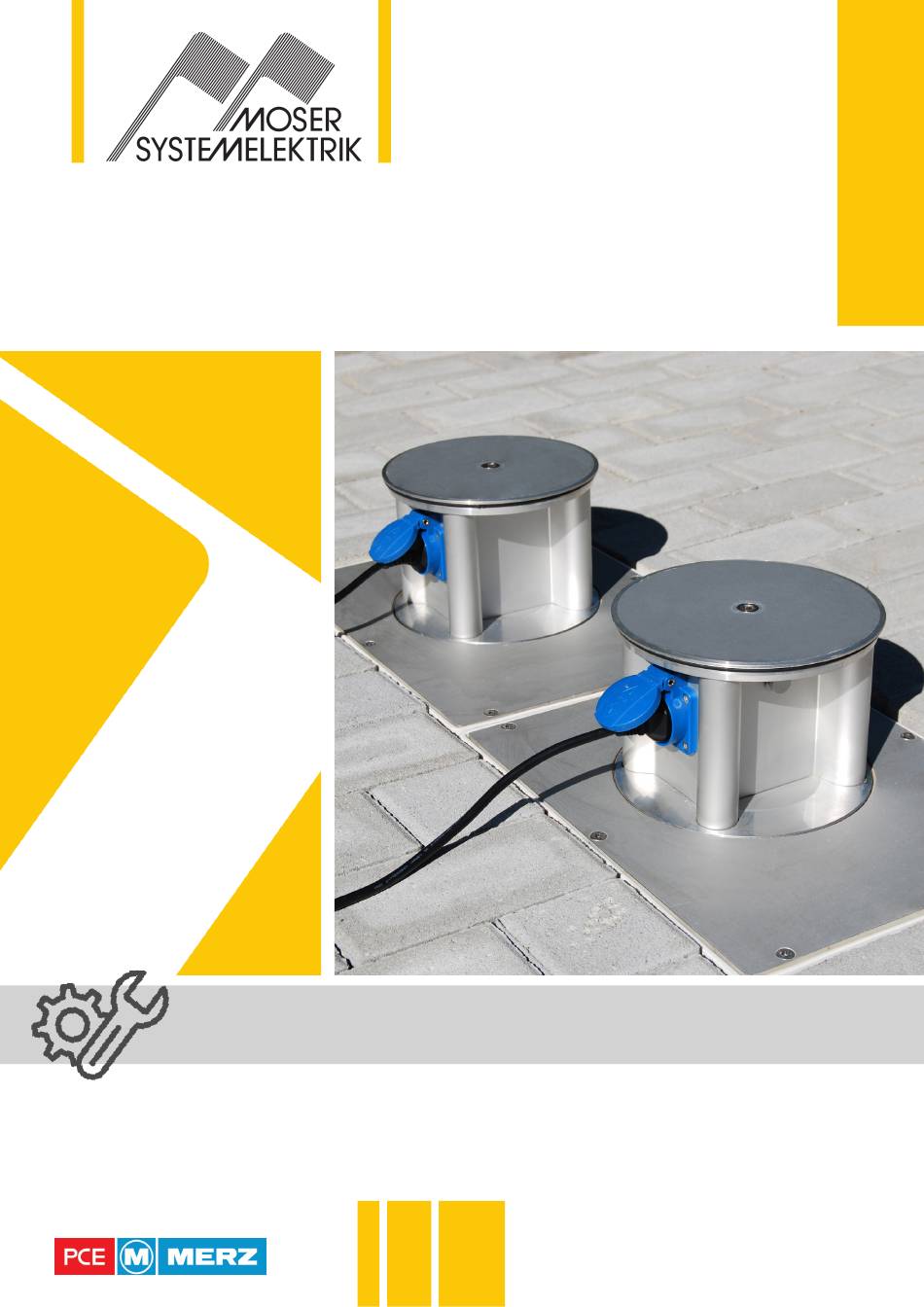

- Page 1 INSTRUCTION MANUAL TERRAMO Industrieprogramm Bedarfsgerechte Versorgung Forward-looking connection system from a dynamic and flexible expert for supply systems. A company of the PCE Group...
- Page 2 The electrical connection of the underfloor unit may only be carried out by by qualified electricians. The connection to the drainage is absolutely necessary, otherwise there is a risk of flooding of the system. The TerraMo must not be put into operation in case of flooding! I. Underground construction Excavation 1.
- Page 3 TerraMo - Instruction manual Illustration 1 Illustration 2 Alingnment Concrete OKKF OKKF Floor covering Ground Cable inlet Cable outlet Concrete Drainage Inserting the system into the bottom tray 1. Note the plug position and insert the system into the base tray.
- Page 4 ll. Drainage For safety reasons and for the proper functioning of the system, the control of the floor pan drainage is absolutely necessary. Water that has penetrated into the floor pan can be drained off via the DN40 pipe installed in the sump. From there, the customer must provide a connection to the sewerage system or to a sufficiently large seepage bed of pebbles or similar.
- Page 5 TerraMo - Instruction manual lV. Maintenance and care If after some time impurities have accumulated in the tub due to lifting and lowering, remove them. Be sure to switch off the supply line fuse before opening! 1. Loosen the six screws, extend the device unit and switch off the power supply.
- Page 6 Our sales team will be at your disposal. Phone +49 7971 252-70 Fax +49 7971 252-711 info@moser-systemelektrik.de www.moser-systemelektrik.de MOSER SYSTEMELEKTRIK GMBH Kernerstrasse 15 | 74405 Gaildorf | Germany Tel. +49 7971 252-70 | Fax. +49 7971 252-711 MOSER TERRAMO INSTRUCTION MANUAL info@moser-systemelektrik.de | www.moser-systemelektrik.de X0011500481...
