Summary of Contents for allen Power Vibe Series

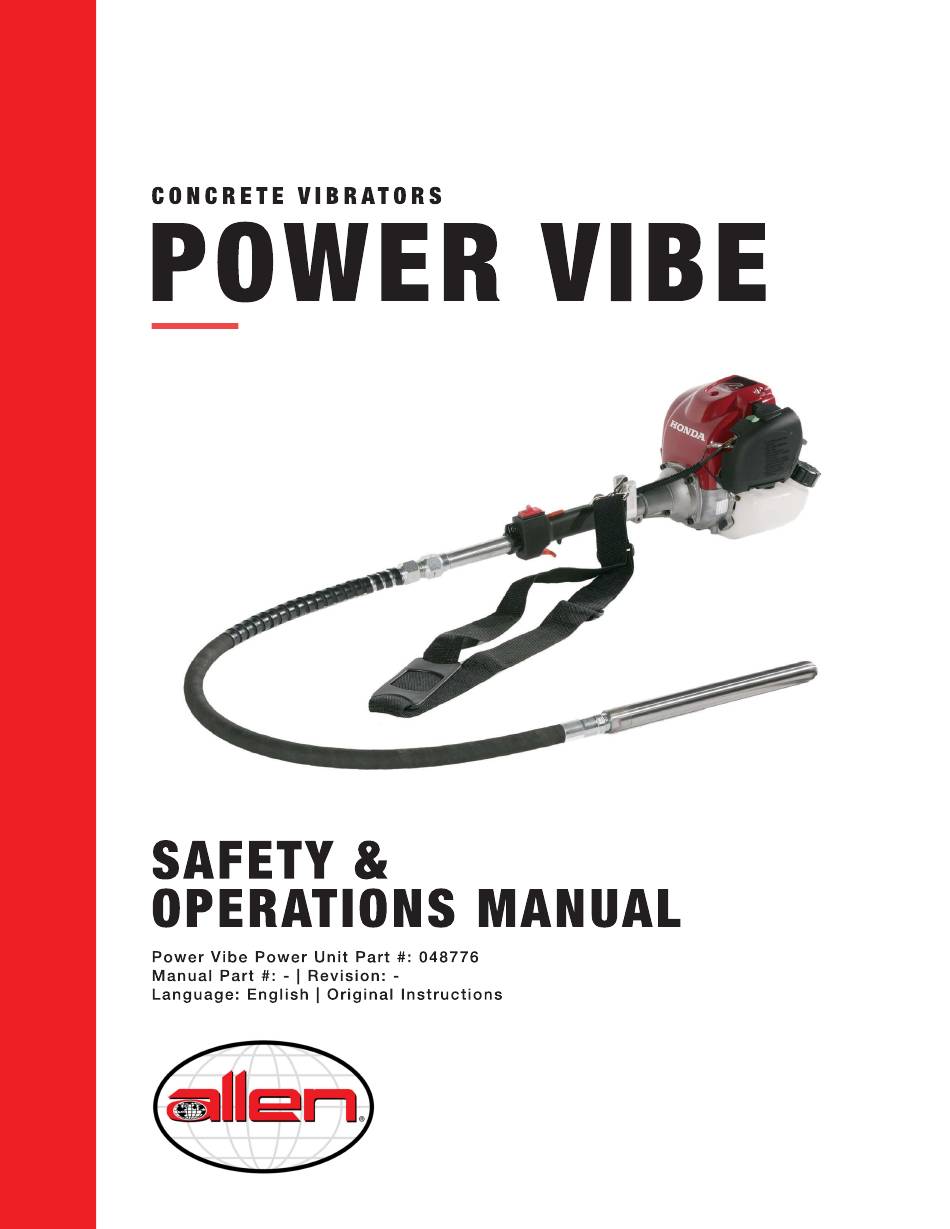

- Page 2 Power Vibe Series MANUAL...
-
Page 3: Operation
Table of Contents COVER .TABLE OF CONTENTS COMPANY INFORMATION 3-4.. .SAFETY RULES ..OPERATION .TOOL USE AND CARE ..SERVICE ..MAINTENANCE ..CLEANING ..HM300CH - HUMMER POWER UNIT ASSEMBLY & PARTS LIST .HM300 - THROTTLE GRIP ASSEMBLY & PARTS LIST .HM41H - HUMMER FISHING POLE POWER UNIT ASSEMBLY & PARTS LIST HM400 - FISHING POLE THROTTLE GRIP ASSEMBLY &... -
Page 4: General Safety Rules
GENERAL SAFETY RULES WARNING! Read and Fully understand all instructions. Failure to follow all instructions listed below, may result in fire and/or serious personal injury. SAVE THESE INSTRUCTIONS WORK AREA Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. -
Page 5: Specific Safety Rules
SPECIFIC SAFETY RULES o Always keep your hands and face away from vibrating head when operating. o Keep hands away from moving parts. o Ensure your hands are not wet when using the corded or cordless vibrator. o Use both hands for safe handling of this tool. This tool should not be used while standing on a ladder. - Page 6 NOTE: Vibrating too long in a single place can cause concrete segregation. When the coarse aggregate segregates when placing concrete, shovel out the coarse aggregate and put it where there is plenty of mortar. Then use the tool on it. Don t leave coarse aggregate in the segregated condition.
-
Page 7: Maintenance

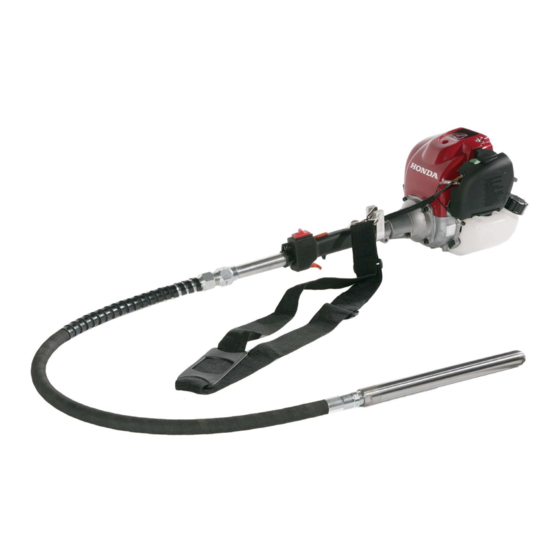

TOOL USE AND CARE Store idle tools out of reach of children and other untrained persons. Tools are dangerous in the hands of untrained users. Maintain tools with care. Keep cutting tools sharp and clean. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool s operation. - Page 8 048776 - HUMMER POWER UNIT W/HONDA ENGINE MV80 - ITEMS NOT FURNISHED BY HONDA FC20 - 1.0 X 20 M6 SHCS QTY: 4 MV63 - SHOULDER STRAP NOT SHOWN FOR CLARITY SHIM STOCK QTY: 1 MV64 - SPLINE TO CABLE ADAPTOR QTY: 1 MV73 - 1"...
- Page 9 HM300 - THROTTLE GRIP ASSEMBLY ITEM NO. PART NUMBER DESCRIPTION MATERIAL QTY. HM307 1" X 15.75" ALUM TUBING HM308 1" MALE FITTING HM302 14.5"STAR LINER HM304-1 SHOULDER STRAP ADAPTER 049183 SHOULDER STRAP HM303 17" DRIVE CABLE MV308 1/4-20 x .5 SET SCREW...
- Page 10 MV80 - ITEMS NOT 048793- HUMMER FISH POLE POWER UNIT FURNISHED BY HONDA FC20 - 1.0 X 20 M6 SHCS QTY: 4 MV63 - SHOULDER STRAP NOT SHIM STOCK SHOWN FOR CLARITY QTY: 1 MV64 - SPLINE TO CABLE ADAPTOR QTY: 1 MV73 - 1"...
- Page 11 HM400 - FISH POLE THROTTLE GRIP ASSEMBLY ITEM NO. PART NUMBER DESCRIPTION MATERIAL QTY. HM450 1" X 33.75" ALUM TUBING HM308 1" MALE FITTING HM452 31-1/2"STAR LINER HM304-1 SHOULDER STRAP ADAPTER HM301 SHOULDER STRAP HM451 35" DRIVE CABLE MV308 1/4-20 x .5 SET SCREW...
- Page 12 HM100 -1"X12" VIBRATOR ASSEMBLY & PARTS LIST ITEM NO. PART NUMBER DESCRIPTION MATERIAL QTY. HM140 ECCENTRIC WEIGHT - 1X12 VIBRATOR HM120 BEARING - 1X12 VIBRATOR HM110 NOSE CAP - 1X12 VIBRATOR HM130 SHELL - 1X12 VIBRATOR HM150 THREADED CAP - 1X12 VIBRATOR HM180 FEMALE CABLE ADAPTOR - 1X12 VIBRATOR MV800 - 2"X8"...
- Page 13 MV200 - 2X4 VIBRATOR ASSEMBLY AND PARTS LIST ITEM NO. PART NUMBER DESCRIPTION MATERIAL QTY. MV210 NOSE CAP - 2X4 VIBRATOR MV220 BEARING 2X12 MV230 SHELL - 2X4 VIBRATOR MV240 ECCENTRIC WEIGHT - 2X4 VIBRATOR MV250 THREADED CAP 2X12 VIBRATOR...
