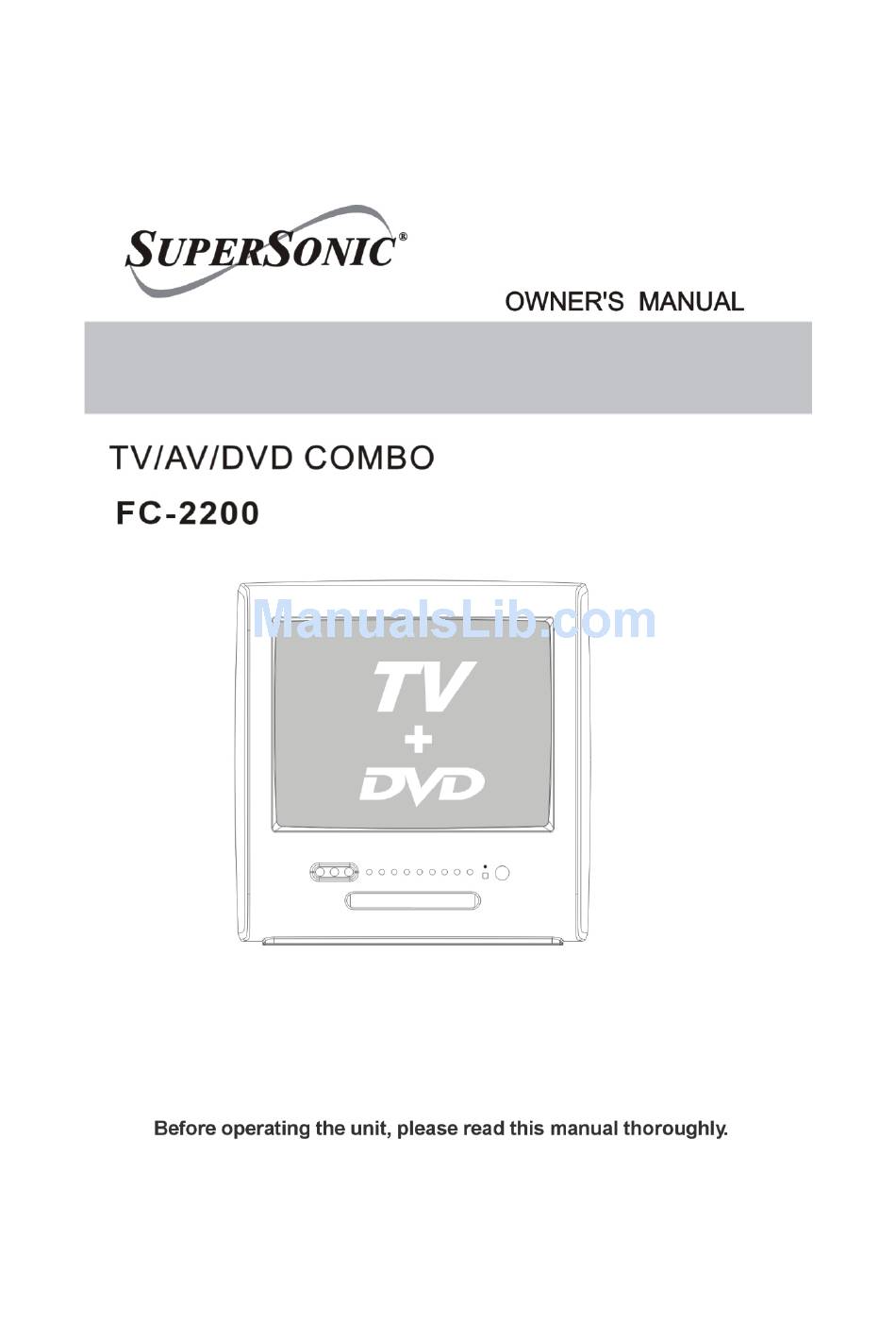

Tv/av/dvd combo

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FC-2200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Supersonic FC-2200

  • Page 2: Table Of Contents

    Installation... Antenna Connection Preparation of the remote control... Part s and function... Front panel of the TV set... Rear panel of the TV set... Using the remote control... The other video and audio equipment Connections Antenna connections ... Cable TV connections ...
  • Page 3: Important Safety Instructions

    CAUTION RISK ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
  • Page 4 Important safety Instructions 15) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus. 16) The mains plug or appliance inlet is used as the disconnect device, remain it readily operable during the apparatus normal use.
  • Page 5 32) NOTE TO CABLE TV SYSTEM INSTALLER This reminder is provided to call the Cable TV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
  • Page 6: Installation

    Installation Antenna connection If the picture is not clear or is snowy, it is recommended that an External Aerial is used, this is usually mounted outside. twin-lead cable Antenna adapter (Not supplied) 75 coaxial cable Plug (Not supplied) Note: * It is recommended that a 75 ohm coaxial antenna is used to avoid interference.
  • Page 8: Using The Remote Control

    PROGRAM ZOOM D.CALL Buttons on the remote control Power Switch Open/close DVD Tray TV / AV Mode Selection TV / DTV Mode Selection ( The function is not available) TV / DVD Mode Selection Mute Sound Q.VIEW button: Return to Previous Channel...
  • Page 9: The Other Video And Audio Equipment Connections

    The other video and audio equipment Connections You can connect the DVD,VCR and stereo system to the output to enjoy a higher quality of picture and sound effect. ANT IN DC IN...
  • Page 10: Antenna Connections

    If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a cable TV service (CABLE), see the Cable TV connections. Combination VHF/UHF antenna (Single 75 ohm cable or 300 ohm twin-lead wire)
  • Page 11: Cable Tv Connections

    SCRAMBLED PREMIUM CHANNELS If you subscribe to a cable TV service in which basic channels are unscrambled and premium channels require the use of a converter/descrambler box, you may wish to use a signal splitter and an A/B switch box (available from the cable company or an electronics supply store).
  • Page 12: Connections For Other Equipment

    To connect the TV to a Video Game The TV can also be used as a display device for many video games. However, due to the wide variety of formats, they have not all been included in the suggested connection diagram. Y oul need to consult each component's Owner's Manual for additional information.
  • Page 13: Setting The Language And Blue Screen

    CH- button to enter. Press CH+/- button to select the BLUE SCREEN option, then press VOL+/- to select OFF or ON. Press MENU until the MENU screen disappears. ) to turn on the TV. FUNCTION LANGUAGE BLUE SCREEN NTSC CAPTION...
  • Page 14: Channel Menu

    (When using antenna) The channels broadcasted in DTV and ATV are automatically scanned and memorized. Only the POWER TV/AV TV/DVD OPEN/CLOSE receivable channels in the area where this TV is used will be memorized. TV/DTV Q.VIEW INFO MUTE (When using basic cable) The channels broadcasted in CATV are automatically scanned and memorized.
  • Page 15 Press MENU, and then press VOL+/- button to select CHANNEL menu, then press CH- button to POWER TV/AV TV/DVD OPEN/CLOSE enter. Q.VIEW INFO TV/DTV MUTE Press CH+/- button to select the SKIP option, then press VOL+/- button to select ON or OFF.
  • Page 16: Channel Selection

    Using CH +/- button Using CH +/- button on the remote control, change the channel. POWER TV/AV TV/DVD OPEN/CLOSE Same operation is available with CH +/- button on the front panel of the main unit. TV/DTV Q.VIEW...
  • Page 17: Volume Adjustment

    Every time you press SAP button on the remote control, the language will be switched. Languages you can switch differ depending on the receiving broadcast. NOTE: Pressing the SAP button works only with some TV channels, and does not work with external equipment such as DVD players. Volume adjustment...
  • Page 18: Screen Information

    Display the channel number and the audio mode. Press INFO button on the remote control. The currently selected channel number and the audio POWER TV/AV TV/DVD OPEN/CLOSE mode are displayed at the top right of the screen. Q.VIEW INFO TV/DTV MUTE To clear the display, press INFO button again.
  • Page 19: Video Menu

    SETTING VIDEO Press MENU button. The main menu screen will appear. Press VOL+/- button to POWER TV/AV TV/DVD OPEN/CLOSE select VIDEO Option, then press CH- button TV/DTV Q.VIEW INFO MUTE to enter. P.MODE Press CH+/- to select the desired option, then press VOL+/- to adjust.
  • Page 20: Audio Menu

    SETTING AUDIO Press MENU button. The main menu screen will appear. Press VOL+/- button to select AUDIO Option, then press CH- button POWER TV/AV TV/DVD OPEN/CLOSE to enter. Q.VIEW INFO TV/DTV MUTE Press CH+/- to select P.MODE the desired option, then press VOL+/- to adjust.
  • Page 21: Manual Time Setting

    TO SET TIME Press MENU. The main menu screen will appear. Press VOL+/- button to select TIME option, then press CH- button POWER TV/AV TV/DVD OPEN/CLOSE to enter the submenu. Q.VIEW INFO TV/DTV MUTE Press CH+/- button to select TIME, then press CH+/- button to select "--:--","AM";...
  • Page 22: Setting The On/Off Timer

    This feature allows you to have the SETTING THE TIMER ON TV automatically turn on/off at a time. If you program predetermined the ON/OFF TIMER, the TV will turn on/off at the time your predetermined time. POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW...
  • Page 23: Function Menu

    D.MENU REPEAT CAPTION PLAY/ENTER SLOW The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for TITLE/PBC SEARCH ANGLE the hearing impaired. AUDIO PROGRAM ZOOM D.CALL...
  • Page 24 PARENTAL LOCK, then press VOL+ to enter the submenu. Enter the password (4 digits) using the number buttons(0-9). The TV is set up with the initial password 0000. PARENTAL LOCK MPAA RATING PARENTAL GUIDE CA ENG RATING CA FREN RATING...
  • Page 25 TO CHANGE PASSWORD Press MENU. The main menu screen will appear. Press VOL+/- to select FUNCTION, then press CH- to enter the submenu. POWER TV/AV TV/DVD OPEN/CLOSE TV/DTV Q.VIEW INFO MUTE Press CH+ to select PARENTAL LOCK, then press VOL+ to enter the submenu.
  • Page 26 TV Rating General: ALL (Age) (applies to TV-G, TV-PG, TV-14, TV-MA) D (Dialogue - sexual dialogue) (applies to TV-PG, TV-14) L (Language - adult language) (applies to TV-PG, TV-14, TV-MA) S (Sex - sexual situations) (applies to TV-PG, TV-14, TV-MA) V (Violence)
  • Page 27 Enter the Press CH+/- button to select MPAA RATING, then press VOL+ button to enter the submenu. POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO TV/DTV MUTE Press CH+/- button to select the desired rating. Rating for Movies previously shown in theaters: P.MODE...
  • Page 28: Closed Caption

    Some cable systems and copy protection systems may interfere with the closed captioned signal. If using an indoor antenna or if TV reception is very poor, the closed caption decoder may not appear or may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.
  • Page 29: Dtv Caption Menu

    In DTV mode Press MENU. The main menu screen will appear. Press VOL+/- button to select FUNCTION then press CH- button POWER TV/AV TV/DVD OPEN/CLOSE to enter the submenu. Q.VIEW INFO TV/DTV MUTE Press CH+/- button to select DTV CAPTION.
  • Page 30 SETTING THE DTV CAPTION STYLE The DTV caption style function lets you change the caption size and font style. Press MENU. The main menu screen will appear. POWER TV/AV TV/DVD OPEN/CLOSE Press VOL+/- button to Q.VIEW INFO MUTE TV/DTV select FUNCTION then press CH- button to enter the submenu.
  • Page 31 SETTING THE DTV CAPTION STYLE(continue) Style Select this option to select the font style of caption display according to your own preference. Press the VOL+/- button to select Style1, Style2, Style3, POWER TV/AV TV/DVD OPEN/CLOSE Style4,Style5, Style6, Style7, Style8. TV/DTV Q.VIEW INFO MUTE Size Select this option to select the size of caption display according to your own preference.
  • Page 32 POWER TV/AV TV/DVD OPEN/CLOSE Q.VIEW INFO TV/DTV MUTE Press MENU. The main menu screen will appear.
  • Page 33: Other Function

    P.MODE 1. Press the GUIDE button to switch on GUIDE. 2. Press the VOL+/- button to select desired program. MENU 3. Press the GUIDE button again to switch off GUIDE and return to TV viewing. SLEEP CH.LIST FAV.LIST SIZE GUIDE...
  • Page 34: Other Functions

    MENU SLEEP SLEEP TIMER CH.LIST FAV.LIST SIZE GUIDE To set the TV to turn off after a preset amount of time, press SLEEP SETUP PAUSE/STEP SUBTITLE STOP button repeatedly to select the number of minutes. First the...
  • Page 35: Dvd Features

    DVD Features Basic Playback Preparations Preparations Press the DVD/TV button on the remote control or the TV to enter the DVD status. Basic playback Basic playback 1. Press OPEN/CLOSE to open the disc tray, place a disc in the disc tray.
  • Page 36 Features(Continued) Advanced Playback Advanced Playback Advanced Playback IMPORTANT NOTE: All described functions are for DVD discs. If you play other format discs, the operation and on screen display will be different. SUBTITLE CAPTION Press "SUBTITLE ", the screen will display "SUBTI- TLE 01/XX XXXXX", "01"...
  • Page 37: Special Playback Functions

    Special Playback Functions JPEG DISC PLAYBACK When a disc containing standard JPEG picture files is inserted into the player, a navigation menu will be displayed automatically. Use the UP and DOWN cursor buttons to select a file then press PLAY/ENTER. The slide show will commence. Press PREVIOUS or NEXT to move between pictures.
  • Page 38: Dvd System Setup

    16:9 You may select this if you have a widescreen (16:9) TV . Back bars may still appear above and below the picture even if using a widescreen TV. This is because some film directors prefer to use ultra widescreen aspect ratios e.g.
  • Page 39 SCREEN SAVER: If the screen saver is on, then there will be an animated picture of DVD on the screen whenever the DVD player is idle for more than 3 minutes . ..General Setup Page.. TV Display Angle Mark OSD Lang Captions Screen Saver Off ..General Setup Page..
  • Page 40 DVD System Setup(Continued) DVD System Setup Preference Page The Preference Page is only available when there is no disc in the player. These settings are applied consistently to all discs which are inserted and played. SETUP DEFAULT: (except password and parental lock status) for this DVD player back to the manufacturers PLAY/ENTER...
  • Page 41: Playable Discs

    Playable Discs The following discs can be played: You cannot play discs other than those listed above. You cannot play non-standardized discs, even if they may be labelled as above. The performance of CD-R or CD-RW disc depends on the way the disc was burned. In a few cases, their performance may not be consistant or may not even operate at all.
  • Page 42: Disc Protection And Dvd Characteristics

    Disc Protection and DVD Characteristics Compare DVD disc with other discs: Encode Digital/MPEG method Single- Double Single- side -side side Capacity single- single double- layer -layer layer 4.7G 8.5G 9.4G Playing Time minutes minutes minutes 12cm/8cm Disc diameter Horizontal More than 500 line resolution Picture Multiple kinds...
  • Page 43: Troubleshooting Guide

    2.The TV set must only be repaired by a qualified registered service person. Never attempt to remove the back cover as TV set has dangerous voltages inside that may cause a fatality or fire. 3. The cabinet may produce the occasional "snapping sound" This is normal and caused by the materials in the cabinet expanding with room temperature changes.
  • Page 44: Specifications

    Specifications The specifications offered you here are for reference only. With product improvement there may be some differences between the description and the final product. Colour system NTSC /ATSC Picture tube 14"colour picture tube (33.5 cm viewable) Sound output power 2X2W 10% THD Power requirements AC 110V 240V 50/60Hz DC 12V...
