Summary of Contents for Brildor MISTER-T2

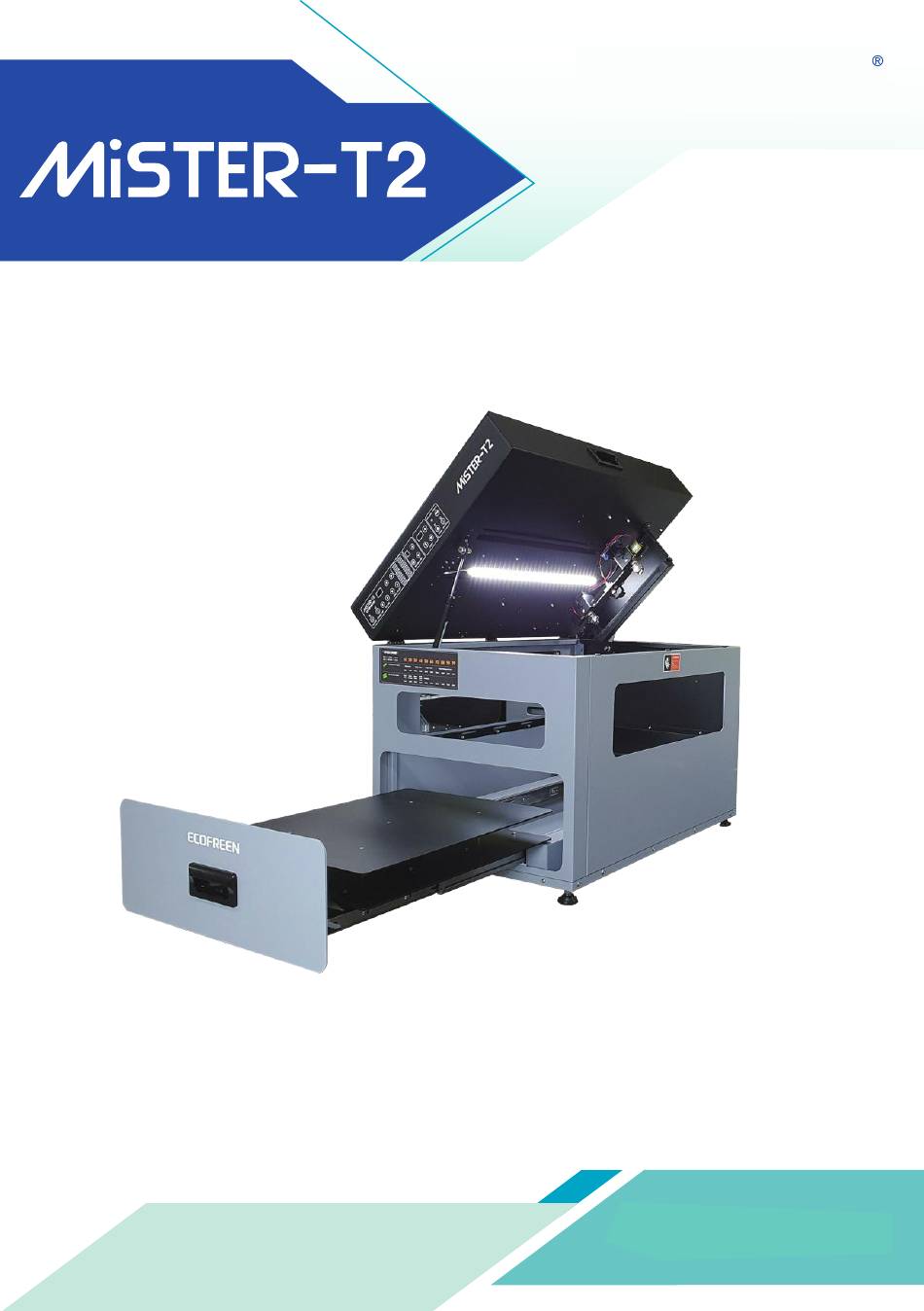

- Page 1 BRILDOR OPERATOR’S MANUAL Automatic Pretreat Spray Machine www.ecofreen.com brildor.com...
- Page 2 Use the Mister T2 only for its intended use. Mister-T2 has to be operated with a precoating liquid for fabrics for DTG printer. Cleaning MUST be done with distilled water only! Other liquids alcohol or solvent may damage pumps or other components of the machine.
-
Page 3: Table Of Contents
DTG Fixation Guide ........14 Volume Chart Maintenance (Important) ..... 15 Other Settings ......... 20 Angles of Nozzles ........22 Preset ......24 Cost of Pretreat Liquid ....25 Setting Mode for Other Setting Trouble Shooting ........26 Warranty Information ......27 brildor.com... -
Page 4: Machine Parts Diagram
Machine Parts Diagram <FRONT> Control Panel Two Nozzles LED Lamp Capping Station Volume Chart Platen (16” x 20”) <BACK> Main Power Switch Ventilation Fan Emergency Button Multi-Inlet Selector Valves Bottle Holder Air Exhaust Vent Drain Connector brildor.com... -
Page 5: Specifications
3 sec ~ 9 sec, by 10 to 99 speed Power Supply Free Voltage (100V~240V 50/60hz) Power Consumption Packing Size 670mm(W) x 935mm(L) x 840mm(H) Packing Weight 50Kgs Liquid Consumption With Minimum Speed : about 85ml With Maximum Speed : about 12ml brildor.com... -
Page 6: Installation
Installation Installation Gently open the top of the machine and find the accessory box inside of the machine and please check if all the components are in the box. Manual MACHINE LEVELING Please ensure the machine is properly placed and leveled. Otherwise waste liquid in the machine can leak. - Page 7 Installation Installation (Continued) CONNECT THE POWER CORD The power switch and the power connection is located at the back of the machine. CONNECT THE WASTE TANK and DRAIN TUBE The drain connector is located at the back of the machine. Connect the large tube (drain tube) to the connector on the bottom and then place the other end in an waste tank.
- Page 8 IMPORTANT The water bottle should be placed in the 4th valve as the picture above. Only one valve can be open at a time. Flush with distilled water after daily use. Inlet Filter must stay submerged at all times. brildor.com...
-
Page 9: Operating Instructions
(Please refer to the page 25 to program the time for the cycle.) (The main power switch on the back of the machine must be turned on for the automatic cleaning system.) brildor.com 15) PRESCAN BUTTON : Preview the spraying area by laser. -
Page 10: Operation
* Please refer to the volume chart on page 14. SELECT SPRAYING AREA : Change the area Spray area is divided into 10 sections and only sprays on the selected area. The area can be freely adjustable as below. brildor.com... -
Page 11: Switching The Pretreat Liquid
(7~10 secs). c.) Close the 4th valve (distilled water) and open the preferred valve. Press “CLEAN” button to flush out the water (7~10 secs). Once you see the tubes filled with pretreat solution, press “CLEAN” button again to stop spraying/flushing. brildor.com... -
Page 12: Pretreatment Guide
Start with the recommended amounts on page 14 and adjust accordingly. Some testing may be required for new styles and brands of shirts. It is recommended to keep a record of how much is required for each brand/type of shirt. brildor.com... -
Page 13: Dtg Fixation Guide
Dark Cotton Poly Blended (Hoodie) Quantity 10-20g 20-35g Volume Level on Volume Level Volume Level Volume Level Volume Level 10~30 10~20 Mister-T2 Spraying Direction Uni-Direction Bi-Direction Bi-Direction Bi-Direction on Mister-2 Time 35-45 seconds 60-70 seconds 90 seconds 90-120 seconds Temperature... -
Page 14: Volume Chart
* The volume of the pretreat liquid showed on the display is provided for general information purposes only. It does not represent the accurate volume of the liquid. ECOFREEN will have no responsibility for the accuracy of the data and the issue which may arise from using or relying on the information. brildor.com... -
Page 15: Maintenance (Important)
Maintenance Scan the QR CODE for the video ! DAILY MAINTENANCE Press “CLEAN” button to flush with water and clean the nozzle everyday at the end of work. Never leave the filter exposed to air to prevent filter from drying and clogging. Always put the filter into the pretreat or cleaning water container. - Page 16 Maintenance DAILY MAINTENANCE : Cleaning at the End of Work ( Step 1 + Step 2 ) Step 1. Collecting Remaining Pretreat Liquid 1.) Take out the filter from the bottle of pretreat liquid. (Make sure to turn the valve on, otherwise filter will be unable to suck the liquid) Pretreat Liquid...
- Page 17 Distilled Water 9.) Press “CLEAN” button to clean the machine with distilled water and let it spray until all the tube inside of the machine will be cleaned by distilled water (about 30 seconds). brildor.com...
- Page 18 To clean the nozzle and its parts, please fill distilled water and run it for 6~7 mins. Storage NEVER LEAVE THE NOZZLES EXPOSED TO AIR. Remaining precoat can be dried out and stick to nozzle. This will cause inconsistent spraying or clogging of the nozzle. brildor.com...
- Page 19 If your machine is not spraying liquid, check to see if the filter is clogged. Simply removed the filter from the end of the inlet tube and start spraying. If spraying occurs after the filter is removed, then we can conclude filter is clogged and will need to be replaced. brildor.com...
-
Page 20: Other Settings
Other Settings How to Adjust Angles of Nozzles 1) Open the top lid and check the current angles. The graduations are marked as the picture below. The Left Nozzle The Right Nozzle Center of the gradations Center of the gradations ** Initial setting of the gradations** 2) Adjust the Angles of right and left nozzles. - Page 21 Other Settings How to Adjust Angles of Nozzles (continued) The Left Nozzle The Right Nozzle < Initial setting of the angle (center) of both nozzles > The Left Nozzle The Right Nozzle < After adjusting the angles > brildor.com...
-
Page 22: Preset
Select uni-direction or bi-direction. It will spray pretreat liquid with bi-direction when the light above is on. Otherwise, it sprays with uni-direction only. Select the volume of liquid (10~99) * Please refer to the volume chart on page 14. Freely select the spraying area. Described in the next page... brildor.com... - Page 23 Other Settings Full, Middle, Side Pocket Area Full Area Middle Area Right Side Right Pocket Step 1. Select start area and press button to save. Step 2. Select end area and press button to save. Step 3. Press button twice because there is no need to set “the section 2”...
-
Page 24: Cost Of Pretreat Liquid
* The cost of the pretreat liquid showed on the display is provided for general information purposes only. It does not represent the accurate cost of the liquid. ECOFREEN will have no responsibility for the accuracy of the data and the issue which may arise from using or relying on the information. brildor.com... -
Page 25: Setting Mode For Other Setting
1 sec 2 sec 3 sec Auto Nozzle Cleaning EXIT THE SETTING MODE Simultaneously press and hold button in the COST section on the control panel until both the numbers on the control panel (red boxes above) stop blinking. brildor.com... -
Page 26: Trouble Shooting
- Fan is defective 2. Replace the fan Waste liquid not draining - Drain Connector is blocked 1. Check the drain connector - Drain tubes are bent 2. Drain tubes are to be positioned in lower place. brildor.com... -
Page 27: Warranty Information
Other liquids alcohol or solvent may damage pumps or other components of the machine. Damages caused by unauthorized liquids are excluded from the wattanty. Mister-T2 comes with 12 months warranty. This warranty includes the whole construction of the machine, mechanical parts, electronis, drawer with rails, casing, pumps, electronic valve and pipes.
