Summary of Contents for Norton Clipper CFP14W

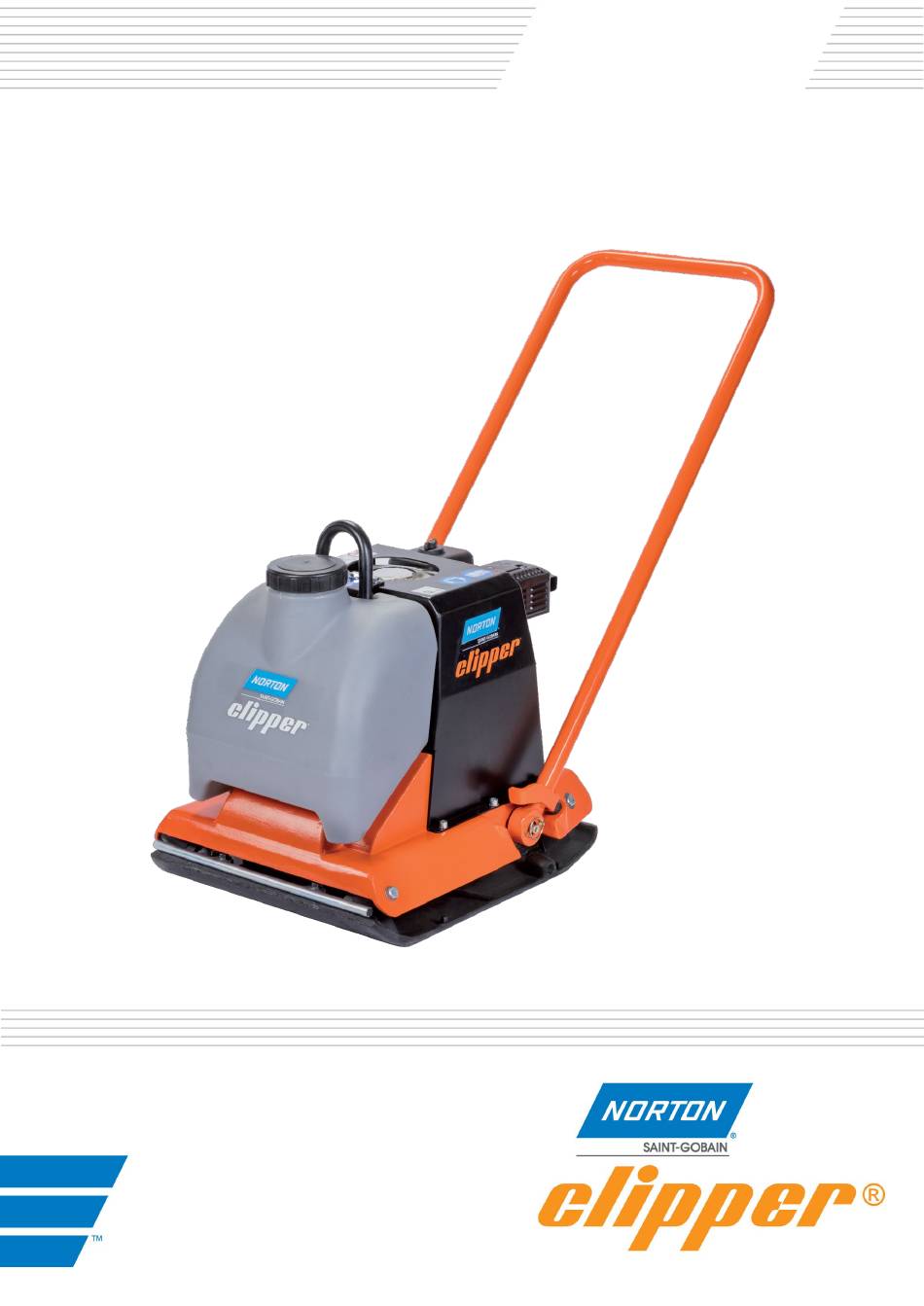

- Page 1 CFP14W COMPACTOR OPERATING INSTRUCTIONS Translation of the original Instructions...
-
Page 2: Declaration Of Conformity
CFP14 W _MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE CFP14 W Declares that this product: Norton Clipper Compactors 70184608009 Code: HATZ 1B20 70184608010 Code: HONDA GX160 Is in conformity with the following Directives: "MACHINES"... - Page 3 VERS. 01.09.2019 CFP14W _MAN_EN Norton Clipper CFP14W OPERATING INSTRUCTIONS TABLE OF CONTENTS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 MACHINE DESCRIPTION 2.1 Short description 2.2 Purpose of use 2.3 Layout 2.4 Technical Data...
-
Page 4: Basic Safety Instructions
CFP14 W _MAN_EN 1-BASIC SAFETY INSTRUCTIONS The Norton Clipper CFP14W is exclusively designed for compaction mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user. -
Page 5: Safety Instructions For Particular Operating Phases
VERS. 01.09.2019 CFP14W _MAN_EN 1.2 Machine plate Important data can be found on the following plate located on the machine: Machine code Machine model Serial number Year of production Machine Weight 1.3 Safety instructions for particular operating phases Before starting the work •... -
Page 6: Machine Description
VERS. 01.09.2019 CFP14 W _MAN_EN • Always wear appropriate protective clothes. When the work area is near slopes, the compactor could turn over. • When you use compactor in reverse and in a narrow place, the operator must be sideways •... - Page 7 VERS. 01.09.2019 CFP14W _MAN_EN 2.1 Short description The compactor CPF14W is suitable for repairing asphalted surfaces, for small compacting jobs and for preparing green areas As with all other NORTON products, the operator will immediately appreciate the attention given to detail and quality of materials used in construction.
- Page 8 VERS. 01.09.2019 CFP14 W _MAN_EN Handle (1) Jig welded steel construction is connected by 4 shockmount on the frame of the machine to reduce the vibrations reach the operator Belt drive and belt cover (2) A centrifugal clutch inside the engine pulley drives the gear shaft through V-Belts. It allows to gradually engaging the vibration of the machine.
-
Page 9: Technical Data
VERS. 01.09.2019 CFP14W _MAN_EN 2.4 Technical DATA 2.4 VIBRATION MEASUREMENTS The engine supporting and the compacting plates are connected by 4 shockmount, which are mounted to avoid that vibrations reach the operator. Products are tested for hand/arm vibration level in accordance with annex D prEN500-4:2001 The hand/harm vibration level is 8.9 m/s... -
Page 10: Assembly And Commissioning
VERS. 01.09.2019 CFP14 W _MAN_EN 3-ASSEMBLY AND COMMISSIONING 3.1 Starting the machine with Honda GX 160 engine Turn the fuel valve to the ON position. Fully press Move the choke lever to the CLOSED position. the dead-man handle against the main handle. NOTE: do not use the choke if the engine is warm or the air temperature is high. -
Page 11: Transport And Storing
VERS. 01.09.2019 CFP14W _MAN_EN Be therefore very careful to avoid injuries. 3.2 Starting the machine with Hatz 1B20 engine 4-Transport and storing 4.1 Securing for transport Conform yourself to work regulations, in order to transport the machine safely. To help you transport... -
Page 12: Long Period Of Inactivity
VERS. 01.09.2019 CFP14 W _MAN_EN of the machine. 4.2 Transport procedure Conform yourself to work regulations, in order to transport the machine safely. To help you transport the machine, you can remove the transport tube from under the handle and located in the front hole of the machine. -
Page 13: Troubles-Shooting Guide
VERS. 01.09.2019 CFP14W _MAN_EN 7-FAULT : CAUSES AND CURES 7.1 Fault –finding procedures Should any fault occur during the use of the machine, turn it off. Any works dealing with the engine of the machine can only be carried out by a qualified technician. - Page 14 VERS. 01.09.2019 CFP14 W _MAN_EN Tension the transmission belt and, if The transmission belt has loosened up necessary, replace it The engine rpm are low but the exciter Repair the centrifugal clutch and, if Centrifugal clutch malfunction does not stop necessary, replace it Top up the oil level.
- Page 15 For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need. When ordering spare parts, please mention: The serial number.
- Page 16 VERS. 01.09.2019 CFP14 W _MAN_EN Guarantee can be claimed and technical support obtained from your local distributor where machines, spare parts and consumables can be ordered as well: SAINT-GOBAIN ABRASIVES SAINT-GOBAIN ABRASIVI S.P.A SAINT-GOBAIN GLASS INDUSTRIEWEG 21 VIA PER CESANO BOSCONE 4 BUSINESS UNIT ABRASIVI 9420 ERPE-MERE I-20094 CORSICO MILANO...
- Page 17 VERS. 01.09.2019 CFP14W _MAN_EN FAX: +36 1 371 22 55 FAX: +351 229 437 949 STAFFORD ST16 1EA UNITED KINGDOM TEL: +44 1785 222 000 FAX: +44 1785 213 487...
