IMPORTANT TIPS
FOR INSTALLATION

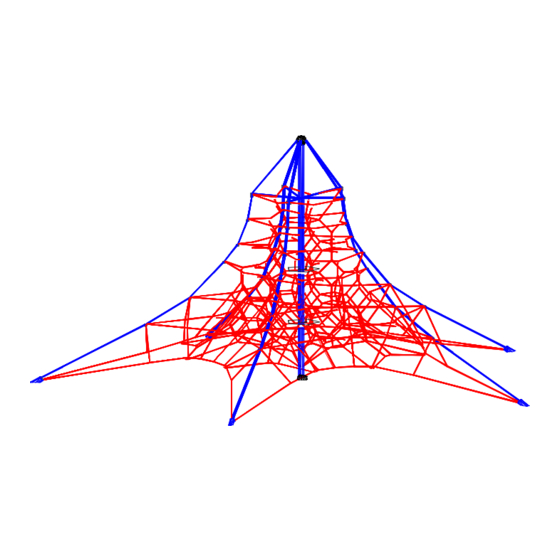

PENTAGODE – S
ITEM No.: 91.200.010
PENTAGODE - M
ITEM No.: 91.200.020
PENTAGODE - L
ITEM No.: 91.200.030
A. Construct the foundations as per the foundation plan and installation instructions.
Important: The surface of each foundation must be level and smooth!
B. Align the foundation parts according to the foundation plan
All default dimensions (including depths!) must be strictly adhered to.
C. Install the chemical anchors according to instructions provided.
(Allow time for complete curing.)
Mounting Instructions
Pentgode
DIN EN 1176 Stand 2008
Page 1 of 3
Advertisement
Table of Contents
Summary of Contents for Berliner Seilfabrik PENTAGODE S
- Page 1 IMPORTANT TIPS FOR INSTALLATION PENTAGODE – S ITEM No.: 91.200.010 PENTAGODE - M ITEM No.: 91.200.020 PENTAGODE - L ITEM No.: 91.200.030 A. Construct the foundations as per the foundation plan and installation instructions. Important: The surface of each foundation must be level and smooth! B.
- Page 2 D. Beginning from the mast top, thread the net over the mast. The spreader bars should point towards the mast top. E. Attach the pre-assembled tensioning device to the mast top. Important: Do not remove the plastic cover from the tensioning meachanism. Insert the plastic cover into the mast too.
- Page 3 Attach five double-tensioning cables to the outer foundations. The attachments are preassembled to the net. The bolts (M20 x 120) must be pulled tight. J. Attach five shackles to the mast.(Use screwlock adhesive) K. Tension the net until the mark on the rope is situated at the upper point of the cable re-router.
