Anco 321221 User Manual

Art.no 321221
GB Weekly timer switch
HU Digitális heti időkapcsoló
SI Elektronska tedenska stikalna ura
HR Digitalni vremenski programator
RO Ceasornic electronic săptămânal de conectat
GB User manual
1. TECHNICAL DATA
• For installation on top hat rail
• 8 Possible programs per day or week, through block formation (e.g. MO-FR, SA-SO etc.) up to 64 switching
operations possible
• Minimal switching interval: 1 minute
• ON-auto-OFF manual switch
• Contact rating: 3500W max., 16A, 460VA / 2A inductive
• 220-240V∼, 50Hz • Backup system for power failure (Battery type NiMH, 1.2 V; 40mAh)
• Floating changeover contact
2. KEY
ON = ON
OFF = OFF
AUTO = Automatic
MO = Monday
TU = Tuesday
WE = Wednesday
TH = Thursday
FR = Friday
SA = Saturday
3. INSTALLATION
1. Installation may only be carried out by a skilled person and in accordance with the VDE regulations. Work only
when there is no electricity present. To ensure this, it is essential to switch off the circuit fuse. Check whether the
connection lead is de-energised! 2. Install the timer on the DIN standard rail (top-hat rail) in the circuit-breaker

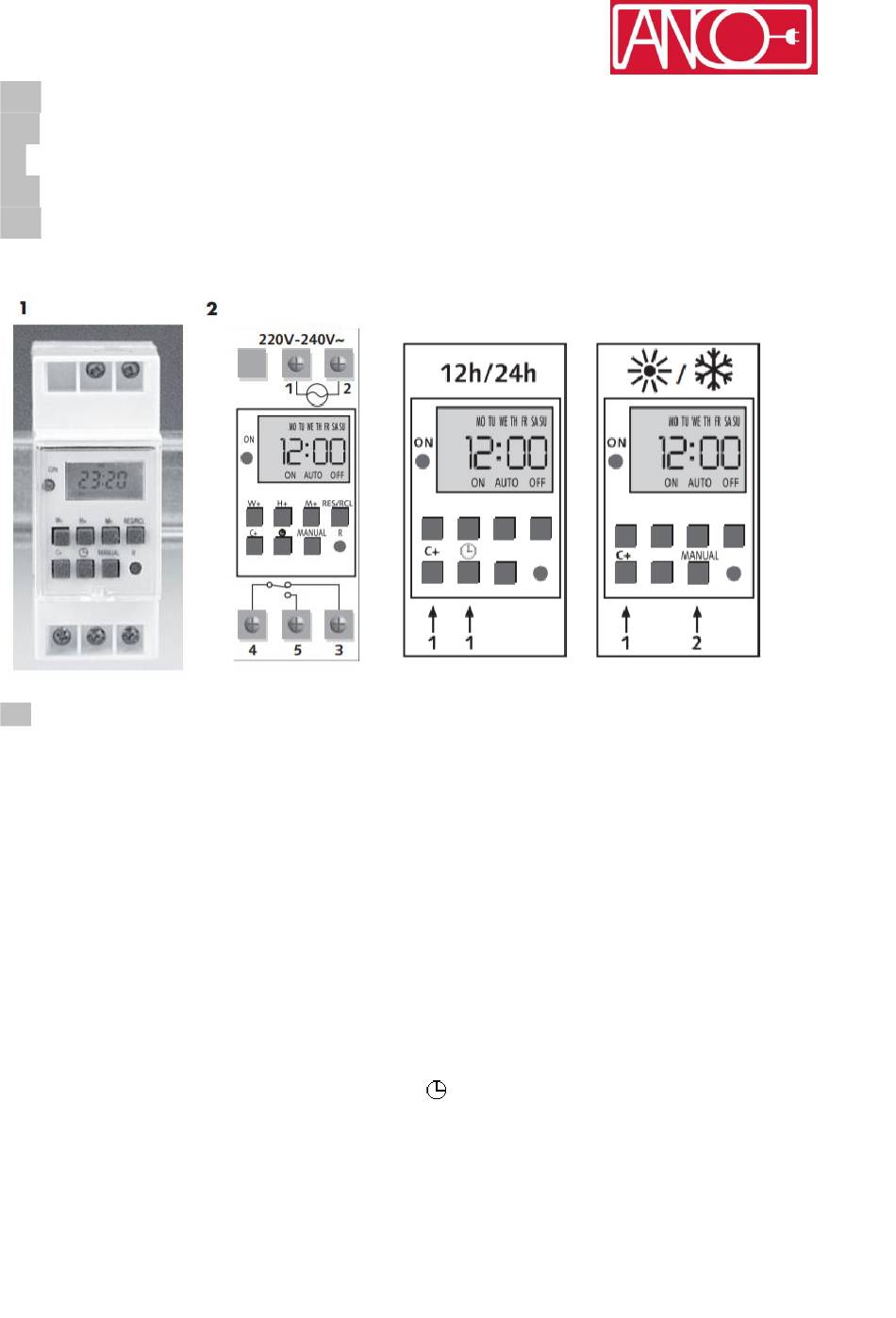

board. 3. For continuous voltage, now connect Phase and the neutral conductor to terminal 1+2 (Figure 2). The
switching contact is a potential-free changeover contact: Connect phase L to terminal 4. Terminal 3 is a NC
contact (closed when switched off), terminal 5 is a NO contact (closed when switched on), see Figure 2. 4. You
can now apply the voltage and begin programming.
SU = Sunday
RES/RCL = Deletes individual programs
R = Reset
C+ = Time setting
H+ = Hour setting
M+ = Minute setting
W+ = Weekday setting
= Program
MANUAL = Manual switch
