Camshelving
Instructions
available in
multiple
languages

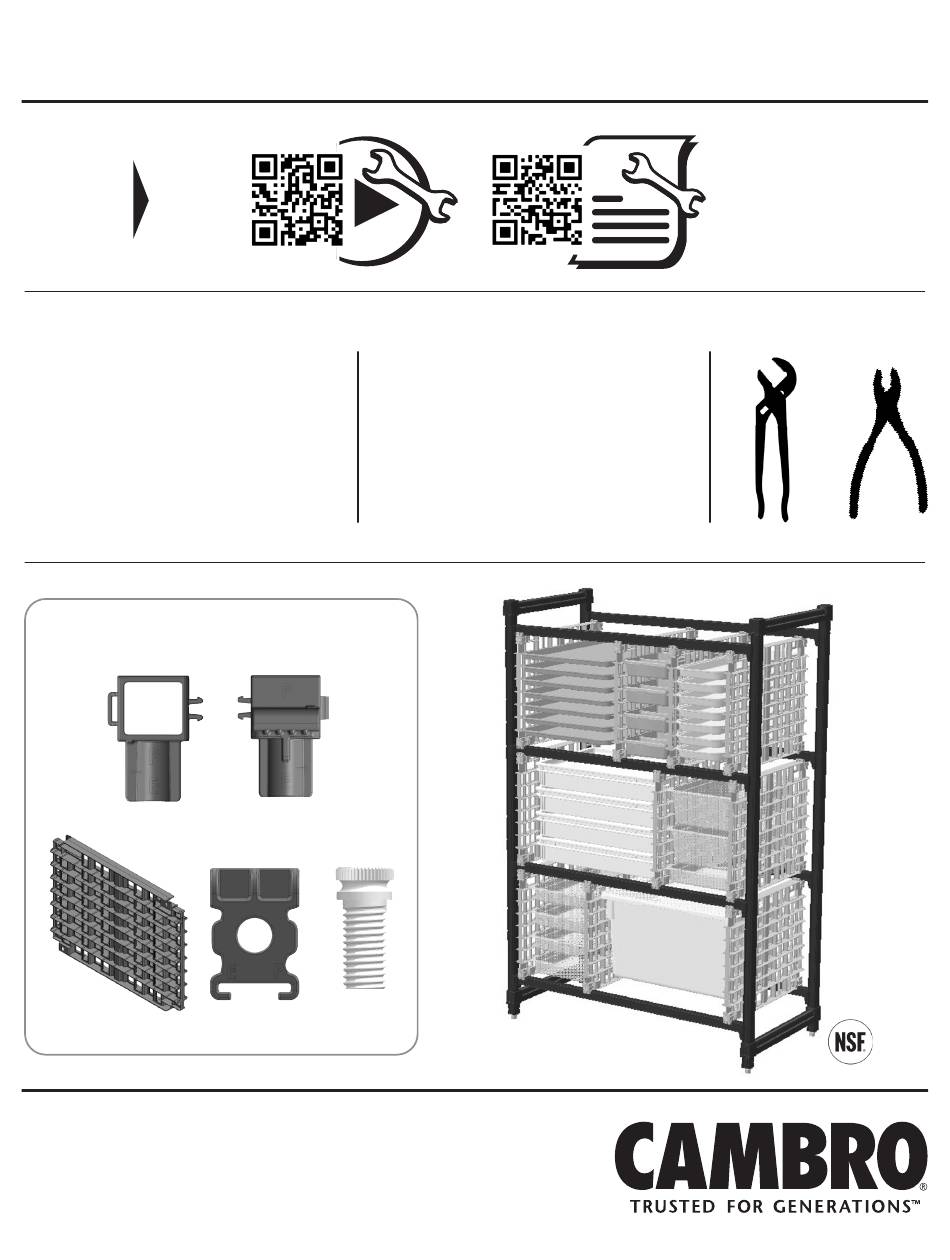

KIT PARTS
Starter Kit:
2 Rail Panels (C)
16 Rail Panel Brackets – 8 (A), 8 (B)
8 Traverse Brackets (D)
8 Plastic Thumb Screws (E)
A
C
®
VIDEO
Add-On Kit:
1 Rail Panel (C)
8 Rail Panel Brackets – 4 (A), 4 (B)
4 Traverse Brackets (D)
4 Plastic Thumbscrews (E)
B
D
E

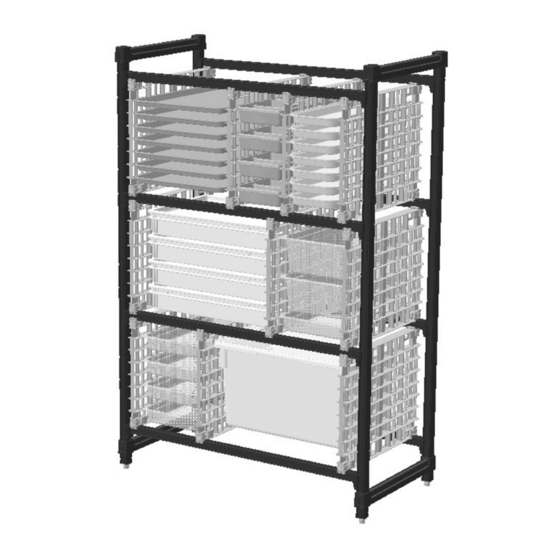

Universal Storage Rack
Assembly & Installation Guide
GUIDE
TOOLS NEEDED
OR
COMPONENT
www.cambro.com
Advertisement
Table of Contents
Related Manuals for Cambro Camshelving Universal Storage Rack
Summary of Contents for Cambro Camshelving Universal Storage Rack
- Page 1 1 Rail Panel (C) 16 Rail Panel Brackets – 8 (A), 8 (B) 8 Rail Panel Brackets – 4 (A), 4 (B) 8 Traverse Brackets (D) 4 Traverse Brackets (D) 8 Plastic Thumb Screws (E) 4 Plastic Thumbscrews (E) COMPONENT www.cambro.com...
- Page 2 INSTALLATION REQUIREMENTS • 4 open dovetails between shelves • NO shelf plates on traverses • Open space between back of unit and wall: 3” - 5” (7,6 - 12,7 cm) Step 1 Assemble 1 Rail Panel Bracket set. (A and B) Step 2 Snap Rail Panel Bracket set into Rail Panel (C) Corner.
- Page 3 Step 4 Place Rail Panel, pointing up, between Traverses. Brackets must be inside the Traverses. Step 5 Slide Rail Panel to one side/end. Step 6 1. Slide each Traverse Bracket (D) onto Rail Panel and Traverse. 2. Install Thumbscrew. 3. Adjust and straighten Rail Panel.
- Page 4 TEL: (49) 7022 90 100 0 TEL: 1800 509 046 Toll Free FAX: 1(714) 230-4375 FAX: (49) 7022 90 100 19 传真: +86-0752-28850380 FAX: 01 633 55 76 cambrochina@cambro.com international@cambro.com cambroeurope@cambro.com cambroireland@cambro.com www.cambro.com D052201 © Copyright Cambro Manufacturing Company. Printed in the U.S.A. 06/22...
