- Page 1 KARADOWNK2 rigging manual (EN)
- Page 2 Document reference: KARADOWNK2 rigging manual (EN) version 1.1 Distribution date: June 25, 2018 © 2018 L-Acoustics. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the express written consent of the publisher.
-
Page 3: Table Of Contents
Contents Safety................................4 Instructions..............................4 Symbols..............................5 Welcome................................5 Mechanical safety...............................6 Flown congurations..........................6 Assessing mechanical safety........................6 Rigging system description..........................7 Rigging a Kara downll array under a K2 array....................8 KARADOWNK2 specications........................... 12... -
Page 4: Safety
Respect the Working Load Limit (WLL) of third party equipment. L-Acoustics is not responsible for any rigging equipment and accessories provided by third party manufacturers. Verify that the Working Load Limit (WLL) of the suspension points, chain hoists and all additional hardware rigging accessories is respected. -
Page 5: Symbols
This document contains essential information on rigging the system properly. As part of a continuous evolution of techniques and standards, L-Acoustics reserves the right to change the specications of its products and the content of its document without prior notice. Please check www.l-acoustics.com... -
Page 6: Mechanical Safety
Mechanical safety Mechanical safety Flown congurations The KARADOWNK2 rigging system complies with 2006/42/EC: Machinery Directive. It has been designed following the guidelines of BGV-C1. 2006/42/EC: Machinery Directive species a safety factor of 4 against the rupture. The own deployments described in this manual achieve a safety factor of 4. -
Page 7: Rigging System Description

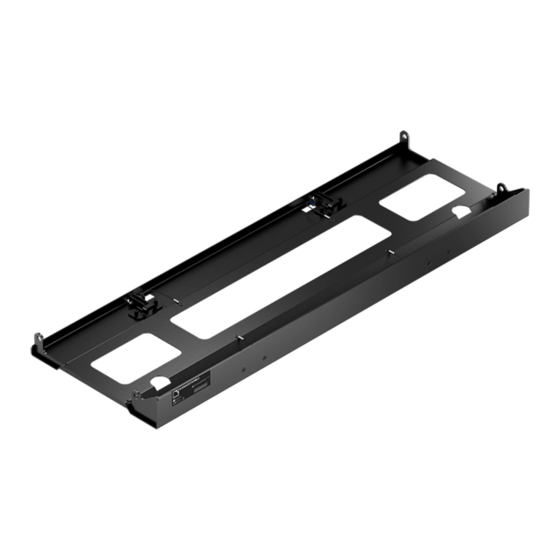

Rigging system description KARADOWNK2 KARADOWNK2 is a rigging interface for Kara under a K2 array. The four tabs on the top are compatible with the K2 rigging system. The four slits tted with ball-locking pins accommodate the Kara rigging arms. -

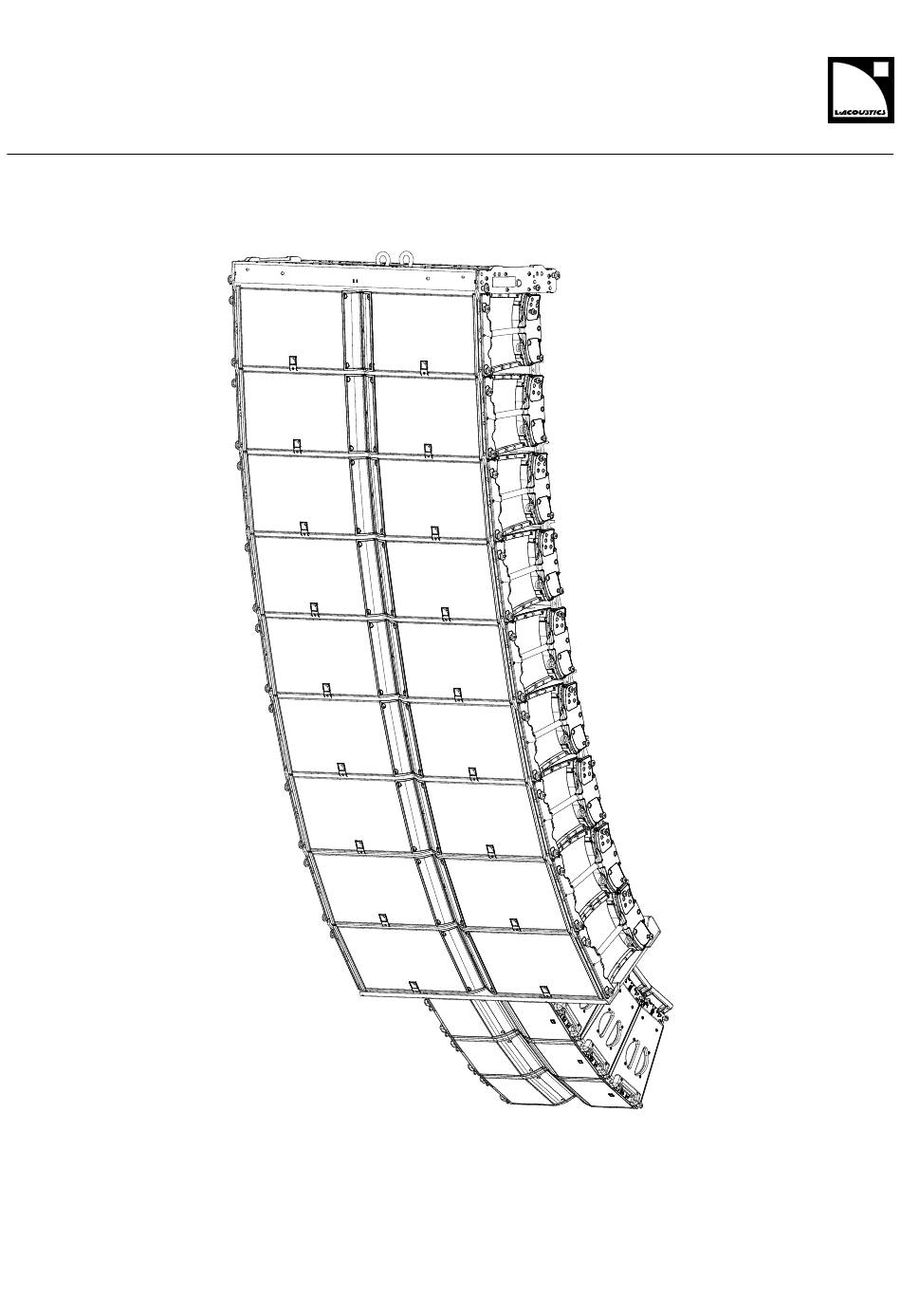

Page 8: Rigging A Kara DownLl Array Under A K2 Array
Make sure the latches on the bottom K2 are in storage position. Procedure 1. Take out the four rigging arms on the top Kara enclosure. a) Lock the front rigging arms in linking position. KARADOWNK2 rigging manual (EN) version 1.1... - Page 9 Rigging a Kara downll array under a K2 array b) Slide up the rear rigging arms and select the same inter-element angle, from 0° to 10°. 2. Secure a KARADOWNK2 on top of the Kara array. Position the higher ledge at the rear.
- Page 10 Keep ngers away from the contact area between the ledge and the cabinet. Risk of cable damage. Disconnect any cable from the K2 bottom connector. a) Rotate the top Kara upwards and secure the rear KARADOWNK2 tabs to the K2 rigging. KARADOWNK2 rigging manual (EN) version 1.1...
- Page 11 Rigging a Kara downll array under a K2 array b) Secure the front KARADOWNK2 tabs to the K2 rigging. Slightly lower the K2 array if necessary. c) Reconnect the top Kara at the rear to the assembly. 6. Raise the array.
-
Page 12: Karadownk2 SpeciCations
17 kg / 37 lb Material high grade steel with anti-corrosion coating KARADOWNK2 dimensions 68 mm / 2.7 in 1311 mm / 51.6 in 90 mm / 3.5 in 1330 mm / 52.4 in KARADOWNK2 rigging manual (EN) version 1.1... - Page 13 L-Acoustics, an L-Group Company 13 rue Levacher Cintrat - 91460 Marcoussis - France +33 1 69 63 69 63 - info@l-acoustics.com www.l-acoustics.com L-Acoustics GmbH L-Acoustics Ltd. L-Acoustics Inc. Steiermärker Str. 3-5 PO. Box Adler Shine - Aston House 2645 Townsgate Road, Suite 600...
