Side shelf

Advertisement

Available languages

Available languages

PARTS LIST

Item
Part
No.
No.
Description
1
RS8230SSRM1
Shelf Mat

SPECIFICATIONS

Total Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 LBS each
Total Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.25 in
Total Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14.5 in
Total Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.25 in
Loading cart beyond rated capacity may cause structural
PLEASE NOTE:
damage to the cart as well as personal and /or property damage. Please
educate your customers to the dangers of overloading. Do not attempt to
push cart with items on the top lid.

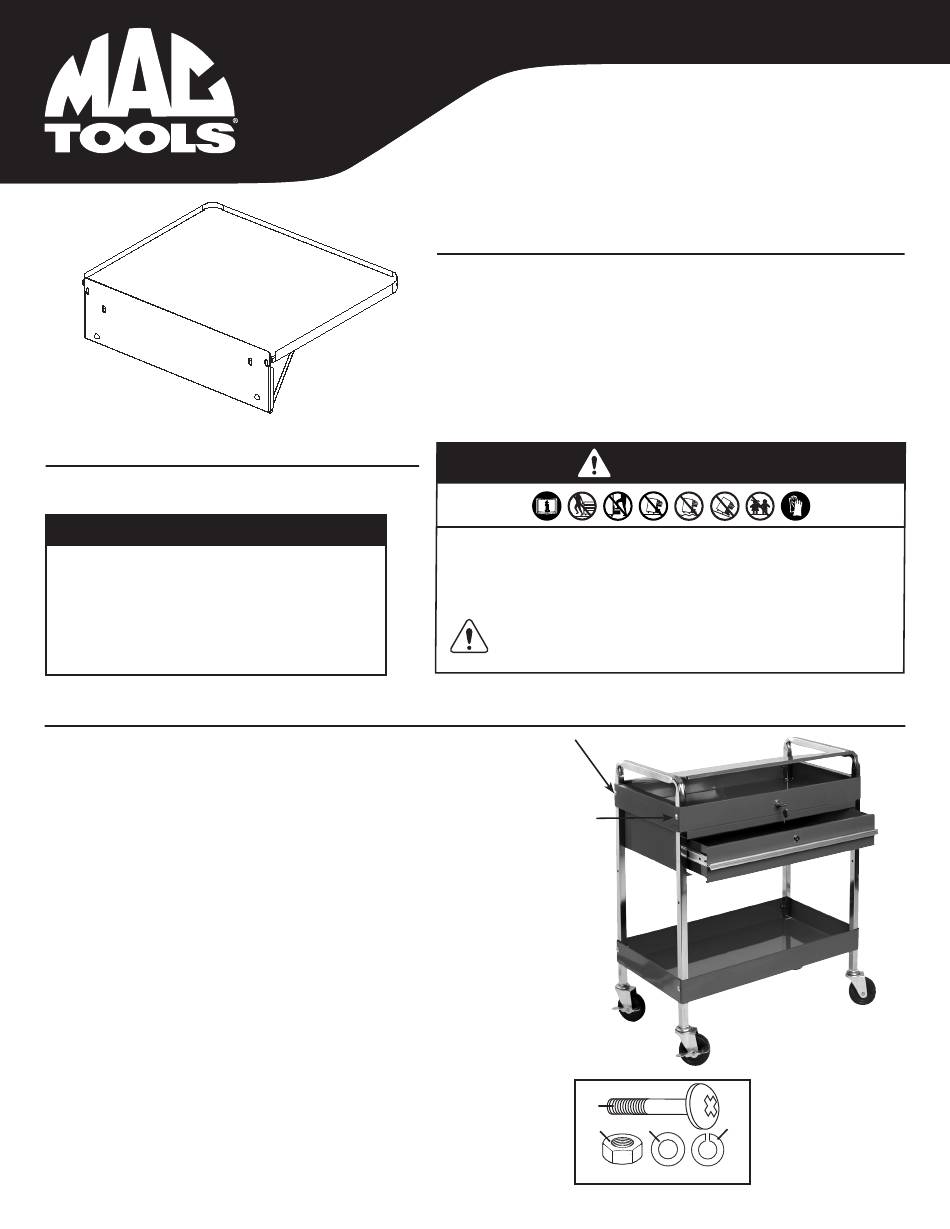

ASSEMBLY INSTRUCTIONS

Step 1
Tool Needed: Phillips® #3 Screwdriver & 10mm Combo Wrench
This re-uses your carts hardware. It does not come with an additional
RSSCPHK bolt kit.
Step 2
Tool Needed: Phillips® #3 Screwdriver & 10mm Combo Wrench
Place a washer (#5) onto the round head bolt (#3) and insert into the outer side of the
side shelf (#24) and into the front aligned bolt hole of the top shelf (#1) and leg (#2).
Place a washer (#5), split washer (#4) and then hex nut (#6) onto the bolt assembly
and tighten but do not torque.
Step 3
Tool Needed: Phillips® #3 Screwdriver & 10mm Combo Wrench
Remove the rear top bolt assembly (#3, #4, #5, #6).
Step 4
Tool Needed: Phillips® #3 Screwdriver & 10mm Combo Wrench
Place a washer (#5) onto the round head bolt (#3) and insert into the outer side of the
side shelf (#24) and into the rear aligned bolt hole of the top shelf (#1) and leg (#2).
Place a washer (#5), split washer (#4) and then hex nut (#6) onto the bolt assembly
and tighten.
Step 5
Tool Needed: Phillips® #3 Screwdriver & 10mm Combo Wrench
Torque front and rear top bolt assemblies to 5ft-lbs.
MBUCSS155/ MBUCSS155-BK/ MBUCSS155-BL SIDE SHELF

OWNER'S MANUAL

Read and understand all instructions. Failure to follow all instructions listed below,
may result in electric shock, fire, explosion and/or serious personal injury. It is the
responsibility of the owner to make sure all personnel read this manual prior to using
the tool. It is also the responsibility of the tool owner to keep this manual intact and
in a convenient location for all to see and read. If the manual or product labels are
lost or not legible, contact Mac Tools
in English, the product and safety instructions shall be read and discussed with the
operator in the operator's native language by the purchaser/owner or his designee,
making sure that the operator comprehends its contents.
No.
Req'd
1
• Read, study, understand & follow all instructions before using. • Do not load
shelf beyond rated capacity (50 LBS) • Lock lid and drawers before moving.
• Apply brake on locking casters anytime cart is in place. • Units can tip or fall causing
damage or personal injury. • Keep children away from unit. • Wear gloves when lifting edges.
• Failure to heed these warnings may result in personal injury and/or property damage.
WARNING: This product can expose you to chemicals including nickel, which
is known to the State of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65Warnings.ca.gov.
1
MBUCSS155
MBUCSS155-BK
MBUCSS155-BL
®
for replacements. If the operator is not fluent
WARNING
3
(8)
6
5
4
RSSCPHK Bolt kit
(Incl. 8 each of #3, #5, #6
and 16 each of #4)
(8)
(8)
(16)
SIDE SHELF
07/16/2020
