Summary of Contents for ATOMRC Mobula 650
- Page 1 User Manual Mobula 魔⻤⻥...

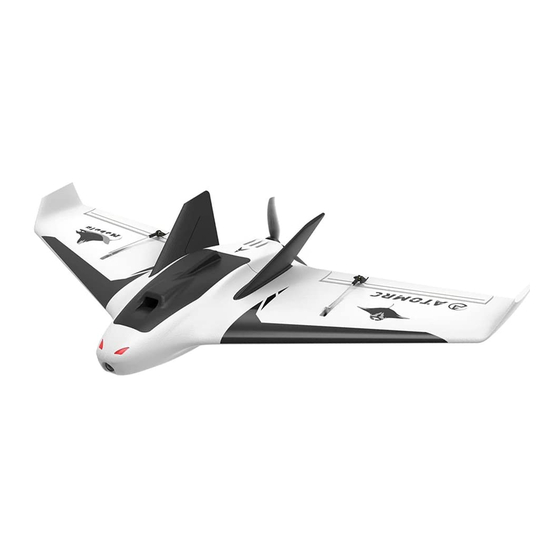

- Page 2 Introduction/产品简介 The Mobula 650 is compact design FPV delta wing, designed for FPV, the 650mm wingspan and make the wing very swift for low attitude FPV, the EPP material make the wing durable when crashing. With large fuselage, user can easily install the electronics.
- Page 3 KIT Contents/清单 A：Upper Fuselage B：Bottom Fuselage C：Wing 机身下盖 机翼 机身上盖 D：V Tail E：Hatch F：GPS Hatch V尾 舱盖 GPS舱盖 G：Blocker for V Tail H：Camera Hatch V尾堵块 摄像头盖...
- Page 4 Installation/安装指南 Glue the upper and lower fuselage, then glue the side and bottom plate. 粘接上下机身，然后粘接机仓内部侧板及底板 Glue the upper plate in the fuselage, then glue the ESC and Motor mount plate. 用502胶水粘接机舱内部上板，然后粘接电机和电调安装木板 Install the Motor and ESC. 安装电机电调 Glue the V tail. 粘接V尾...
- Page 5 Glue the control horn, then glue the servo, install the push rod. 粘接舵角，然后粘接舵机，安装拉杆 Glue wing , then glue the release hock and magnet on the fuselage cover. 粘接机翼，然后粘接舱盖磁铁和舱盖释放钩 Install the camera, then glue the nose. 安装摄像头，然后粘接机头 Install the Propeller, battery and receiver. 安装螺旋桨，电池和接收机...
- Page 6 Tx500 VTX Uermanual/图传说明书 Band Channel Band A 5865 5845 5825 5805 5785 5765 5745 5725 Band B 5733 5752 5771 5790 5809 5828 5847 5866 Band E 5705 5685 5665 5645 5885 5905 5925 5945 Airwave/FS 5740 5760 5780 5800 5820 5840 5860...
- Page 7 VTX Wiring/图传接线图 Cam Video Cam GND 5V OUT VCC/2-6S Tips/小贴士 This product is not toy, adult supervision is required for those under 14 years old! 此产品并非玩具，14岁一下用户请在 成年人指导下飞行。 The CG is very important for mobula CG is marked on the bottom of wing. Check the CG carefully before flight.
- Page 8 Please download the latest user manual at ⽂件若有更新，恕不另⾏通知, 请于以下⽹站下载最新版本 www.atomrc.com/pages/download...
