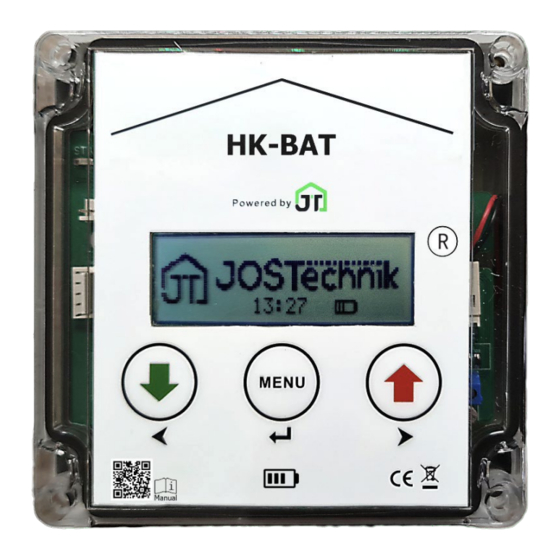

Original operating instructions
HK - BAT
chicken coop door opener
Battery operated
•
Serial number:
•
Year of construction:
•
Software version:
Original instruction manual and description
Solo - unit
Assembly instructions
automatic chicken coop door opener HK-BAT
11/2021
2022
V5.5.100
Set with flap
Operating instructions
01/2022
Frame unit
Troubleshooting
Page 1 of 18
Advertisement
Table of Contents
Summary of Contents for JOSTechnik HK-BAT
- Page 1 Original operating instructions automatic chicken coop door opener HK-BAT 01/2022 HK - BAT chicken coop door opener Battery operated • Serial number: 11/2021 • Year of construction: 2022 • Software version: V5.5.100 Original instruction manual and description Frame unit Set with flap...
-
Page 2: Attachment Points
HK-BAT Original operating instructions 01/2022 Components for commissioning and adjustments battery unit buffer battery battery - plug button restart button display terminal strip button cable gland ON - OFF – button button menu ... -
Page 3: Power Supply
HK-BAT Original operating instructions 01/2022 power supply Operating voltage 6V 4xAA batteries. • With inserted batteries in mains or solar operation, these serve as a backup. S hould the power supply used fail, this original JOS Technik flap actuator switches over to battery operation ! If the batteries are too weak, the motor for opening the flaps will no longer be started. - Page 4 HK-BAT Original operating instructions 01/2022 operation and displays 1. Display module - Meaning of symbols in the display Bait light allowed but inactive Light sensor bright detected Attract light active Light sensor dark detected Current battery level...
-
Page 5: Installation And Commissioning
HK-BAT Original operating instructions 01/2022 operation of the buttons Left button Hold down for 3 seconds to close the door • Move left in the menu or decrease the value, previous menu item •... - Page 6 Then the text “Have you read the instructions?” and the reference to the Internet address “<www.anleitung- jt.de>” appear . There you can view all instructions for the devices from JOSTechnik. The QR code on the device also takes you to the homepage for our operating instructions.
- Page 7 HK-BAT Original operating instructions 01/2022 The route has now been set. The device knows the top and bottom point. If you make changes to the positions of the flap or flap actuator on solo devices, the travel path must be determined again.
-
Page 8: Light Sensor
HK-BAT Original operating instructions 01/2022 date Menu item is called up The date format is displayed for 5 seconds DD/MM/YYYY • Leap year is taken into account • Press the middle button, the cursor flashes on the day •... - Page 9 HK-BAT Original operating instructions 01/2022 Operating mode / mode Different operating modes: Light and (&) time Both values must be reached • Light or (o) Time One of the two values must be reached •...
- Page 10 HK-BAT Original operating instructions 01/2022 extras luring light Can only be used with a 230V / 6V DC power pack or 6V solar module! Otherwise this error message appears. Function: Set light value + 15% and between 3 p.m. and 11 p.m •...
- Page 11 HK-BAT Original operating instructions 01/2022 Connection of optional modules / sensors module / sensor connection to cable color power adapter Terminal 6V on + , black on - Solar set Terminal 6V on + , black on - External button clamp ↓...
-
Page 12: Troubleshooting And Service
HK-BAT Original operating instructions 01/2022 Troubleshooting and Service Something isn't working. I have followed the instructions. What now? Please check two things first. 1. In the case of a set with a flap or frame, make sure that all transport locks, mostly stickers, have been removed before you use the set for the first time. -
Page 13: Weee Directive 2002/96/Ec
HK-BAT Original operating instructions 01/2022 disposal Sales packaging is packaging that is used by the end consumer (§ 3 Para. 1 No. 2 Packaging Ordinance). Manufacturers or distributors of the products are obliged either to take back the packaging waste in the shop or in the immediate vicinity free of charge (§... - Page 14 4. According to §17 ElektroG, JOSTechnik is not obliged to take back old devices. For reference to the text of the law: Distributors according to §...
-
Page 15: Ec Declaration Of Conformity
HK-BAT Original operating instructions 01/2022 EC Declaration of Conformity We hereby declare that the design and construction of the devices listed below, as well as the version we marketed, comply with the basic health and safety requirements of the EC Directive 2006/42/EC . This declaration loses its validity if the machine is modified without our agreement. - Page 16 HK-BAT Original operating instructions 01/2022 Annex 1 Image: battery connection Bild: Ein- und Ausschalter Image: Mounting Solo - Device Image: Connections Page 16 of 18...
- Page 17 HK-BAT Original operating instructions 01/2022 Annex 2 Menu - graphical overview You navigate through the menu according to this principle. The middle button confirms the top line and opens the menu item. • Right button confirms line 2 and switches to this menu item.
- Page 18 HK-BAT Original operating instructions 01/2022 Time & date Time of day Extras > < Flap opener Date > Time & date < Date Extras > < Time of day Extras Language > Attraction light <...
