TECHNICAL SPECIFICATION
VIDEO
Format
DVI-I Female
Video Resolution
Up to 2048 x 1536
Video Bandwidth
165 MHz
Input Interface (TX)
(1) DVI-I Female
Output Interface (RX)
(1) DVI-I Female
Max. data rate
6.75 Gbps (2.25 Gbps Per Lane)
Compliance
HDCP Compatible
Max distance
Up to 10 m
OTHER
External 100-240 VAC/5VDC4A
Power
@ 20 W
Dimensions
3.5" W x 1.6" H x 9.8" D
Weight
2.1 lbs
Operating Temp.
0-50 °C (32-122°F)
Storage Temp.
-20-60 °C (-4-140 °F)
Humidity
Up to 95%
WHAT'S IN THE BOX
PART NO.
Q-TY DESCRIPTION
DVS-8P
1
1 IN 8 OUT DVI Splitter
PS5VD4A
1
PS5VD4A Power Supply
Quick Start Guide
1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

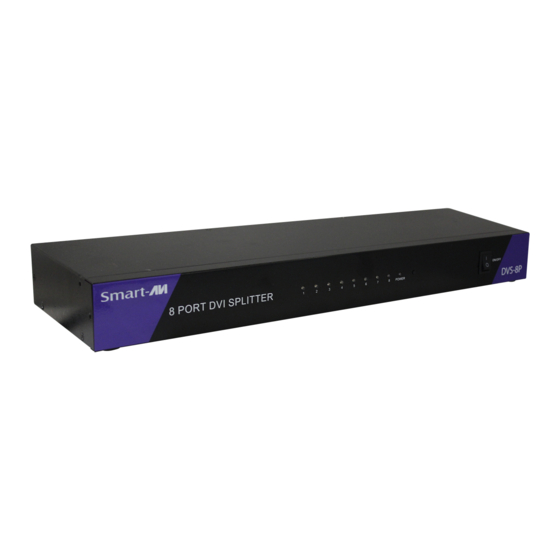

DVS-8P
1 IN 8 OUT DVI Splitter
THE DVI-I 8 PORT SPLITTER
ALLOWS YOU TO USE
A SINGLE PC/MAC TO DISPLAY
IDENTICAL IMAGES ON
MULTIPLE MONITORS.
Quick Start Guide
