Summary of Contents for BRG CBS4560
- Page 2 Parts Checklist ______________________________________ Unbox and inspect all parts of your BRG Carillon System. You should have received: All-in-one Carillon Computer with desktop speakers, keyboard, mouse, mousepad, and power cord USB sound card RCA “Y” cable RCA to XLR adapter DA1000 3200 watt amplifier with power cord Speakon adapter with “pigtail”...

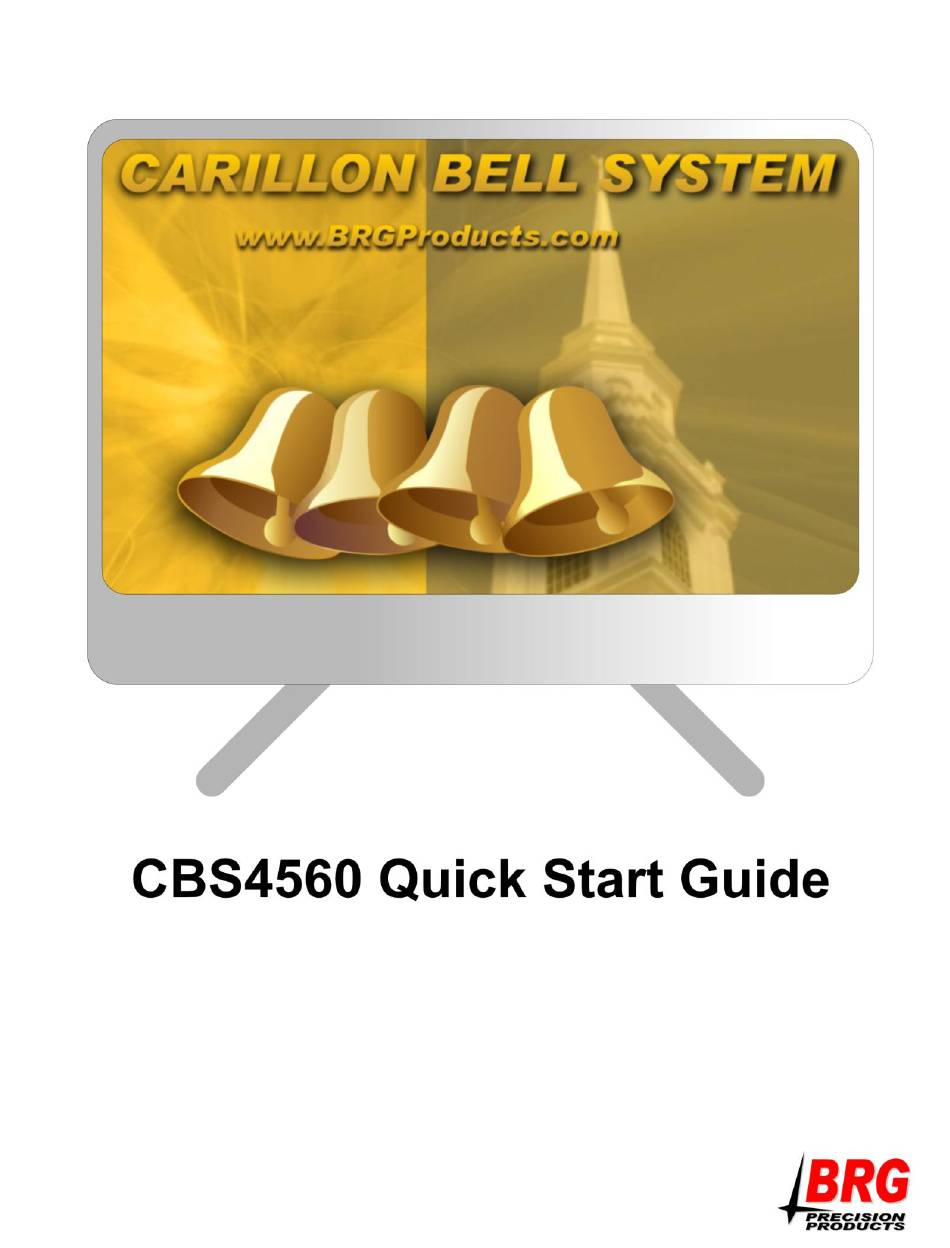

- Page 3 CBS4560 Quick Start Guide ©2022...
- Page 4 Next, wire the Junction Box. The Junction Box will have two terminal blocks labeled “RED (+)” and “BLACK (-).” You will connect all positive wires to the block marked “RED (+)” and all negative wires to “BLACK (-).” CBS4560 Quick Start Guide ©2022...
- Page 5 Strip back ¼ to ½ inch of each wire exposing the core. Use a small screwdriver or similar tool to open each terminal by pushing straight back on the corresponding white tab. This will open the terminal and you can place the stripped end of the wire through. CBS4560 Quick Start Guide ©2022...
- Page 6 DO NOT CONNECT THE COMPUTER TO A NETWORK OR THE INTERNET DO NOT INSTALL ANY SOFTWARE ON THE COMPUTER UNLESS INSTRUCTED BY BRG TECHNICAL SUPPORT DO NOT SET A PASSWORD FOR THE COMPUTER DO NOT PUT THE COMPUTER TO SLEEP THE CARILLON...
- Page 7 Desktop Speakers to the included power strip. Make sure the switch on the power strip is in the “ON” position. You should see a red light on the Relay, as well as power to the desktop speakers. Step 5: Turn on the computer. CBS4560 Quick Start Guide ©2022...
- Page 8 Wire nut the red and black speaker wire from the junction box to the Speakon cable “pig tail.” NOTE: The black wire with the texture or without writing on the “pig tail” is the negative (black). CBS4560 Quick Start Guide ©2022...
- Page 9 Once set, the amplifier will shut off on its own. Leave everything powered on and the preprogramed bell schedule should automatically play. Thank you!!! ______________________________________ We hope you enjoy your BRG Carillon System. If you have any questions, comments, or concerns do not hesitate to reach out by calling 1.800.295.0220 CBS4560 Quick Start Guide ©2022...
