Summary of Contents for Seada SDC-AV4K

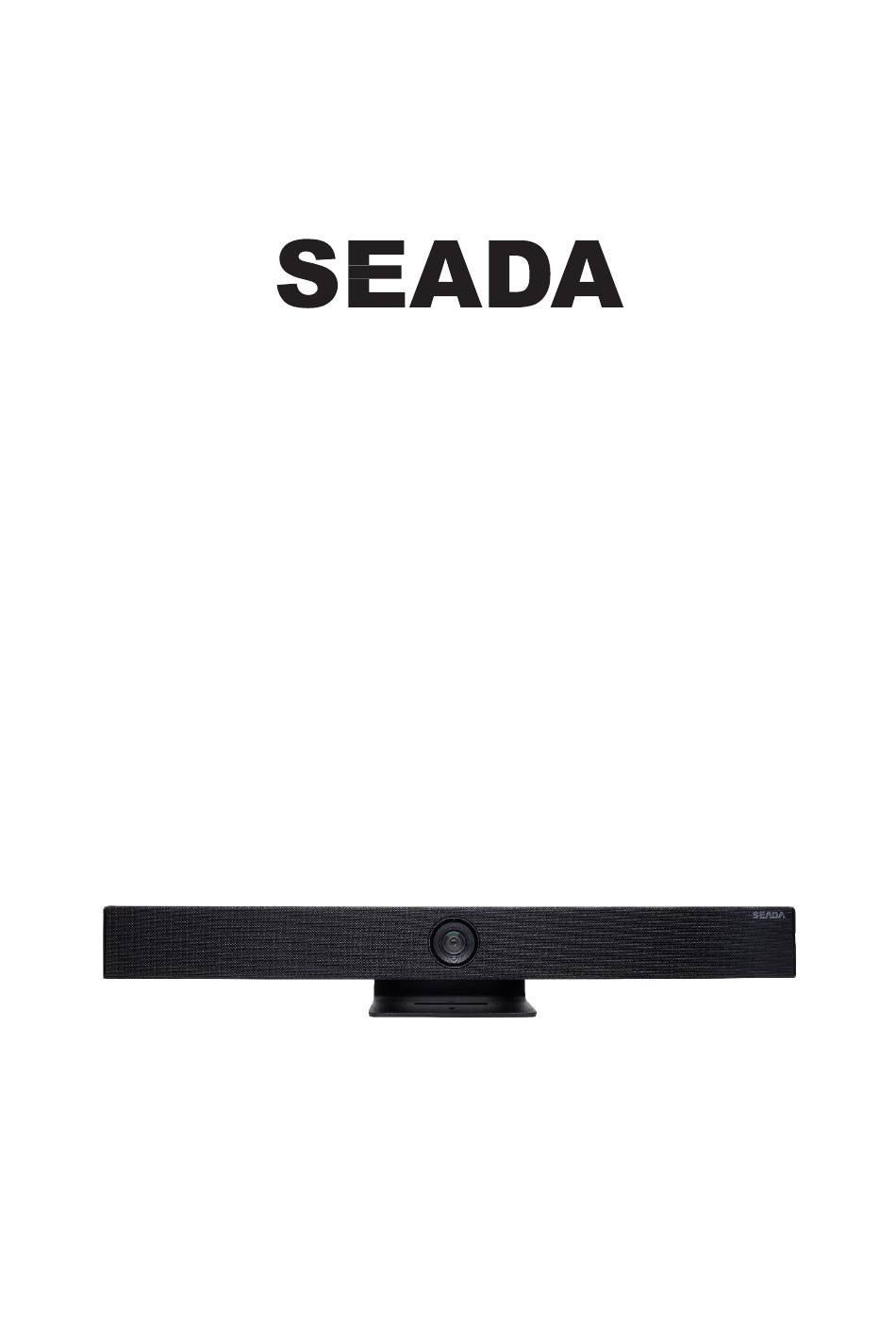

- Page 1 S h o w i n g t h e W o r l d SDC-AV4K All-in-One Video Bar User Manual V1.0...
- Page 2 Attentions This manual introduces function, installation, and operation for All-in-One Video Bar SDC-AV4K in details. Please read this manual carefully before installation and use. 1. How to use To prevent damage to this product or any product connected to it, this product can only be used within the specified range.
-
Page 3: Table Of Contents
Contents 1. QUICK INSTALLATION INSTRUCTIONS ...................... - 1 - 1.1 P ..............................- 1 - RODUCT NTERFACE 1.2 P ................................- 1 - RODUCT 2. PRODUCT OVERVIEW ............................ - 2 - 2.1 P ............................. - 2 - RODUCT NTRODUCTION 2.1.1 Dimensions ..............................- 2 - 2.1.2 Accessories .............................. -
Page 4: Quick Installation Instructions
All-in-One Video Bar SDC-AV4K User Manual 1. Quick Installation Instructions 1.1 Product Interface Figure 1.1 Product Interfaces 1. Speaker 4. Power Switch 7. USB 3.0 2. Lens 5. Power 8. Bracket 3. Built-in Mic 6. Line in 1.2 Product Use 1) Installation: Fix the device to the wall, over the display screen or directly put it on the desktop. -
Page 5: Product Overview
SDC-AV4K All-in-One Video Bar User Manual 2. Product Overview 2.1 Product Introduction 2.1.1 Dimensions Figure 2.1 Dimensions 2.1.2 Accessories Standard accessories in the box Download Card 5m USB 2.0 Cable Aaccessories Remote Control 12V Power Adapter Wall Bracket - 2 - Website: www.seada.co.uk... -
Page 6: Product Features
SDC-AV4K All-in-One Video Bar User Manual 2.2 Product Features SDC-AV4K features with compact design, crystal clear audio and excellent video quality, and is an ideal solution for small and medium-sized meeting rooms. The product uses advanced AI intelligent algorithms and integrates multiple AI intelligent framing technologies such as facial detection, sound positioning, and voice tracking. -
Page 7: Technical Parameters
SDC-AV4K All-in-One Video Bar User Manual 2.3 Technical Parameters Module Features Description Sensor 1/2.8-inch 8-megapixel high quality HD CMOS sensor Camera Angle 120°(D)/107.2°(H)/74.1°(V) Video Camera Digital Zoom Resolution 4K/30 downward compatibility Auto Framing Face detection & sound location & voice tracking... -
Page 8: Product Use
SDC-AV4K All-in-One Video Bar User Manual 3. Product Use 3.1 Remote Instructions - 5 - Website: www.seada.co.uk Email: sales@seada.co.uk... -
Page 9: Menu Settings
SDC-AV4K All-in-One Video Bar User Manual 3.2 Menu Settings 3.2.1 Main Menu Press [MENU] button in MJPG, YUY2, NV12 or H264 compression encoding formats. 1) Language Move the pointer to (Language) in the main menu, press 【← →】 to select the language. - Page 10 SDC-AV4K All-in-One Video Bar User Manual 2) Setup Move the pointer to (Setup) in the main menu, press [HOME] to get into the exposure page as shown below. Image style: Default/Normal/Clarity/Bright/Soft Auto Framing: Open/Close Max Framing: 3X/4X/5X Auto Framing Sen: High/Low/Medium...
- Page 11 SDC-AV4K All-in-One Video Bar User Manual Smart mode: When the angular position of different sound sources differs greatly, the movie mode screen switching method is adopted; when the angular difference is small, the pan mode screen switching method is adopted.
- Page 12 SDC-AV4K All-in-One Video Bar User Manual 4) Color Move the pointer to (Color) in the main menu, and press [HOME] to get into the color page, as shown below WB Mode: Auto, Manual, Onepush, VAR Saturation: 0-50 AWB Sensitivity: High, Medium, Low (valid only in Chroma (Hue): 0～8...
- Page 13 SDC-AV4K All-in-One Video Bar User Manual 5) Image Move the pointer to (Image) in the main menu, and press [HOME] to get into the image page, as shown below. Brightness: 0-100 Contrast: 0-100 Sharpness: 0-15 Flip-H: On/Off Flip-V: On/Off B&W Mode: Color, Black & White Gamma Curve: Default.0.34.0.39.0.47.0.50...
- Page 14 SDC-AV4K All-in-One Video Bar User Manual Note: 2D noise reduction is based on the analysis of individual video frames, whereas 3D noise reduction also analyses the differences between subsequent video frames to adapt the pixels and improve image fidelity. 7) Version Move the pointer to (version) in the main menu.
-
Page 15: Maintenance And Troubleshooting
SDC-AV4K All-in-One Video Bar User Manual 4. Maintenance and Troubleshooting 4.1 Product Maintenance 1) If camera is not used for long time, please turn off power adapter switch and AC plug. 2) Use soft cloth or tissue to clean the camera cover.
