Summary of Contents for iBell CV50-81

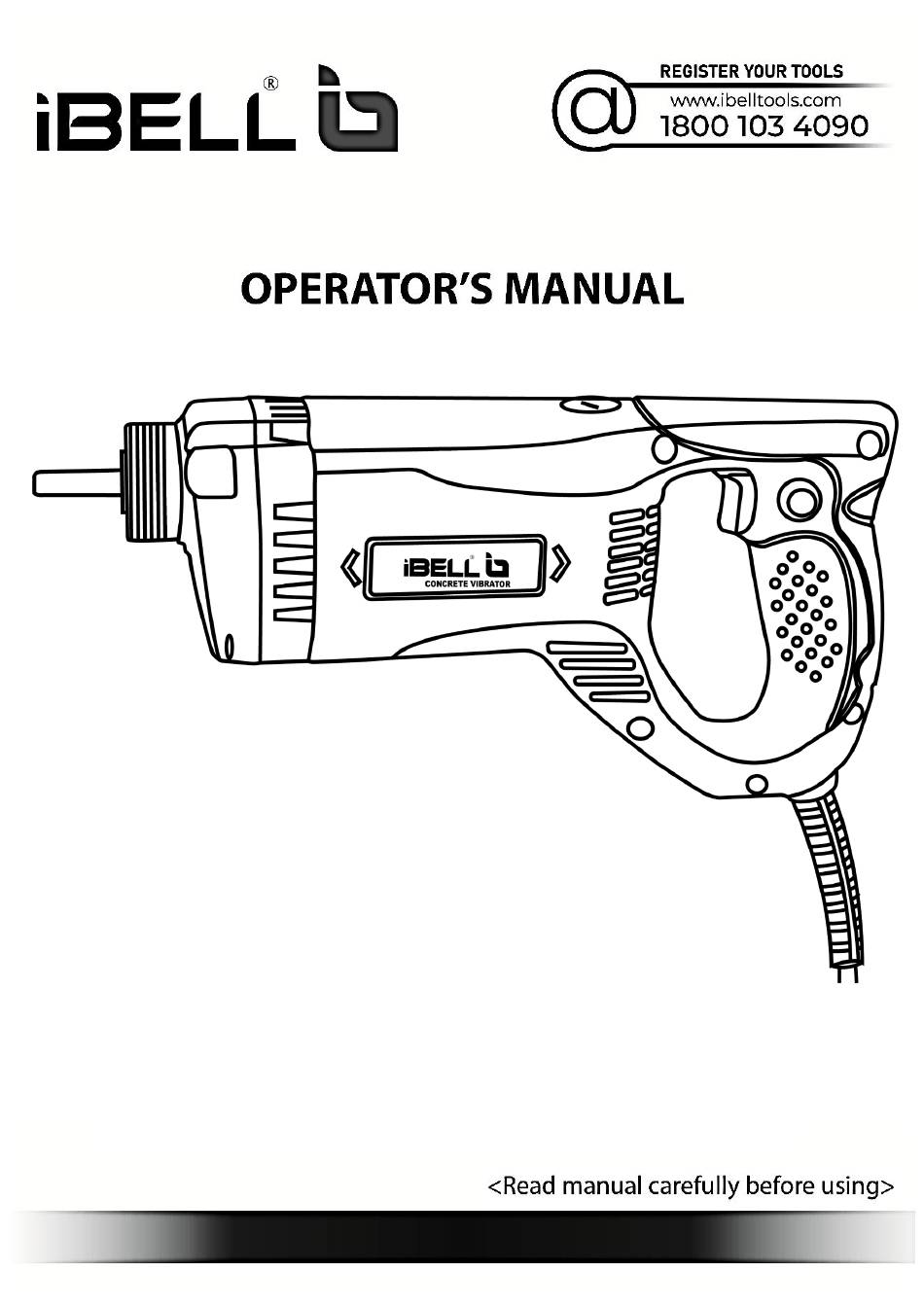

- Page 1 CONCRETE VIBRATOR CV50-81...
-
Page 3: Table Of Contents
1. GENERAL POWER TOOL SAFETY WARNINGS ___________ 2. CONCRETE VIBRATOR SAFETY WARNINGS ____________ 3. PRODUCT SPECIFICATIONS ____________________________ 4. INTENDED USE _________________________________________ 5. PRODUCT OVERVIEW __________________________________ 6. PRODUCT FUNCTIONS AND ASSEMBLY ________________ 7. GENERAL OPERATION _________________________________ 8. TROUBLESHOOTING ___________________________________ IBL CV50-81... -
Page 4: General Power Tool Safety Warnings
Keep it away from heat, oil, sharp edges or moving parts. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. IBL CV50-81... - Page 5 When servicing a power tool, use only identical replacement parts. Follow instructions in the maintenance section of this operator’s manual. Use of any unauthorized parts or failure to follow maintenance instructions may create a risk of shock or injury. IBL CV50-81...
- Page 6 Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use. Danger of injury and property damage caused by other objects or due to natural reactions or calamities. IBL CV50-81...
-
Page 7: Concrete Vibrator Safety Warnings
When the vibrator is not in use, store it in a dry, out of the reach of children. Inspect the vibrator for good working condition prior to storage and before re-use. If the machine needs repair beyond routine maintenance, contact an authorized service representative. IBL CV50-81... -
Page 8: Product Specifications
(0.9m) and the concrete’s workability. The product must be fully assembled before WARNING! operation! Do not use a product that is only partly assembled or assembled with damaged parts! Do not connect the product to power supply before it is completely assembled! IBL CV50-81... -
Page 9: Product Overview
PRODUCT OVERVIEW 1. Spindle 2. Carbon Brush Compartment 3. ON/OFF Switch 4. Switch Lock ON Button Vibration Needle/Rod IBL CV50-81... -
Page 10: Product Functions And Assembly
Check that the ON/OFF trigger switch is switched OFF and don’t connect the plug yet before installing the attachment. Do not lubricate the spindle. Put the flexible shaft (needle) on the spindle and screw to the threads. No tools are required. IBL CV50-81... -
Page 11: General Operation
For Walls and columns, Pour concrete to approx. 100 cm. Lower the vibrator into the formwork. Pull the poker-vibrator slowly out of the concrete and move it to the next spot. Now ready for the following pour of approx. 100 cms of concrete. IBL CV50-81... - Page 12 Clean the ventilation vents in the front and back part of the converter periodically to avoid overheating. Regularly inspect all mounting screws and ensure that they are properly tightened; if any of the screws loosen, tighten them immediately. Failure to do so could result in personal injury. IBL CV50-81...
-
Page 13: Troubleshooting
Only perform the steps described within these WARNING! instructions! All further inspection, maintenance and repair work must be performed by an authorised service centre or a similarly qualified specialist if you cannot solve the problem yourself! IBL CV50-81... - Page 14 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Do not dispose this product by normal household waste, but take it to a collection point and recycling of electrical and electronic equipment.
