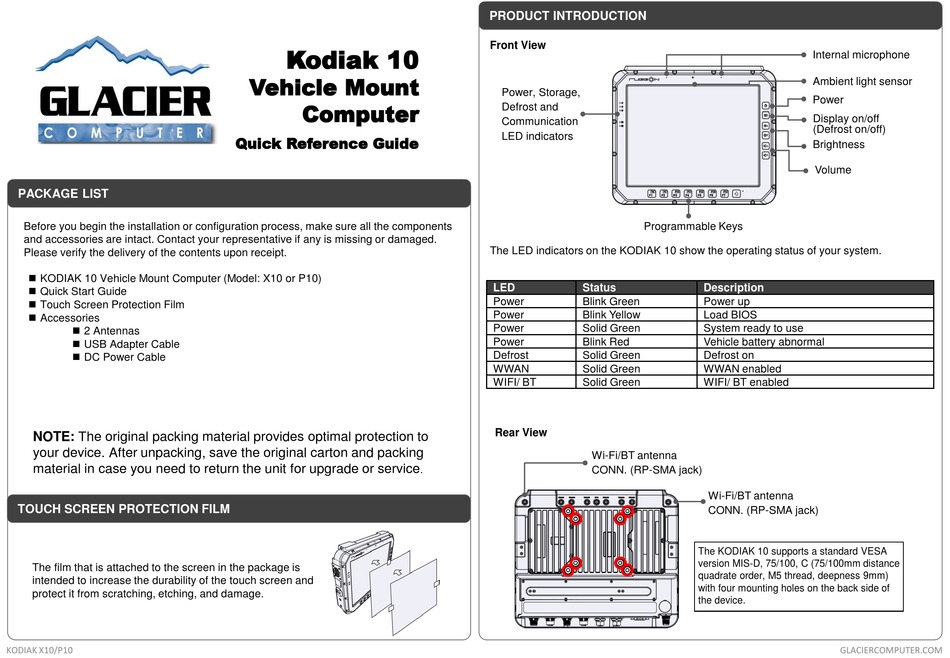

Glacier KODIAK 10 Series Quick Reference Manual

PACKAGE LIST
Before you begin the installation or configuration process, make sure all the components
and accessories are intact. Contact your representative if any is missing or damaged.
Please verify the delivery of the contents upon receipt.
◼ KODIAK 10 Vehicle Mount Computer (Model: X10 or P10)
◼ Quick Start Guide
◼ Touch Screen Protection Film
◼ Accessories
◼ 2 Antennas
◼ USB Adapter Cable
◼ DC Power Cable
NOTE: The original packing material provides optimal protection to
your device. After unpacking, save the original carton and packing
material in case you need to return the unit for upgrade or service
TOUCH SCREEN PROTECTION FILM
The film that is attached to the screen in the package is
intended to increase the durability of the touch screen and
protect it from scratching, etching, and damage.
KODIAK X10/P10
Kodiak 10
Vehicle Mount
Computer
Quick Reference Guide
PRODUCT INTRODUCTION
Front View
Power, Storage,
Defrost and
Communication
LED indicators
The LED indicators on the KODIAK 10 show the operating status of your system.
LED Status
Power Blink Green
Power Blink Yellow
Power Solid Green
Power Blink Red
Defrost Solid Green
WWAN Solid Green
WIFI/ BT Solid Green
Rear View
Wi-Fi/BT antenna
. CONN. (RP-SMA jack)
Internal microphone
Ambient light sensor
Power
Display on/off
(Defrost on/off)
Brightness
Volume
Programmable Keys
Description
Power up
Load BIOS
System ready to use
Vehicle battery abnormal
Defrost on
WWAN enabled
WIFI/ BT enabled
Wi-Fi/BT antenna
CONN. (RP-SMA jack)
The KODIAK 10 supports a standard VESA
version MIS-D, 75/100, C (75/100mm distance
quadrate order, M5 thread, deepness 9mm)
with four mounting holes on the back side of
the device.
