Operation Manual

2015/10/13

www.BlueEyes.tw

Table of Contents

Need help?

Do you have a question about the Livebox and is the answer not in the manual?

Questions and answers

Summary of Contents for BlueEyes Livebox

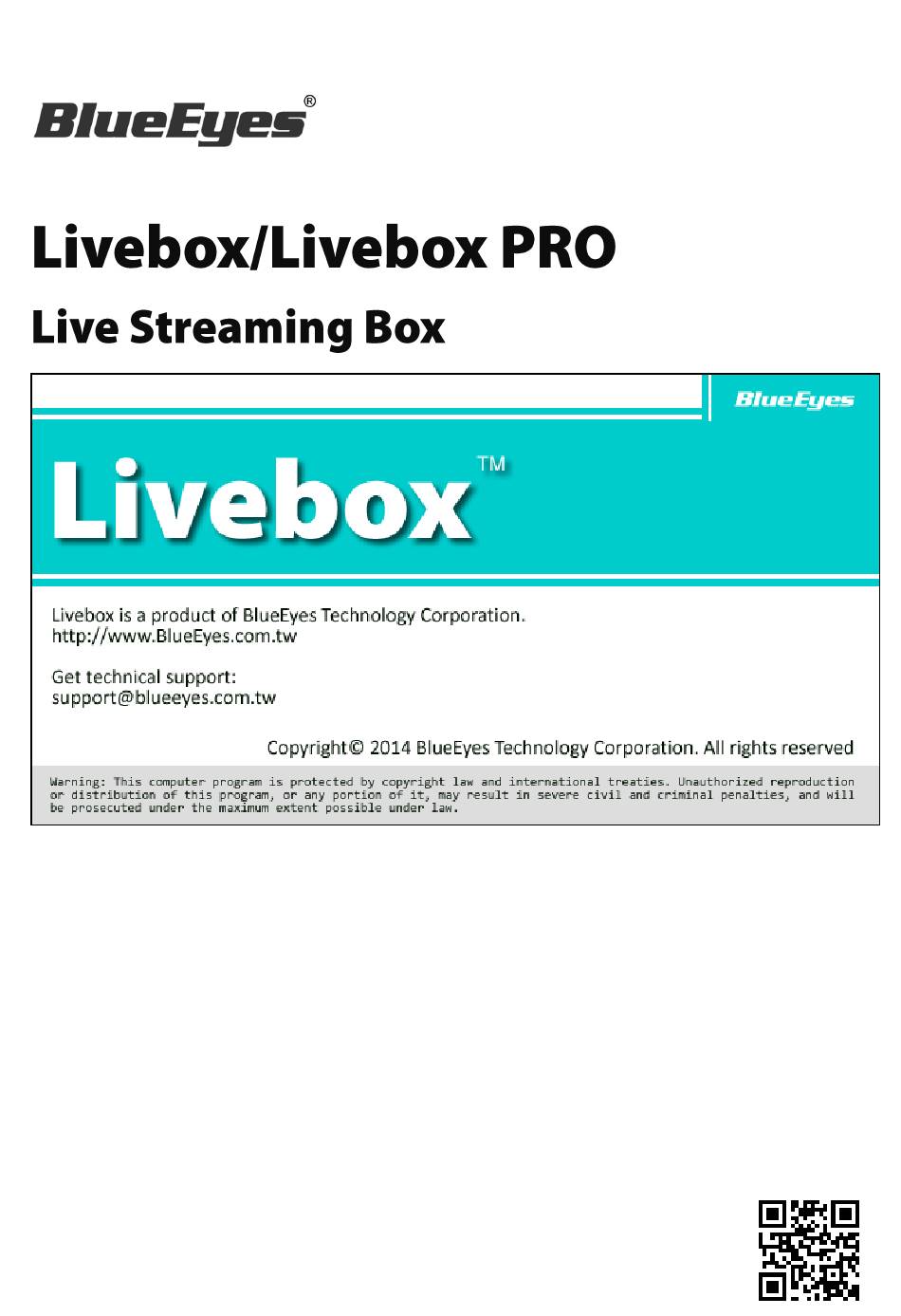

Page 1 Operation Manual 2015/10/13 www.BlueEyes.tw...
Page 2 If you want to get the latest product information, operation manual, firmware, or you have any question to the products of BlueEyes Technology, please contact your local agent or go to the official website of BlueEyes Technology for further information.
Page 3: Table Of Contents
3.4 Channel monitor ..........................19 3.5 Log ..............................20 4. Q&A ..........................21 【Q1】How to shut down or reboot Livebox PRO? ................21 【Q2】Can Livebox PRO with CRT TV? ....................21 【Q3】How to connect with VGA monitor？ ..................21 【Q4】Can I use remote control for Livebox PRO? ................21 【Q5】How can I have many spilt screens? ..................
Page 4: Introduction
1. Introduction 1.1 Notice before you read The manual can help you understand the function and operation methods of Livebox  The company suggested you that if you store all written records of important information, in some cases, it may cause data loss and change in the electrical storage.
Page 5 For stubborn stains, clean with a soft cloth moistened with water, wring clean, and then wipe the machine with a soft, dry cloth.  Do not use any solvents, such as thinner and gasoline solvents, as these solvents can damage the machine’s surface. Moisture proof BlueEyes Technology www.BlueEyes.tw...
Page 6 – Liquid spilled into the machine or something enters in the body – After the machine get wet because of the rain or water – The machine fall from high place or other reasons to cause damage. BlueEyes Technology www.BlueEyes.tw...
Page 7: Size Of Livebox Pro
 Do as the manual but didn’t work 1.4 Size of Livebox PRO 1.5 Structure The structure of Livebox PRO (One-way): BlueEyes Technology www.BlueEyes.tw...
Page 8: Installation
1.6 Installation Please have Cat.5 / Cat.6 network cable (connected with network switch) insert to the network interface of Livebox, and connected to HDMI cable. After electrified for 30 seconds of Livebox, you will see the real-time video of iCam.
Page 9 Link Light on when connection with internet. Active Light shining when saving system. --back-- Illustrate Words DC IN Connect to adapter. Connect to LAN. HDMI Connect HDMI to monitor. For USB. Illustrate Words Connect to USB mouse. BlueEyes Technology www.BlueEyes.tw...
Page 10 SD card For SD card. Reset Restore the setting. BlueEyes Technology www.BlueEyes.tw...
Page 11: Livebox Settings
Please prepare a mouse with USB interface before doing the related settings of Livebox. Please use mouse to do the related settings of Livebox. Insert the USB of mouse to the left side of Livebox. There has a USB USB interface on the left side.
Page 12: Ip Setting
After computer starts up, please click , and choose 【SETTING】 to modify the settings of Livebox, such as: Password, connect, AP ssid, STATIC IP, GATEWAY, SUB MASK, title, time…etc. Please click【APPLY】 if you want to save the settings. If you do not want to save the settings, please click 【CANCEL】.
Page 13 STATIC IP Static IP of Livebox, e.g. 192.168.1.51 GATEWAY Gateway of Livebox, e.g. 192.168.1.1 SUB MASK Sub Mask of Livebox, e.g. 255.255.255.0 LIVE Can set as 「Real Time」、「General」、「Smooth」, default is 「Smooth」 Title Shows the name of channels. You can turn on or off.
Page 14: Channels Setting
PORT Setting connection source of port number. Account Account for log in. And it also is the account for iCam or SES. Password Password for log in. And it also is the password for iCam or SES. BlueEyes Technology www.BlueEyes.tw...
Page 15 Types for video, include iCam v2, iCam v3, SES, and SES iFollow Class number. You can select class number for live broadcasting. Channel 「Type」「SES」 You can select the channels of iFollow that you want to have broadcasting. Test Connect 「Type」「SES iFollow」 BlueEyes Technology www.BlueEyes.tw...
Page 16: Channel
Shows the number of images and audio packets/ per second Select the channel. You can have some related settings, such as Livebox, channels, and LOG. Shows the time of the channel that you select. If you select iCam’s channel, the time will be iCam’s time...
Page 17: Livebox Pro Setting
The connecting way of Livebox, include Ethernet and Wifi. Connect=Ethernet“ means Livebox PRO’s Access Point(AP) AP ssid AP SSID is the name for user to connect to Livebox PRO, e.g.: Livebox_001, Livebox_002 SSID The name for Livebox PRO to connected to Access Point(AP).
Page 18: Channels Setting
Enable/ close the function of play loop Jump Second of loop channel, including 「20」,「30」,「40」,「50」 and 「60」. The preset IP address for Livebox PRO is 192.168.1.51, and please use virtual keyboard to key in the information. Please use Static IP, because Livebox PRO cannot accept domain or DHCP.
Page 19 Types for video, include iCam v2, iCam v3, SES, and SES iFollow. When camera Type choose SES, you can choose live classroom. Channel When camera Type choose SES iFollow, you can choose iFollow group. Test for connection status, success/ failure BlueEyes Technology www.BlueEyes.tw...
Page 20: Channel Monitor
Shows the number of images and audio packets/ per second. Select the channel. You can have some related settings, such as Livebox, channels, and LOG. Enable/ close the function of loop. Shows the time of the channel that you select. If you select iCam’s channel, the time will be iCam’s time...
Page 21: Log
If your Camera Type choose iCam v2 and iCam v3, the time will be iCam’s time. If your Camera Type choose SES, or SES iFollow, the time will be SES’s time. 3.5 Log You can check the record in “Log”. BlueEyes Technology www.BlueEyes.tw...
Page 22: Q&A
Google Play to download the APP (Livemote). 【Q5】How can I have many spilt screens? 【Answer】 The output of Livebox PRO is HDMI. If you want to split the monitor to 4 parts, 9 parts, or more. We advise you to buy video multiplexer. Or you can get more information about video multiplexer at this website.
Page 23 Note BlueEyes Technology www.BlueEyes.tw...
