Summary of Contents for BAS-IP SH-45TE
- Page 1 USER MANUAL SH-45TE TOUCH-FREE BUTTON...

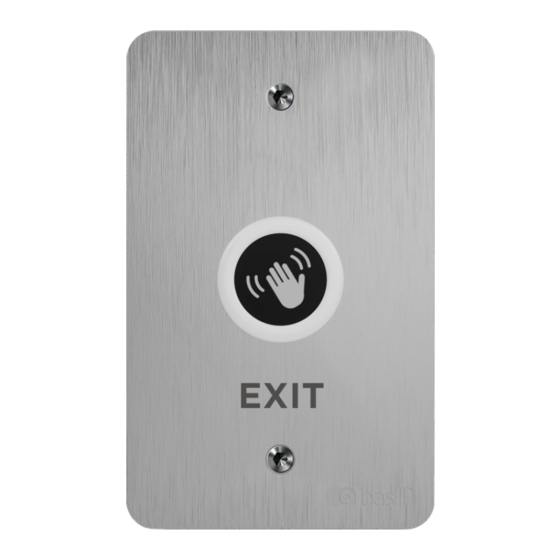

- Page 2 Diameter: 59 mm. Wheelbase for mounting screws: 83.5 mm. Distance (radius) from the center to the screw hole: 41.75 mm. TOUCH-FREE BUTTON SH-45TE Full User Manual wiki.bas-ip.com Device description No-touch exit button with a resource of more than 100 million clicks.
- Page 3 After verifying the device's completeness, you can switch to the exit button connection. IMPORTANT It is strictly forbidden to supply more than + 12.2V to the SH-45TE button. Do not load the output contact of the button with a current exceeding 100 mA.
- Page 4 Mechanical mounting Before mounting the exit button, a hole or recess in the wall with diameter 60 mm must be provided. It is also necessary to provide supply of a power cable, additional modules. Exit button Screws Niche Exit button 70 mm 19.5 mm EXIT...
- Page 5 EAN: 5060514913253 (BLACK) EAN: 5060514913239 (SILVER) Warranty The warranty card number Model name Serial number Seller name With following stated terms of warranty is familiar, functional test was performed in my presence: Customer signature Warranty conditions The warranty period of the product — 36 (thirty-six) months from the date of sale.
- Page 6 Notes...
- Page 7 EAN: 5060514913253 (BLACK) EAN: 5060514913239 (SILVER) Notes...
- Page 8 www.bas-ip.com...
