SanaLoma Laser UFO Dice Tower Assembly Instructions

To assemble the UFO Dice Tower, follow each section using the parts indicated. You will need glue for some parts and some pieces may fit tightly, so keep
the glue and sandpaper handy and have fun!
Section 1 - Bottom Tray
dungeon
dice tray
ufo tower
spaceship
alien cows
beam up
dtwenty
dragons
Section 2 - UFO Legs
Long tab
l l l l l l
Alien Text
e e e e e e
g g g g g g
on outside.
Short tab
Section 3 - Cow
c
Glue the Cow together next. The piece with the tail is the center. The
two outside pieces have alien text that goes to the outside. Be sure
the legs are flat on the bottom to allow it to stand. Set aside to dry.
SanaLoma
This kit is made from 3mm (1/8") Baltic Birch Plywood
Laser
and has been designed for persons over the age of 12.
LLC
Cutting and Engrving at LightSpeed
www.SanaLomaLaser.com

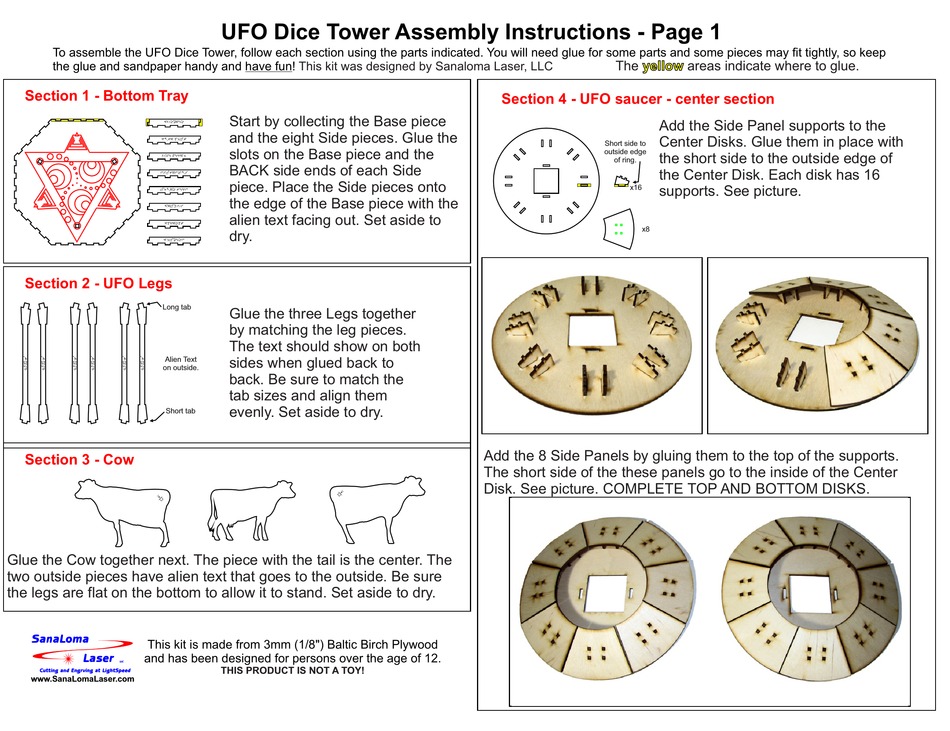

UFO Dice Tower Assembly Instructions - Page 1
This kit was designed by Sanaloma Laser, LLC
Start by collecting the Base piece
and the eight Side pieces. Glue the
slots on the Base piece and the
BACK side ends of each Side
piece. Place the Side pieces onto
the edge of the Base piece with the
alien text facing out. Set aside to
dry.
Glue the three Legs together
by matching the leg pieces.
The text should show on both
sides when glued back to
back. Be sure to match the
tab sizes and align them
evenly. Set aside to dry.
c
THIS PRODUCT IS NOT A TOY!
The yellow
Section 4 - UFO saucer - center section
Add the Side Panel supports to the
Center Disks. Glue them in place with
Short side to
outside edge
the short side to the outside edge of
of ring.
the Center Disk. Each disk has 16
x16
supports. See picture.
x8
Add the 8 Side Panels by gluing them to the top of the supports.
The short side of the these panels go to the inside of the Center
Disk. See picture. COMPLETE TOP AND BOTTOM DISKS.
areas indicate where to glue.
